Translation

Translation, in this context, is defined as taking a local currency amount and applying a foreign currency rate to arrive at a translated value in a given reporting currency. This chapter covers common foreign currency capabilities that are available to you in OneStream; by the end of the chapter, you will be equipped with a general understanding of various translation-related needs.

First, we will cover what and how to use rate types conceptually as part of the Background section of this chapter, and then how rates are used in OneStream as part of the Foundational FX Properties section.

Specifically, in Foundational FX Properties, we will cover the locations within the application where you would consider updating settings to allow for certain translation capabilities, such as handling intermediary parents, currency translation adjustment (CTA), overrides, and input currencies.

Then, we will combine what we learned as a use case on the pros and cons when you want to implement the ability to report actuals using prior year rates. Finally, we will end the chapter with various ways to load and view FX rates as part of the Loading FX Rates and Viewing FX Rates sections.

Background

Foreign currency exchange (FX) rates are rates used to convert one currency to another. This is common for companies that have various currency reporting requirements. For the purposes of this chapter, our terminology will be:

• Functional currency, which will be used synonymously with local currency. Functional currency is defined as the main currency in which a company conducts its business. The currency setting on the entity member within OneStream is commonly referred to as “local currency”, which corresponds to functional currency.

• Transactional currency, which will be used synonymously with input currency. Transactional currency is defined as the currency for payments, and the transactional currency can be different from the functional currency of the company. It is most common to have transactional currency captured in the ERP (Enterprise Resource Planning) system, while OneStream handles the functional currencies for consolidation and close processes.

• Reporting currency is the currency used to prepare financial statements. Within OneStream, the reporting currency is typically the top parent’s currency (e.g., USD), while the subsidiaries or remaining companies will commonly use their local currencies for reporting. This chapter will cover the implications of using C#Local versus enabling every currency for reporting purposes.

• Periodic is defined as the activity that happens for a given period. For the purposes of this chapter, the examples provided will be in relation to a given month in a monthly application.

Direct Versus Periodic Rule Types

In OneStream, we have rule types to dictate how an account should be translated. The rule types are Direct and Periodic. These rule types are set on the cube(s) or scenario(s) and used in conjunction with rate type settings to determine account translation behavior.

Direct translation refers to the translation of ending balances. Periodic refers to the translation of the periodic (e.g., monthly) activity amounts, which are then appended to the existing amounts. Direct translation is commonly applied on balance sheet accounts, while Periodic translation is applied to income statement accounts.

Periodic (usually P&L-related)

Figure 5.1

Direct (usually balance sheet-related)

Figure 5.2

Rate Types

FX rates can be tracked in a variety of ways as rate types. To put this into context, we can start with a non-business-related example.

Let’s say you are traveling for your next vacation in a European country that uses euros, and you are based in the United States. In preparation for your trip, you pull up the latest currency rates for that country. Each day, the rate changes a little bit; this is the daily rate. You decide that you need to exchange your US dollars to euros at some point and decide that – at the end of the month – you will exchange your dollars for whatever the rate is on that end-of-month day. This end-of-month rate is commonly referred to as the ending rate or closing rate. Ending rate or closing rate or spot rate will be used synonymously within this chapter. You can think of closing rate as a rate type within OneStream.

The OneStream application comes with out-of-the-box FX rate types:

• ClosingRate

• AverageRate

• OpeningRate

• HistoricalRate

ClosingRate is commonly used for balance sheet account translations, while AverageRate is used for P&L account translations. OpeningRate, depending on your company’s circumstances, could be used for related acquisitions, and HistoricalRate is used for historical rate overrides in lieu of historical balance amount overrides.

Depending on your company’s requirements, you might need to add additional translation capabilities that may involve adding new FX rate types. For example, there may be the need for new FX-related reporting, such as actuals at plan rates, actuals at last year’s actuals rates, plan at last year’s actual rates, etc.

You can create additional FX rate types to represent PlanRate, PlanAverageRate, ForecastRate, etc., via the FX Rates button.

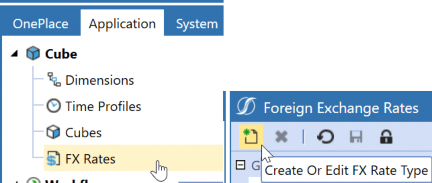

Figure 5.3

If you were to opt for this, keep in mind the number of scenarios you may need as you update your FX rate types by scenario. Below are some general steps to be aware of if you decide to leverage FX rate types by scenario:

1. Apply the FX rates to the appropriate scenarios and update the scenario settings.

   1. Use Cube FX Settings = False

   2. Rate Type for Revenues and Expenses: [NEW RATE TYPE]

   3. Rule Type for Revenues and Expenses: Periodic

   4. Rate Type for Assets and Liabilities: [NEW RATE TYPE]

   5. Rule Type for Assets and Liabilities: Direct

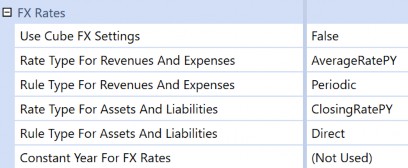

2. After setting Cube FX Settings to False, select your custom FX rate type. In Figure 5.4, the new rate types are AverageRatePY and ClosingRatePY.

Figure 5.4

Foundational FX Properties

This section covers all the FX-related properties found in OneStream. You may find this section useful if translation-related questions or issues come up. Within OneStream, translation-related capabilities are found through a combination of cube properties and metadata properties, set on the Scenario, Account, Entity, and Flow members.

Cube Properties

This section covers FX-related settings found on Cube Properties, the FX Rates section, and the

Cube Translation Algorithm Type setting.

FX Rates

We have a dedicated FX Rates section with settings on the cube to specify how we want to translate our assets and liabilities, as well as our revenues and expenses.

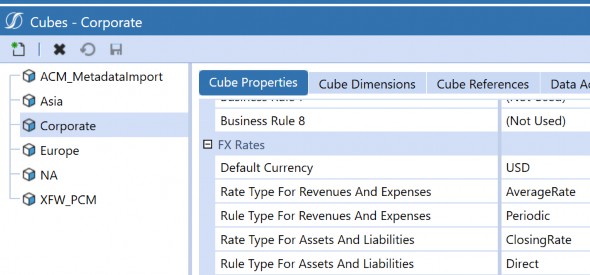

Figure 5.5

On the accounts, we tag each member according to account type (e.g., asset, liability, revenue, expense).

The Account Type and the Switch Type from the Flow member will indicate what rate type and rule type will be used, based on the cube settings above in Figure 5.5 or the scenario settings in Figure 5.7, assuming that cube settings are not used (e.g., Use Cube FX Settings is set to False). OneStream allows for custom translations if these out-of-the-box settings are not sufficient for your processes.

Cube Translation Algorithm Type

The Cube Translation Algorithm Type is a specific setting found on the Cube Properties tab.

There are three choices: Standard, Standard Using Business Rules For FX Rates, and Custom.

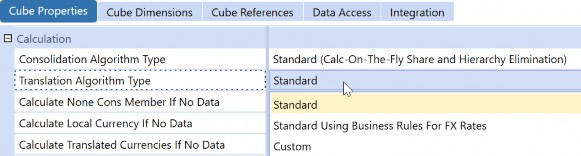

The navigation path is Application > Cubes > Select your Cube. On the Cube Properties tab, scroll down to Calculation:

Figure 5.6

Standard

This is the default out-of-the-box setting. When your cube is set to Standard, the system will use the settings found in FX Rates (part of Cube Properties) with the combination of the metadata properties on Scenario, Account, Entity, and Flow.

Standard with Business Rule

Standard with Business Rule not only tells the system to leverage the settings found in FX Rates (part of Cube Properties) with the combination of the metadata properties on Scenario, Account, Entity, and Flow but also to use a finance rule, which is commonly attached to the cube.

Custom

The translation process will be entirely handled by the business rules assigned to the cube. This means the system will not take the standard settings into consideration unless specified in the business rule. An example of this situation would be the need for an extensive currency analysis, involving a dedicated UD dimension for currencies.

Metadata Properties

This section covers the FX-related properties for metadata. Because every data point is associated with a cube and an intersection, it is important – when it comes to troubleshooting translation-related issues – that you investigate not only the cube properties but also the properties related to the Scenario, Account, Entity, and Flow dimensions.

Scenario

Within the scenario’s Member Properties, there is a dedicated FX Rates section.

• Use Cube FX Settings

o If set to True, subsequent selections are grayed out, and the scenario member will use whatever rate types are assigned at the cube, as represented in Figure 5.7.

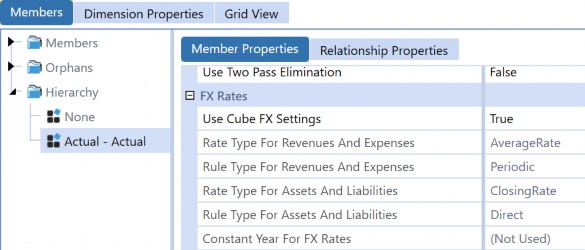

Figure 5.7

Entity

o If set to False, the subsequent selections become available, and you can select what Rate Type and calculation to use for revenue, expenses, assets, and liabilities. This is useful if you opt to use different FX rate types for that scenario.

The common entity setting for FX is Currency. This currency will typically represent the entity’s local currency.

Figure 5.8

There may be instances when you need additional settings adjusted, such as parent entities, which you want to view in a foreign currency, and equity pickup.

Intermediary Parents

For the purposes of this section, an intermediary parent is defined as a parent entity that is not the top consolidated entity, and the intermediary parent’s local currency is not the same local currency as the top consolidated entity or that of the application’s default currency. The reason why this currency distinction is important is that when we have intermediary parents with differing currencies, this can create confusion for users who view the consolidation status of these entities.

Figure 5.9 represents such an example. Eb2_Total_EUR represents the intermediary parent where its local currency is EUR, which is different to the top consolidated entity, Total_USD, and the application default currency of USD.

When a user consolidates at Total_USD, the user may then see that Eb2_Total_EUR and the other intermediary parents, E2_Total_EUR, E2a_Total_EUR have a status of TR,CN.

Figure 5.9

First, we need to cover how OneStream performs calculations and consolidations and how that can create user confusion.

When you perform a calculation on a Data Unit, OneStream will run all business rules attached to the Data Unit’s cube and will run all Member Formulas for the Data Unit’s Scenario Type; this is all performed on the currency specified on the Data Unit. Remember that a Data Unit comprises of Cube, Entity, Parent, Consolidation, Scenario, and Time.

When you perform a consolidation on a parent entity, OneStream will iteratively calculate each child entity at its local currency, translate it to its parent’s currency, and then consolidate the child entity’s values up to the common parents. If you have an application with no rates, there is effectively no out-of-the-box translation.

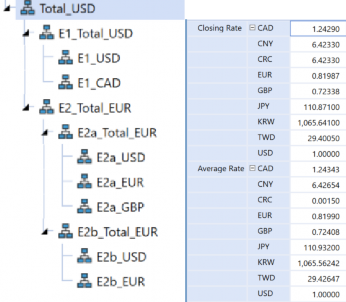

Back to what is presented in Figure 5.9. If we have the following rates in Figure 5.10 and we enter

100 as the local currency amounts in Figure 5.11, what happens?

Figure 5.10

Figure 5.11

If we were to manually calculate the output, we would expect the following:

At E2_Total_EUR:	At E2a_Total_EUR:	At E2b_Total_EUR:
	• E2a_USD (USD to EUR): 81.99 EUR (100/1.2197)	• E2b_USD (USD to EUR): 81.99 EUR (100/1.2197) • E2b_EUR (EUR):
Total at E2_Total_EUR: 477.32 EUR converted to USD	• E2a_EUR (EUR): 100	100 • Total at
is 582.19 USD.	• E2a_GBP (GBP):	Eb2_Total_EUR:
The 477.32 EUR is from	113.34 (100/0.88313)	181.99 EUR
295.33 (E2a_Total_EUR) +	• Total at
181.99 (Eb2_Total_EUR).	E2a_Total_EUR:
	295.33 EUR
At E1_Total_USD: • E1_USD: 100 • E1_CAD: 80.46 (100/1.2429) • Total at E1_Total_USD: 180.46

Figure 5.12

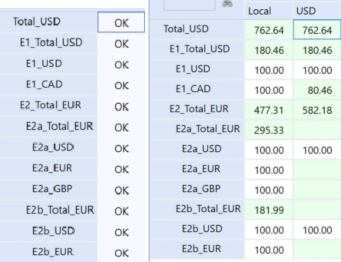

Thus, at Total_USD, we would expect to see 762.65 (582.19 + 180.46) USD. However, when we run a consolidate in OneStream, notice – as per Figure 5.13 – what happens…

Figure 5.13

Although status appears to be OK, the USD values are not populated for the intermediary parents. There are several instances where the USD value is missing, so what has happened?

The answer has to do with the steps associated with a consolidate.

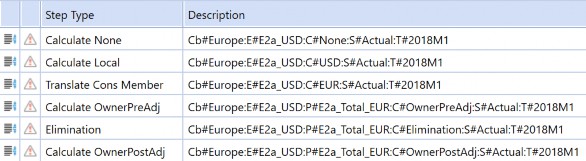

Let’s say you run a consolidate at E#E2a_Total_EUR:C#Local. Here, the system will run six Step Type calculations as presented in Figure 5.14. You can view each of the step types through detailed logging.

Figure 5.14

• Calculate None: kicks off the CalculateNoneConsMember step, which is the

CreateDataUnitCache, which will initiate ReadDataRecordsForDataUnit.

• Calculate Local: CreateDataUnitCache, which will initiate

ReadDataRecordsForDataUnit, Calculate Cons Member, SaveWritableDataCache.

• Calculate Cons Member: this will look familiar as this is the order of operations performed in the consolidation engine, which is part of DUCS (Data Unit Calculation Sequence).

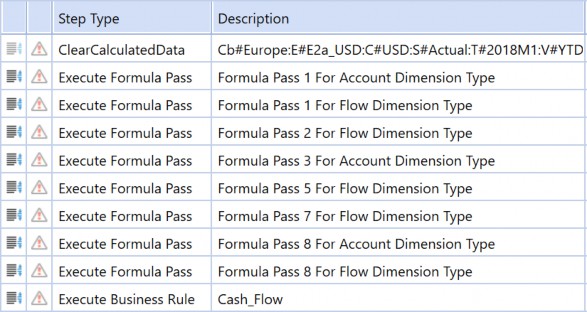

• Notice how Figure 5.15, found in the application’s detailed logging, supports the

DUCS described above.

Figure 5.15

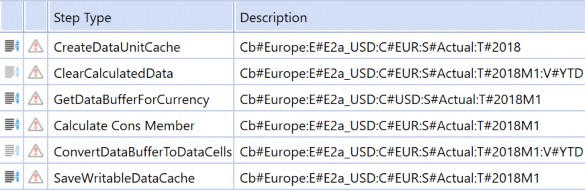

• Translate Cons Member: will go through the same step type iteration as Calculate Local, as presented in Figure 5.16. Within Translate Cons Member is a Calculate Cons Member; the system will go through the same order of operations (DUCS) in the consolidation engine, as presented in Figure 5.17.

Figure 5.16

Figure 5.17

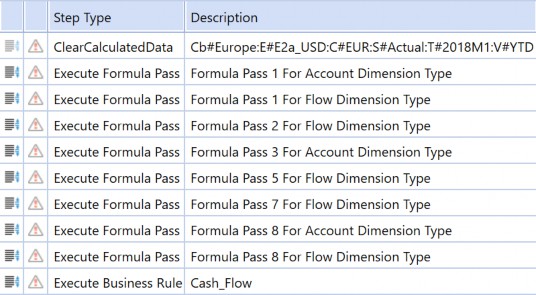

In Figure 5.17, the system is essentially taking E2a_USD:C#Translated as E2a_USD:C#EUR. In other words, at E2a_Total_EUR:C#EUR, the system performs the following:

• Calculate E2a_EUR:C#Local as E2a_EUR:C#EUR

• Calculate E2a_USD:C#Local as E2a_USD:C#USD

• Calculate E2a_GBP:C#Local as E2a_GBP:C#GBP

• Translate E2a_EUR:C#Translated which is E2a_EUR:C#EUR

• Translate E2a_GBP:C#Translated which is E2a_GBP:C#EUR

• Translate E2a_USD:C#Translated which is E2a_USD:C#EUR

Thus, the expected end result will be local calculated and consolidated. Any local currency will be populated in the equivalent reporting currency (e.g., if local is USD, you will see the same amount in USD. If local is EUR, you will see the same amount populated in EUR). Because E2a_Total_EUR’s local currency is EUR and the base members roll up to this parent, the consolidation will translate the base’s local currencies to EUR, as depicted in Figure 5.18.

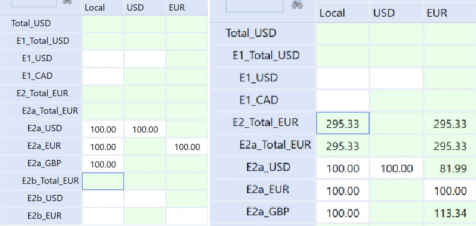

Figure 5.18

If you were to toggle to the Calc Status at C#USD, you would notice that a translation is needed.

Figure 5.19

A Translate or Force Translate will lead to three additional steps:

1. Translate to E2a_EUR:C#USD

2. Translate to E2a_GBP:C#USD

3. Translate to E2a_USD:C#USD

If we have intermediary parents where their local currency is not the same as the top consolidated parent or application default currency, is this a problem? The answer is… it depends, based on who and how users are consuming the data.

• If users will always use C#Local and know that – behind the scenes – the values reflected are the entity’s local currency, then we don’t need to do much.

• If users are viewing the intermediary parents in a different currency – and only that portion of the hierarchy – then it is not so much of a problem on their side. It might be more problematic on the consolidated/corporate side if there is the requirement to have everything in a different reporting currency.

Let’s say that we need everything in a reporting currency of USD. We have a few options (again, this is not an exhausive list, but it should give you a good starting point).

Auto Currency Translation

Auto currency translations can be used for equity pickup calculations when an entity needs to be translated to a sibling holding company’s local currency during a consolidation. The use of auto currency translation with equity pickup requires the use of a custom finance rule that has the equity pickup logic. Auto currency translation settings may also be used to automatically translate certain entities to a specified currency for reporting needs and the only benefit is really at the base entities; if there is a need to look at parent entities in foreign currencies at the consolidated amounts (e.g., eliminations taken into consideration), this setting is not a viable option.

• Be mindful of the number of entities that will use auto currency translation functionality, as this will impact performance on both the calculation/consolidation side as well as on the reporting side.

• Auto currency translation will affect dynamic calculations. For example, if you have A#Headcount as a dynamic calculation, then the output will reflect the translated amount. A better approach for handling calculated accounts that should not be translated is to write it as a stored calculation, using a Member Formula with the appropriate FormulaPass and account type assigned.

To add auto translation currencies:

1. Navigate to Application > Cube > Dimensions > select relevant Entity dimension > select relevant Entity member.

2. On the Member Properties tab, scroll down to Vary by Scenario Type.

3. Click on the ellipse’s icon next to Auto Translation Currencies.

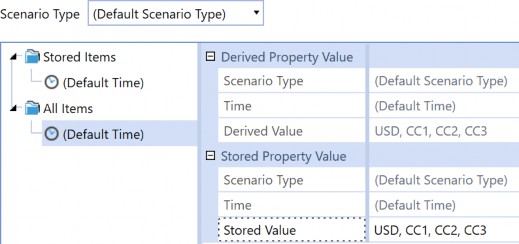

4. If Scenario Type is applicable, then assign by Scenario Type. In the Stored Value row, enter the three-letter currency. Multiple currencies can be separated by a comma.

Figure 5.23

Figure 5.24

Flow

There is a specific setting called Switch Type under the settings section for each Flow member.

If Switch Type is set to False, this tells the system to use the account’s account type to determine which rate type and rule type to use for translations. If Switch Type is set to True for the given Flow member, then the account at this Flow member will have the account type “switched”; in other words, if my account’s account type is Asset and the Flow member’s Switch Type is True, then the system will use the Revenue and Expenses Rate Type and Revenue and Expenses Rule Type for translations.

FX

Commonly, there will be an FX hierarchy within the Flow dimension (highly recommended) to ensure that FX components are captured. This FX node captures the differences in the translation rates (e.g., average rate versus closing rate) between the components of a balance sheet account (e.g., beginning balance, activity, and ending balance).

Flow settings, in my experience (and at a minimum), usually include the following FX members:

1. FXOpen: a Member Formula that calculates the FX on the opening balance.

2. FXMovement: a Member Formula calculated as the difference between current closing rate and current average on the movement amount.

3. FXOverrideBalance: a Member Formula that calculates the FX on ending balances that have been overridden.

4. FXHistOverrideMovement: a Member Formula that calculates the FX on movements that have been overridden.

5. Members under FX will have the following settings:

   1. Switch Sign = False

   2. Switch Type = True

Refer to the Blueprint application for these Flow examples.

Account

The account’s Account Type – in conjunction with the Switch Type on the Flow member – will dictate how translation will be handled based on the FX Rate Type defined in the cube (Application

> Cubes > Select your Cube > on the Cube Properties tab, scroll down to FX Rates) unless otherwise specified in the scenario’s FX rates.

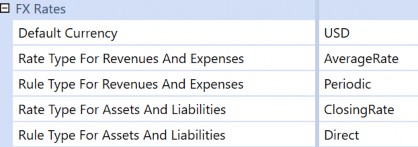

Figure 5.25

In our above Cube Properties example, this means that accounts with account type of Revenue or Expense will use AverageRate and the Periodic calculation, while accounts with account type of Asset or Liability will use ClosingRate and the Direct calculation, assuming that Switch Type on the Flow member is set as False.

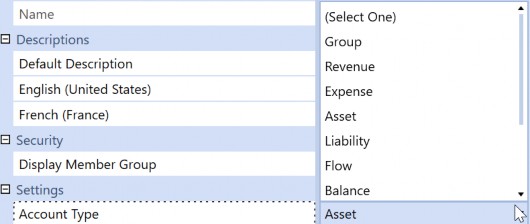

Below is the account type associated with the account member.

Figure 5.26

Non-Translating Accounts

Accounts that should not be translated should have the account type: Flow, Balance, Balance Recurring, or Nonfinancial. Thus, the amounts at C#Local and C#[Reporting Currency] will be the same amount output.

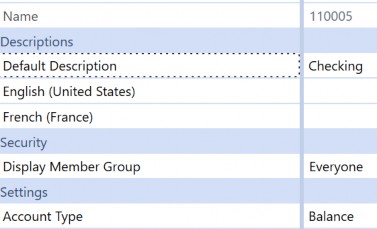

In the example below, I have account 110005 set to Balance. After I run a consolidate, the USD amount is the same as local.

Figure 5.27

Figure 5.28

CTA (Currency Translation Adjustment)

CTA stands for currency translation adjustment. Its purpose is to capture the FX differences between the average and closing rates – per period – as P&L accounts are translated using the average rates, while balance sheet accounts are translated using the closing rates.

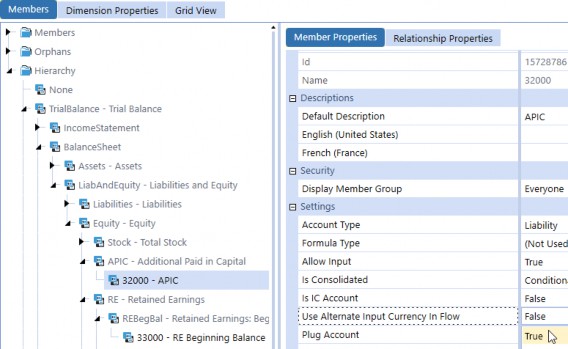

If you have an application with translations already enabled, you will already be aware of the CTA and relevant FX Flow members. If you have an application where you would like to enable OneStream’s translation capabilities, then CTA will be an account member with a Member Formula. The two common logic approaches that I have seen:

1. Plug Calculation: Total assets - total liabilities and equity (since net income would roll into retained earnings, this difference would be CTA).

2. True FX Calculation: uses the Flow dimension FX hierarchy, in which the FX differences are already calculated.

Both will end up with the same result.

Refer to the Blueprint application for a CTA example.

Currency Overrides

I like to think of currency overrides as an accounting or consolidation process where you want to use an already defined amount or rate in lieu of the current translated amount or current rates.

Assuming you are managing an application that does not have currency overrides enabled, and you would like to start using OneStream for your override submissions, there are two common options to handle overrides:

• Out-of-the-box property settings on the Flow members.

• Using Member Formulas on the Flow member that represents the currency override, and text fields on the identified override accounts.

Currency overrides are handled by a combination of the Account and Flow dimensions. However, the first step is to gather your override requirements. Is there a need to have both rate and amount overrides, or is one or the other sufficient?

Out-of-the-Box Settings for Amount Overrides

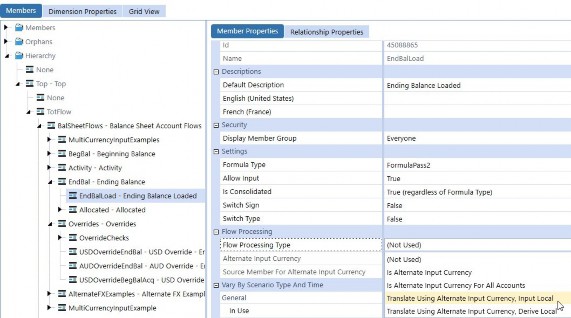

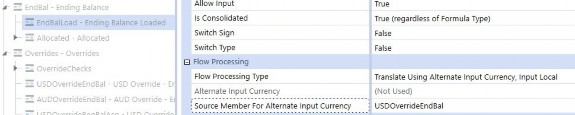

OneStream provides out-of-the-box capabilities to set up amount overrides. However, it is important to note that the out-of-the-box settings assume you only need one currency override, not multiple currency overrides. These out-of-the-box settings are found in the Flow Processing section of a Flow member’s properties.

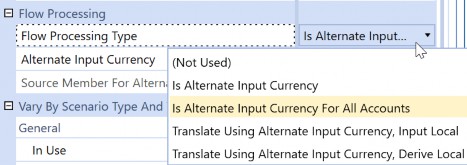

Flow processing types include:

• Is Alternate Input Currency: indicates dollar override. If you opt for this setting, the relevant accounts must be flagged as True for Use Alternate Input Currency In Flow.

• Is Alternate Input Currency for All Accounts: all accounts will be able to use this alternate currency. This setting follows the rules of constraint. If the Flow member is set to True for Is Alternate Input Currency for All Accounts, and accounts have constraints set for the Flow dimension, the Flow member is required to be a member of the constraint.

• Translate using Alternate Input Currency, Input Local: will override the translated value with the amount inputted at the local currency level.

• Translate using Alternate Input Currency, Derive Local: will override the translated value and change the local currency value to be derived based on the local currency rate. A use case for this setting would be input currencies (refer to next section).

Additional settings under Flow processing include:

• Alternate Input Currency: contains a list of all available currencies for the source value override. If this Flow member has a USD override, then it should be set to USD. If the override is a EUR override, then it should be set to EUR.

• Source Member for Alternate Input Currency: Define the actual Flow member to override the value for the current Flow member.

Rate Overrides

There are no out-of-the-box settings to facilitate rate overrides. If you need to use rate overrides and you cannot use amount overrides, then you will need to leverage business rules or Member Formulas.

Member Formulas and Text Fields

The use of Member Formulas and text fields is the most common approach for currency overrides as they allow for multiple currency overrides. For accounts that are considered eligible for overrides, we commonly recommend using a text field with something like Override. The override logic is then handled on the Flow members, such as USDOverrideEndBal and EndBalLoad from the Flow dimension.

Refer to the Blueprint application for a CTA example.

Input Currencies

As mentioned in the introduction to this chapter, transactional currency will be used synonymously with input currency. While it is common to have transaction currency captured in the ERP, there may be cases where there is a requirement (or need) to handle transactional currency reporting and local currency translations within OneStream.

This next part is based on a real-life story where a company had such specific reporting needs. In this case, S#Actual is actual rates applied to local currency amounts, and this view is commonly compared to S#Actual_Budget, where the amounts are transactional (input) currencies with a constant (budget) rate. The company’s ERP has both local currency amounts and transactional currency amounts.

You can either consider the use of a UD dimension with custom translation rules or leverage flow settings. This section covers leveraging flow settings to handle transactional and local currency within the OneStream application, which eliminates the need for custom rule writing.

• Enable currencies within the application.

• In the Flow dimension, create a grouping (e.g., Total_TC, Tot_TC, TC_Total; again, whatever makes sense to you and/or the users) that is a sibling to your top member (Total

equivalent), which will present the total transactional (input) currencies.

In the screenshot below, there is a suffix of _TC to represent the transactional/input currency, but you can just name them as the currency (e.g., without the suffix). In other words, you simply need something within the Flow hierarchy to discern which grouping of currencies represents the translation of transactional currencies versus local currencies.

Figure 5.34

Transaction currencies (e.g., AED_TC) will be where the data is loaded. Each transactional currency member in the Flow dimension will have the following settings:

o Flow Processing Type is set as Is Alternate Input Currency for All Accounts.

o Alternate Input Currency as the relevant currency. For example, if the Flow member (e.g., CNY_TC) represents CNY transaction currency, then the alternate input currency is CNY.

• In the Flow dimension, create a grouping (e.g., Total_LC, Tot_LC, LC_Total; whatever makes sense to you and/or the users to represent local currencies) in the Flow hierarchy. This node can be a sibling to your ending balance member.

Underneath this grouping, create all the members that will represent the transactional (input) currencies that will be translated to local currency.

Figure 5.35

Each member under the total local currency section will have the following settings:

o Flow Processing Type is set as Translate Using Alternate Input Currency, Derive Local.

• Source Member For Alternate Input Currency will be the corresponding transactional currency member in the Flow hierarchy.

• Ensure that FX Rates are entered.

• Create a Cube View where you can view the transactional currency and local currency to validate the output is correct. Suggested setup:

o Columns: entity and C#Local, C#USD, etc.

• Rows: account and the Flow members for transactional currencies and local currencies.

o For reporting purposes, the appropriate combination of dimensions will be the equivalent of F#Tot_LC: C#USD (where F#Tot_LC represents the sum of all the currencies translated to the local currency), or F#Tot_LC:C#EUR.

Figure 5.36

In my example above, I have a USD entity in which I enter 100 to EUR_TC and CAD_TC. Upon save, the same amounts will show up in USD since the entity’s local currency is USD (C#Local as USD = C#USD). Again, for reporting purposes, the intersection should be the equivalent of F#LC_Total: C#USD. After a consolidate, notice that the local amounts are derived in EUR_LC and CAD_LC. The rates used were 1.25 for CAD and 1.229 for EUR, so the expected amounts are 125 and 122.90 USD, respectively, for a total of 247.90 USD (Figure 5.37).

Figure 5.37

Reporting Actuals with Prior Year Rates

Now, following everything we have covered so far, let’s assess the ability to report actuals using prior year rates. What functionalities within OneStream will support this requirement, and what functionality should we be using?

I have worked on several engagements where there were only a handful of requirements, such as “The ability to report actuals with prior year actual rates” and “The ability to report actuals with budget rates” and that was all this user base needed. As a result, I leaned towards one choice (in this case, it was additional FX rate types). I have also worked on a case where several scenarios were needed to handle all sorts of FX-neutral reports, and because this application was large and administrator-heavy, I leaned towards another choice (in this case, it was standard with business rules and attaching translation logic to the cubes).

At the end of the day, my goal in this section is to provide you with a high-level assessment of the pros and cons associated with each of the functionalities but, ultimately, it will be up to your company stakeholders, consulting partners, and you – as the administrator – to assess and arrive at an informed conclusion. As always, the list below is not exhaustive, but I do hope it will provide you with a foundation to get started.

Additional FX Rate Types and Standard

You could create additional FX rate types like AverageRatePY and ClosingRatePY and continue to leverage the standard Cube Translation Algorithm Type for your given scenario(s). The primary changes would be:

• Adding FX rates and entering the FX rates.

• Creating the necessary scenarios. Then, within the scenario’s member properties, under the FX Rates section, you would set Use Cube FX Settings to False and update to use these FX rate types.

Below is a table of the pros and cons associated with the creation of FX rate types.

Figure 5.38

FX Rate Types and Standard with Business Rules

The Cube Translation Algorithm Type of Standard with Business Rules is particularly useful for custom translations where you want to leverage existing rates that are already entered into the application and you do not want redundant FX rate types. For example, if you want a scenario that represents actuals with prior year rates, you decide to use the ClosingRate or AverageRate with the already entered rates to T#[last year] instead of creating a new FX rate type and entering last year’s rates into T#[this year].

In order for this to work, you will need to…

• Write the finance business rule to support your custom translation requirements.

• Update the Cube Translation Algorithm Type to Standard with a Business Rule.

• Assign the finance business rule to the cube at the beginning of the processing sequence (e.g., Business Rule 1-3, depending on how custom your application is).

  • We commonly see the custom translation rule assigned as Business Rule 1, but again, I want to highlight the unique circumstances in which you might want to assign it in a different order. For example, I was on an engagement that consisted of non-controlling interest calculations and a custom elimination which needed to be populated at base entities. As such, this particular application had the non-controlling interest calculation as Business Rule 1, the custom elimination as Business Rule 2, and the custom translation as Business Rule 3.

• Create the necessary scenarios.

• Consider the Flow’s switch type implications with the account type. Do you want the Flow member to have Switch Type as True, or should it be False?

Below is a table of the pros and cons associated with using Standard with Business Rules.

Figure 5.39

Loading FX Rates

This section covers the various ways to input FX rates into the OneStream application. The most common methods include:

1. Entering directly into the FX rates grid.

2. Submitting through Excel.

3. Using a direct connect.

FX Rates Grid

The navigation path is Application > Cube > FX Rates. This is the out-of-the-box method where you select your views and FX rate type and enter the rates. With this FX grid, you can:

1. Create new FX rate types to represent various FX situations (e.g., PlanAverageRate, PlanClosingRate).

2. FX rates are entered into this grid by FX rate type.

3. FX rate types can then be applied to scenario members.

4. FX rate types can be further differentiated by Scenario Type and/or cubes to govern how translation should be handled.

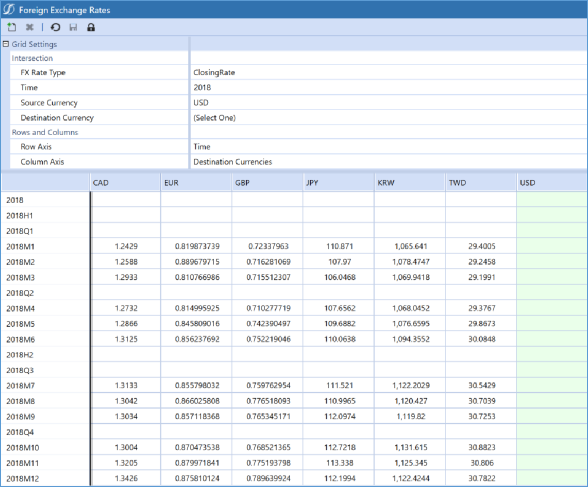

The FX grid provides the flexibility to select how you want to see your FX rate type, time, source currency, destination currency, row axis, and column axis. A question we often get asked is, “What is the optimal default display?” Generally, the answer is something along the lines of, “Whatever combination makes sense for you!” but an example view that I personally like to use is shown below.

This example displays time across the rows, with destination currencies in the columns. Notice how I have Source Currency selected specifically as USD. Thus, the rates displayed are USD:destination currency. In other words, 1 USD:1.2429 CAD.

Figure 5.40

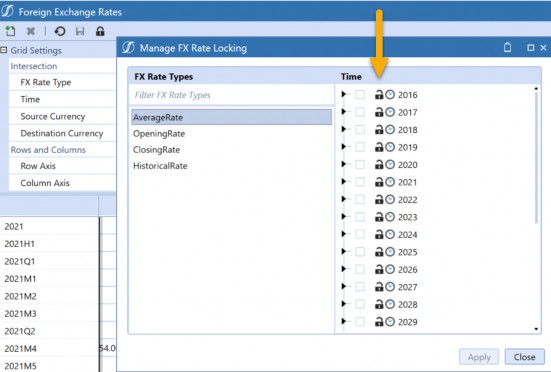

To prevent changes to entered FX rates, administrators or users who have access to the FX grid can lock by the FX rate types and the time. OneStream recommends that the administrator manages the locking of FX rate types.

Figure 5.41

Excel or Spreadsheet with Submit Cells

To submit rates in Excel, use: XFSetFxRate(value, storeZeroAsNoData, fxRateType, time, sourceCurrency, destCurrency).

Example: =XFSetFxRate(1.4,TRUE,"AverageRate","2021M4","USD","CAD"). When the user clicks Submit Sheet, this will update the FX rates in the system.

Direct Connect

A custom connector rule is written to directly pull the FX rates from the source system or web service like Thomson Reuters. Typically, this would require a support ticket and, depending on the contracts, someone can assist with getting you started with the integration.

Viewing FX Rates

There are various ways to enable the viewing of FX rates. The common one is the out-of-the-box FX rates grid, but a familiar ask is to limit a person’s ability to modify FX rates. Thus, this section covers the common methods for users to view FX rates:

1. FX Rates Grid

2. Excel or Spreadsheet with Get Cells

3. Cube Views using dynamic reporting members

FX Rates Grid

The FX rates grid is where you can view FX rates after you load them. The navigation path is the same as we saw with loading rates, namely: Application > Cube > FX Rates. Here, the user can make selections to FX rate type, time, source currency, destination currency, row axis, and column axis.

Excel or Spreadsheet with Get Cells

To retrieve rates and view them in Excel, use:

XFGetCalculatedFxRate(displayNoDataAsZero, fxRateType, time, sourceCurrency, destCurrency)

Example: =XFGetCalculatedFxRate(TRUE,"AverageRate","2021M4","CAD","USD")

Cube Views Using Dynamic Reporting Members

If you need users to view FX rates, but they do not have the relevant security rights to directly access the FX grid, one method would be to use a UD dimension (hopefully you have reserved your UD8 for reporting calcs) where you bring the UD8 member in as a Cube View.

Figure 5.42

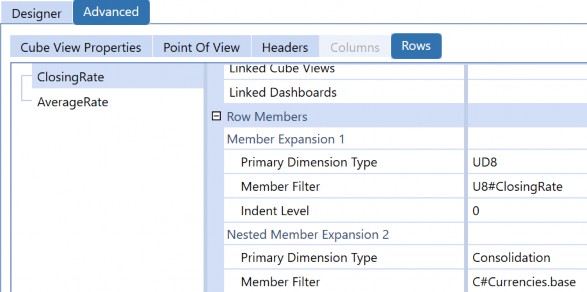

Then, on the Cube View, populate the default members (hint: account doesn’t really matter) and set the Row Expansion to the UD8 and Currencies.

Figure 5.43

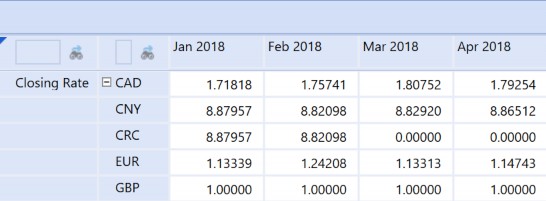

This Cube View assumes the user accessing it is viewing currency rates in relation to the entity’s local currency. This explains why – in the UD8 Member Formula – the example specifically identified the source currency to be the entity’s local currency. In other words, the rates will be [selected entity’s local currency]:[destination currency].

Figure 5.44

It looks like someone forgot to load CRC rates for March and April 2018 😊.

Conclusion

This chapter was all about where an administrator can enable translations in the OneStream application. The translation process is dependent on the properties found on the Cube, Scenario, Account, Entity, and Flow, as they are all interrelated. Specific translation features that OneStream handles include handling intermediary parents, auto currency translations, CTA (currency translation adjustment), overrides, and transactional currencies.

Translation depends on the rates captured in the system; in other words, if there is no rate entered for a given period, then the local amount will not translate for that given period. The most common methods to enter FX rates include the out-of-the-box FX rates grid, an Excel submission, or through a direct connect.

Depending on your company’s security and reporting requirements, the most common ways FX rates can be viewed include the out-of-the-box FX rates grid, Excel with the get formula, or Cube Views with the use of dynamic reporting members.
