About the Financial Model

The financial model includes Extensible Dimensionality, which allows you to extend the Dimensions to suit your own financial purposes. Cubes and design model considerations, along with the use of an aggregate storage model called BI Blend, which supports large-volume reporting for data that is not appropriate to store in a traditional Cube, allow you to further customize financial data modeling. Finally, Hybrid Scenarios help to improve data query performance when analyzing smaller sets of data that contain high volumes of account-level detail.

These tools, along with other data modeling techniques, allow you to build robust financial data models.

Extensible Dimensionality

Business units can inherit standard dimensions from a standard set that corporate may maintain, but Extensible Dimensionality® also allows them to extend those dimensions to suit their own process and reporting needs. This allows for operational significance for the business units yet grants control of the overall process to corporate.

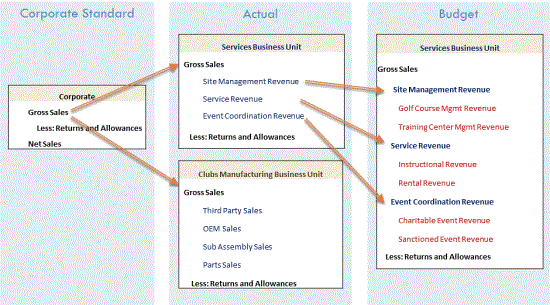

The diagram below shows an example of how a certain account can be extended differently across a service business unit vs. a manufacturing business unit as well as across the Actual and Budget scenarios. Notice how each business unit can look at Gross Sales differently in the Actual scenario. Also, the Services business unit can look at Gross Sales at an even greater level of detail in their Budget scenario.

This is possible due to three reasons:

1. Extensible Dimensionality® can inherit dimensions and extend them. In the example above, there are four different Account dimensions that inherit from each other like this:

   • Corporate Accounts

     • Club Manufacturing Accounts

     • Services Accounts

       • Services Budget Accounts

         Corporate Accounts is the main chart of accounts. Club Manufacturing takes that dimension and extends it to add its own accounts, but it cannot change what is in Corporate Accounts. Services also takes Corporate Accounts and extends it to meet its needs for the Actual scenario and extends its own Services Accounts to meet its need for more detail in its Budget scenario in the Services Budget Accounts dimension.  However, when designing an extended dimension, members are either added below inherited members (for additional detail), or to an alternate rollup by creating new parent members and then referencing inherited members below the new parents. Both actions cannot be done at the same time in the same section of the hierarchy.

2. Different dimensions can be assigned to different cubes and that dimensional assignment can be different for each Scenario type. In the above example, there are three cubes: Corporate, Clubs, and Services. When looking at the Corporate cube, data from the three cubes is all there for analysis. In Corporate, the Corporate Accounts dimension is assigned to all Scenario types. In Clubs, the Clubs Manufacturing Accounts dimension is assigned to all Scenario types. In the Services cube, the Services Accounts dimension is assigned to every dimension except for Budget, which is where the Services Budget Accounts dimension is assigned.

3. The Clubs and Services cubes have their own respective Entity dimensions referenced in the Corporate cube. The Entity dimensions tie the data together.

NOTE: Other dimensions such as Flow and the User Defined dimensions can also be extended and have flexible cube assignment if needed.

NOTE: Using Extensible Dimensionality to extend accounts used in the Intercompany Matching process is not a recommended practice.

Extensible Cube
There can also be separate cubes for different uses, such as Human Resource data or Cost Drivers. These cubes can still reference other cube data through the CB# qualifier in Member formulas.

Extensible Workflow
There can be different Workflow Profile hierarchies per Scenario cype which is defined at the cube level.  For example, an Actual scenario might be loaded from 12 GL systems across 500 entities, and Budget Forecast, and Variance can define a Workflow for each of the 500 entities with regional review and signoff levels.

Cube Design Choices within an Application

There are a few choices for the use of Cubes within an application, driven by the relationships between data.

1. Single or “Monolithic” Cube is the simplest Application design. These typically have one Workflow Profile structure, though that can vary by Scenario Type.

2. “Linked Cubes” is possible via relationships between multiple Entity dimensions into one superset Entity dimension. The “Top” or “Parent” Cube is configured with Cube References to others. Typically, Extensible Dimensionality is deployed with other dimensions, such as Accounts, allowing the Business Unit Cubes to satisfy their management reporting requirements. There is typically one Workflow Profile structure for all Linked Cubes, though that can vary by Scenario Type.

3. “Exclusive Cubes” are separate Business Unit Cubes that move their data from a Business Unit to a “Parent” Cube typically via Business Rules or the use of Data Management instead of through configured Cube References. Each separate Cube requires its own Workflow Profile structure, though that can vary by Scenario Type.

4. “Specialty Cubes” refers to special data collections outside of the typical Trial Balance or Planning data loads and is typically encompassed with no parent/child relationships between Cubes. Examples are for headcount or budget drivers. These figures might be referenced by other Cubes via Business Rules or Data Management. Each Specialty Cube would have separate Workflow Profile structures.

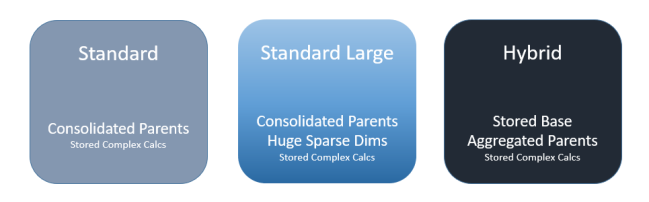

Application Model Design Considerations

Application designers understand that, as a platform, each application must flexibly respond to growth, evolving business needs, and enhancements in OneStream Solutions. Review the following design options to best direct the overall design and performance expectations of your application.

When designing an Application, consider these questions to identify the model Cube design best suited to your needs:

• What is the overall size of the Entity, Account, Flow and User Defined dimensions that estimate the Data Unit size potential? A OneStream Data Unit is comprised of Cube, Entity, Parent, Consolidation, Scenario and Time.

• What is the size and relationship between dimensions? For example, are the User Defined Dimensions large (thousand members) and are the members closely tied to a single or very few Entities (“sparsely populated”)?

• Are dimension members more transactional in nature? Transaction members such as Employee ID, SKU and Project Code likely change frequently. While this level of detail may be needed for analysis, it can complicate a financial model. Other modeling techniques could help.

• Is the data related to the Cube a “specialty” collection, such as Human Resources, Product Profit or Capital Expenditures?

• Do you fully understand how the data is managed? Determine if the Legal Entity is appropriate for the Entity dimension so you can properly define the ultimate Data Unit Controlling Dimension.

• Have you collected information how the data is assembled and used? Determine if the Cube data is integrated for different types of data such as Actual and Budget.

Standard Cube Design

Following are considerations for standard cube design.

Guidelines

• Common design for a standard Statutory Consolidation Cube.

• Primary metadata driven application.

• Data Unit approximately 250k data records at higher end.

Performance Profile

• Consolidation times for 12 periods generally range from minutes to ~2 hours on the higher end, depending on complexity and volume.

• Performance generally impacted by metadata parent structures, alternate hierarchies, and calculations executing on parent Entity members.

Reporting Guidelines

• Standard Cube Views with minimum number of rows and columns should perform well, rendering within a few seconds to a minute (depending on requirements).

• Slow Cube View performance of a reasonable number of non-calculated rows and columns, rendering greater than a minute should flag a Cube View or Application design review.

• Cube View Performance is strongly dependent on concurrent use, Cube View design and metadata involved.

Standard Large Sparse Cube Design

Following are considerations for standard large sparse cube design.

Design Guidelines

• Common for a Statutory Consolidation Application.  Contain sparse intersections due to collecting transactional members, such as SKU, Part Number or Names, or other large dimensions, such as Product or Project.

• Data Unit size approximately 750k or more data records. Larger Data Units demand more CPU processing power and time to calculate.

Performance Profile

• Optimize consolidation times by addressing sparse dimensions. With good extensibility you can significantly reduce the size of the Data Unit consolidating, for faster consolidation.

• Applications that must be consolidated and contain large sparse dimension members, may have long consolidation times and lower overall performance.  Review these applications designs to consider alternate design solutions that include extensibility or other Cube and Model solutions.

• Data Unit size, number of Data Units, Business Rule best practices and other factors effect consolidation times.

Reporting Guidelines

• Putting a “top” member such as UD2#Top for a large dimension on a Cube View , means OneStream loops through each child member and aggregates on-the-fly. This can consume large amounts of processing power and extend report processing.

• It is best to use Sparse Data Suppression settings on Cube Views which are based on Single Data Unit.

• You may need custom Sparse Cube View Business Rules for “top of the house” queries.

• Quick Views may be impacted as they do not include Sparse Row Suppression settings.

Hybrid Cube Design

Following are considerations for hybrid cube design.

Guidelines

Hybrid Applications are generally designed to support Analytics and not the Consolidation model. Hybrid cubes:

• Typically require complex calculations at base level Entities.

• Predominately present is aggregation having simple needs at parent Entity levels.  Parents do not require special calculations or logic.

• Rely on Dynamic Business Rules attached to a dynamic member such as in UD8. This means parent Entity data is not stored. You can set the Is Consolidated property on these Entities to False.

• Determine if parent Entity data must be exported to external system so you can understand the impact of Dynamic Business Rules.

• Usually have a data unit size of up to one million data records at the top parent Entity level.

Performance Profile

• Performance will vary by application size and structure.

• Data calculation is not stored at the parent level.

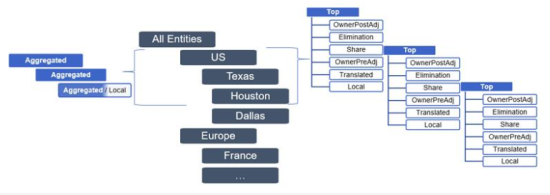

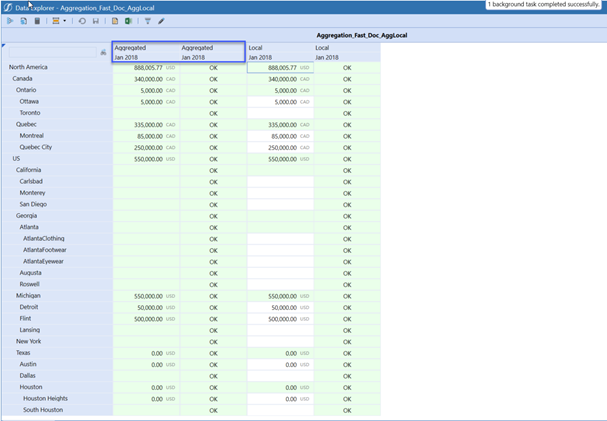

• “Entity Aggregation on the Fly” consolidation simulation rules are required. You cannot consolidate parent entities. This involves the API.Functions.
  GetEntityAggregationDataCell function in a dynamic member.

• You must support the export of calculated data which could involve unique Scenarios or cubes to replicate dynamic calculations as stored values. These processes can be automated using scheduled Data Management jobs.

Reporting Guidelines

• Apply Sparse Suppression settings on Cube Views.

• You may need custom Sparse Cube View Business Rules for “top of the house” member queries.

• Intermediate rules may run as Workflow-based or be driven by Dashboards or Calculation Definition settings.

• Quick Views may be impacted because they do not include Sparse Row Suppression settings.

Dynamic Cube Services

Dynamic Cube Services can assist with managing and analyzing complex volumes of financial data, leading to faster and more accurate analysis, reporting, and decision-making.

Dynamic Cube Services provides these features for designers with advanced knowledge of the OneStream architecture:

• Consolidate financial data from various sources

• Create and compare different budgeting and forecasting scenarios

• Track key performance indicators in real-time, enabling better management and decision-making

• Analyze risk data across multiple dimensions, helping mitigate financial risks

• Help ensure that financial data is accurate and up-to-date for internal compliance and auditing

Dynamic Cubes Overview

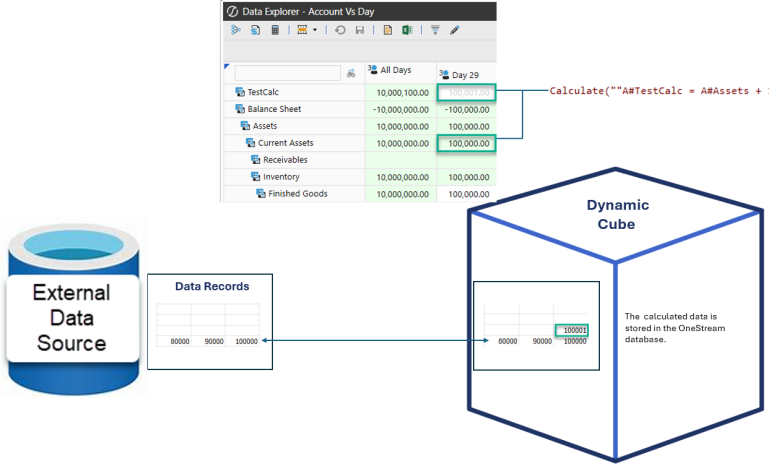

Dynamic cubes structure data into a multidimensional cube, ready for simplified reporting and analysis using tools such as cube views, quick views and dashboards. Dynamic cubes offer a solution for application designers to surface non-traditional data, such as transactional data, without extra loads ; or to re-aggregate existing Cube or Solution data in different ways.

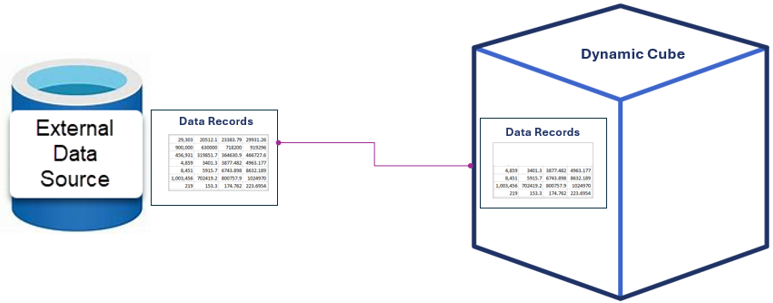

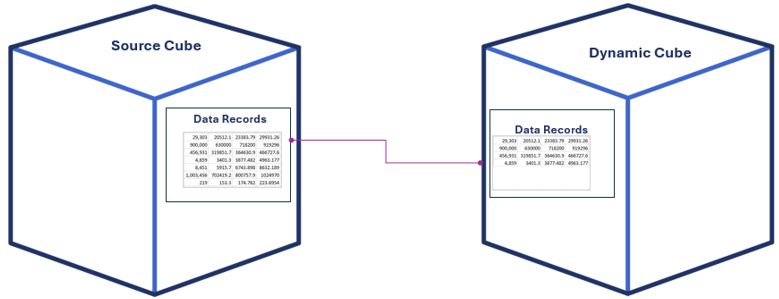

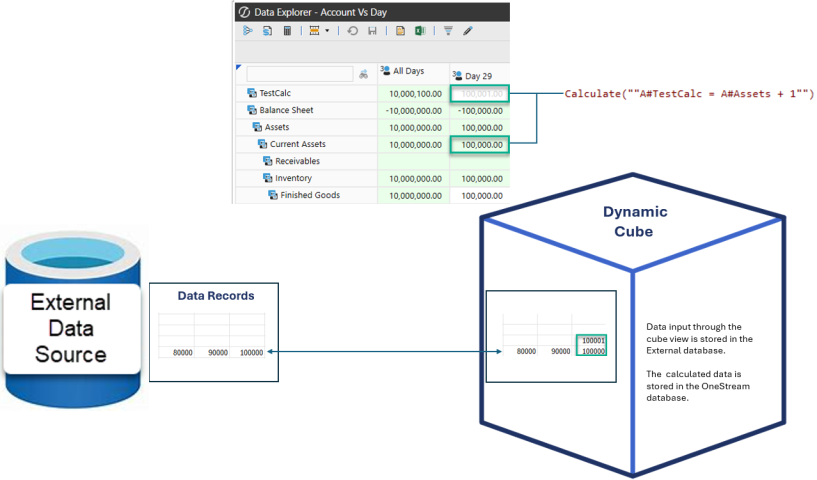

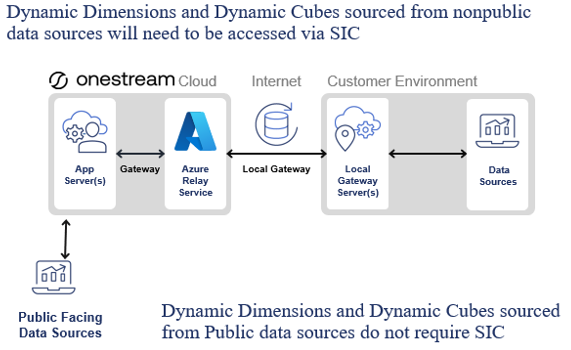

Dynamic cubes enable real-time connectivity to a source, such as an external database or source cube, without needing to store the data in the target cube. They are based on Workspace Assembly files that can define the dimension metadata and hierarchies, and instruct the cube on how to retrieve and/or commit data records.

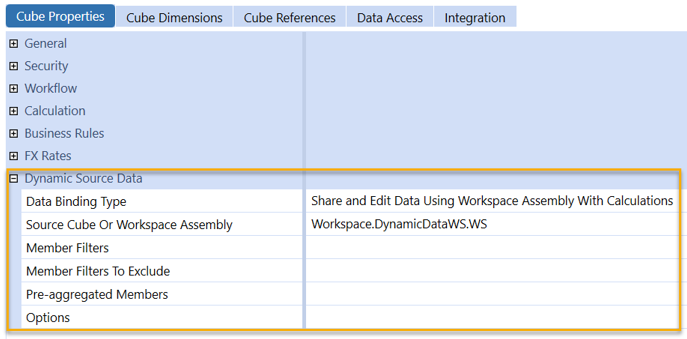

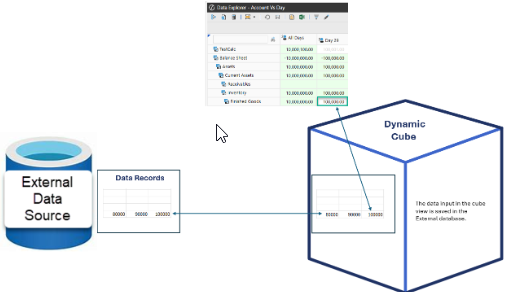

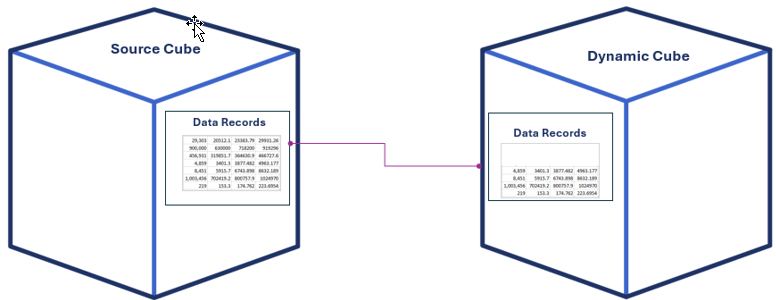

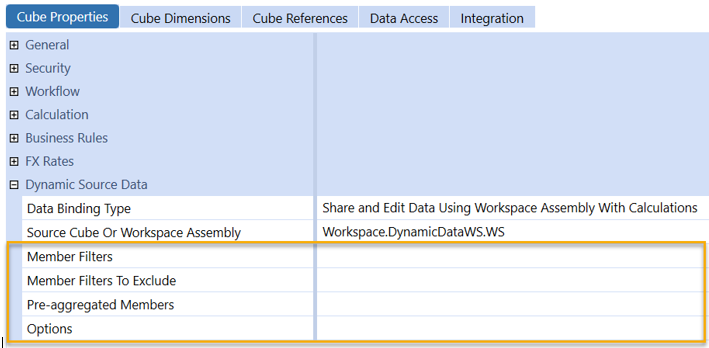

Data is integrated using data bindings configured on the cube, rather than Workflow-based imports. Dynamic cubes can be supplied content from other cubes, tables, and external databases. Data can be copied from a source and stored in data record tables, or it can be shared. A shared configuration can function as a reference to the source system, which means the data might not be physically stored in OneStream.

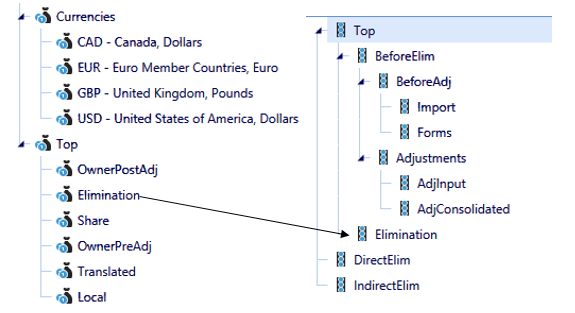

Dynamic cubes allow data collection through the Forms Origin member. The data submission flow can be customized using Workspace Assembly files to target tables, or to direct submitted data to an external system.

The elimination of stored metadata can be accomplished using Dynamic Dimensions. Such Dimensions are created and referenced by the dynamic cube in the same manner as a standard cube. However, members, properties, and relationships, are defined using Workspace Assembly rules, which manage the retrieval of data records as well as the cadence and method to refresh data and dimension metadata.

NOTE: Dynamic Cubes do not always require Dynamic Dimensions: data can be provided dynamically for cubes built with traditional stored dimensions too.

Dynamic Dimensions Overview

Dynamic dimensions are dimensions in which dimension members are not stored in an internal member table. Instead, the dynamic dimension is typically used to surface members from external sources for use in cubes. Dynamic dimensions are a key design tool that enable external database integration with dynamic cubes.

Dynamic dimension members cannot be created, updated, or deleted through the standard Dimension Library. Workspace Assembly rules define and retrieve members from external sources. They are used to apply properties, and to define relationships used to create a dimensions. Metadata management of the dynamic dimension is performed by the definition within workspace assembly rules.

Dynamic dimension members are read in real-time and cached each time the workspace assembly executes, according to the caching parameters defined in their rules. Dynamic dimension members only exist in code and are not saved to tables. Once referenced by stored data, they are partially kept in an internal table, called DynamicMember, to facilitate audit and application management.

Configure a Dynamic Dimension

Dynamic Dimensions are created for “right-hand” Account-type dimensions only: Account, Flow and User-Defined 1 through 8.

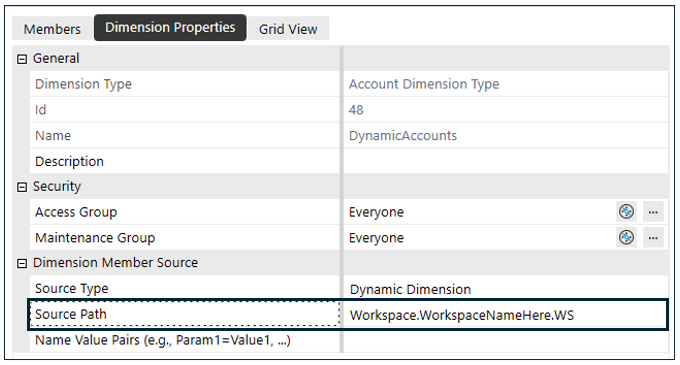

The dimension is created and assigned a Source Type of Dynamic Dimension in the Create Dimension dialog box for the Source Type property.

You can create and define members using a Workspace Service Factory, which is referenced through a workspace in the Source Path property. See Workspaces > Configure the Service Factory in the Design and Reference Guide for more information.

Capabilities

Dynamic Dimensions support the following functions:

• Enrichment of metadata using all OneStream properties.

• Extensibility is fully supported and integrated.

• Members are supported in Sparse Row Suppression.

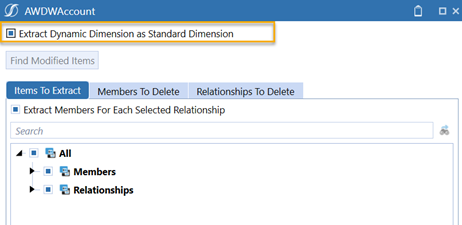

• Can be extracted for use as a standard dimension.

Limitations

Consider these limitations when using Dynamic Dimensions:

• Dynamic dimensions are not available on data unit dimensions..

• When writing to standard cubes or consolidating dynamic cubes, dynamic dimensions store records in data record tables. Redefining these dimension members will not clear stored data records; however, if a member is recreated with the same member ID, the records will continue to work properly. Specify external member IDs to help maintain references.

• Dimension members created by mirroring an existing dimension are created with new member IDs.

• Dynamic members that are removed or no longer exist, do not populate as orphan members. Dynamic members that are defined but not linked to any parent, will appear as orphans.

• DynamicCalc formulas on members are not supported when defined within a dynamic dimension.

• Standard dimensions should never be extended from dynamic dimensions. Extending a dynamic dimension with another dynamic dimension is possible, but not recommended.

Recommendations

Consider these recommendations when using Dynamic Dimensions:

• Extensibility designs are only supported as dynamic dimensions extend from standard stored dimensions.

• Use naming conventions to clearly identify that a dimension is dynamic.

Workspace Assembly Dynamic Dimensions

Dynamic Dimension Services execute assembly files for dynamic dimensions. The assembly file uses public classes to construct the DynamicDimensionInfo object, which creates the Dynamic Dimension. The DynamicDimensionInfo object uses the following syntax:

Syntax: DynamicDimensionInfo(ContentTimeStamp, NumSecondsBeforeReadContentTimeStamp, DynamicMemberCollection, DynamicRelationshipCollection)

For additional details on required objects and syntax, refer to Dynamic Cube Services API Reference.

When designing a dynamic dimension, consider the following:

• Frequency and trigger for the dimension to update during workspace or assembly file changes, or time-based updates (daily, hourly, or by the minute). For details, see Frequency and Trigger.

• Member definitions, including properties, relationships, and aggregation factors. For details, see Member Definitions.

• Metadata Enrichment of dynamic members for properties, constraints, and member formulas. For details, see Metadata Enrichment.

Frequency and Trigger

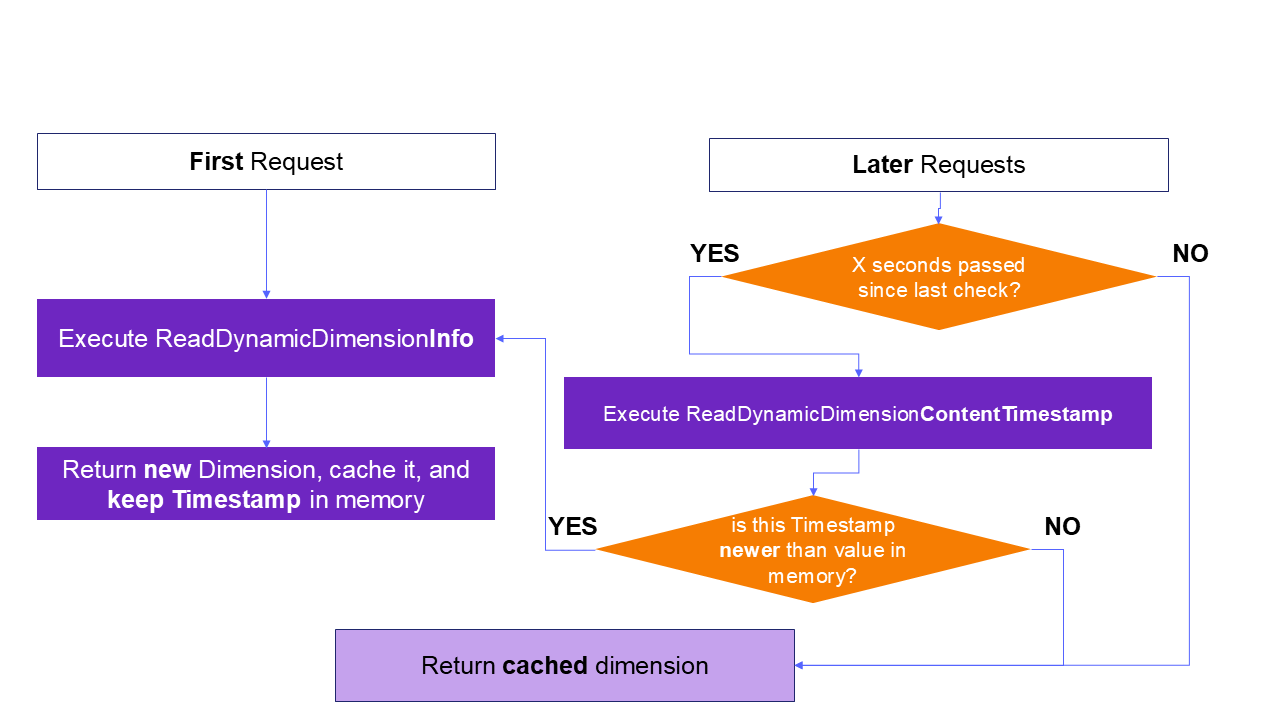

Each application server processes and caches metadata using a simple algorithm. When a dimension object is created, it gets a timestamp and a wait period before checking for updates. During this period, the cached object is returned from memory for faster access. After the timeout, the system calls ReadDynamicDimensionContentTimestamp to decide whether to recreate the object or continue using the cached version.

Example: The timeout ("X seconds" in the diagram above) is defined with the NumSecondsBeforeReadContentTimestamp argument of the dimension constructor:

Syntax: DynamicDimensionInfo( __, NumSecondsBeforeReadContentTimeStamp,__ ,__ )

Selection of such value should be based on the expected frequency of changes in the dimension source. If the cadence is unknown, or the members are manually created in the assembly file, the update can be triggered through changes to the assembly file by using the time variable SharedConstants.DateTimeMinValue in ReadDynamicDimensionContentTimestamp.

The logic in ReadDynamicDimensionContentTimestamp will naturally determine how often the dimension is recreated. If you use a higher refresh frequency, such as by minute, application performance may be impacted, especially with high volumes.

Refer to the following table for time-based refresh trigger rates:

Member Definitions

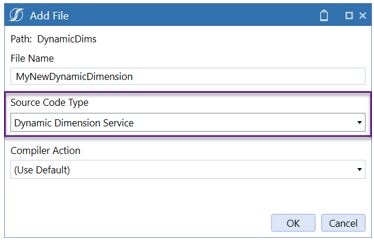

After a dimension is created using the Source Code Type of Dynamic Dimension Service, all metadata management is performed through workspace assembly files. Members can be created and defined in the assembly file. The assembly file can also source members and define properties from external systems, such as a database table. The members may be defined as either base or parent.

A new dynamic dimension service assembly file is created and populated with sample code that exposes the public classes and functions.

The assembly file creates the member and its relationship to parents in the dimension hierarchy. These objects are then passed to the DynamicDimensionInfo constructor. This object includes a data-time property that supports controlling and triggering the dimension refresh.

Syntax: DynamicDimensionInfo( ContentTimestamp, numSecodsBeforeCheckingTimestamp , DynamicMemberCollection, DynamicRelationshipCollection)

The following objects will have to be created to support the constructor:

• DynamicMemberCollection: The list of members in the dimension. Note: when specifying member names, if they contain unsupported special characters, they will be automatically stripped.

• DynamicRelationshipCollection: The list of parent-child relationship between members, defining the hierarchy structure. Note that it should also contain the relationship between any top member and Root, or between top members and members of an inherited (extended) dimension.

For additional details, refer to Dynamic Cube Services API Reference.

Note that the system provides a shortcut method to build the entire dimension (and attach it to the Root member) with a single SQL query. See the API section for further details.

⚠ image not available in source

If the resulting dimension must be nested under an existing member instead of Root, the relationship can be modified like this:

Dim dynamicDim = api.ReadDynamicDimensionInfo(...)
dynamicDim.Relationships.GetAllRelationships().Find(Function(r) r.ParentId.Equals(DimConstants.Root)).ParentId = newParentId

{
    var dynamicDim = api.ReadDynamicDimensionInfo(...);
    dynamicDim.Relationships.GetAllRelationships().Find(r => r.ParentId.Equals(DimConstants.Root)).ParentId = newParentId;
}

Enabling the Service

The Dynamic Dimension service must be returned by a Service Factory.

Example:

Select Case wsasType
Case Is = WsAssemblyServiceType.DynamicDimension
     ' we can switch on the dimension name
     If itemName.XFEqualsIgnoreCase("MyUD1") Then
          Return New MyNewDynamicDimension()

{
    switch (wsasType)
    {
        case object _ when wsasType == WsAssemblyServiceType.DynamicDimension:
            {
                // we can switch on the dimension name
                if (itemName.XFEqualsIgnoreCase("MyUD1"))
                    return new MyNewDynamicDimension();
                break;
            }
    }
}

See Workspaces > Configure the Service Factory in the Design and Reference Guide for more information.

Extensibility

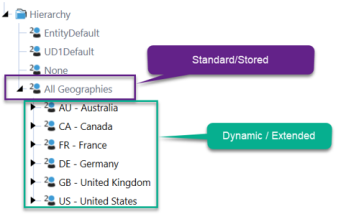

Dynamic dimension assembly files can reference a stored dimension member to support extensibility. Standard dimensions should never be extended from dynamic dimensions. Extending a dynamic dimension with another dynamic dimension is possible, but not recommended.

Metadata Enrichment

When objects are initiated as dynamic members or a relationship collection, the objects can be enriched to configure all stored and vary-by properties. Members created within the assembly file, or originating in source systems, can be configured with all required and optional properties, including vary-by-ScenarioType and Time properties. Example:

Dim dynmem As DynamicMember = myDynamicDimensionInfo.Members.GetMember("My Member Name")
dynmem.VaryingMemberProperties.GetUDProperties().Text1.SetStoredValue(ScenarioType.Unknown.id, DimConstants.Unknown, "Something")

{
    DynamicMember dynmem = myDynamicDimensionInfo.Members.GetMember("My Member Name");
    dynmem.VaryingMemberProperties.GetUDProperties().Text1.SetStoredValue(ScenarioType.Unknown.id, DimConstants.Unknown, "Something");
}

Example

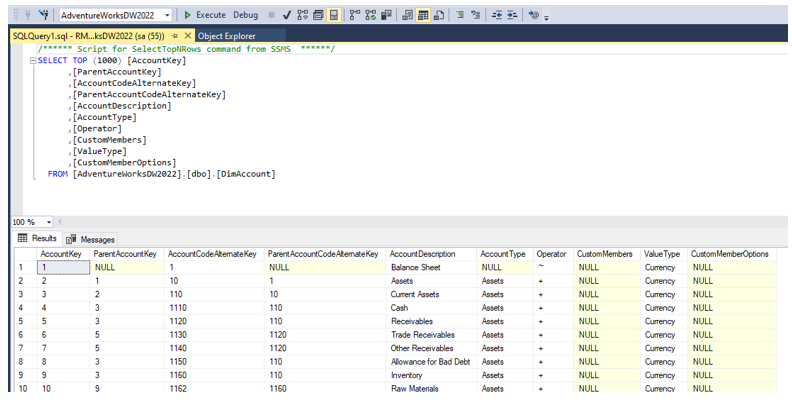

The following example implements a simple dynamic dimension from an SQL table.

Namespace Workspace.__WsNamespacePrefix.__WsAssemblyName
    Public Class MyDynamicDimensionService
        Implements IWsasDynamicDimensionV800
        Function ReadDynamicDimensionContentTimestamp(ByVal si As SessionInfo, ByVal api As IWsasDynamicDimensionApiV800, ByVal args As DynamicDimensionArgs) As DateTime  Implements IWsasDynamicDimensionV800.ReadDynamicDimensionContentTimestamp
            Try
                ' Return SharedConstants.DateTimeMinValue if you are unable to determine
                ' when the underlying dimension members or relationships have been changed.
                ' In that case, the cache for this dimension will only be refreshed when
                ' a user edits this dimension's properties, this workspace's properties,
                ' or this workspace assembly's code.
                Return SharedConstants.DateTimeMinValue

            Catch ex As Exception
                Throw New XFException(si, ex)
            End Try
        End Function
        Public Function ReadDynamicDimensionInfo(ByVal si As SessionInfo, ByVal api As IWsasDynamicDimensionApiV800, ByVal args As DynamicDimensionArgs) As DynamicDimensionInfo Implements IWsasDynamicDimensionV800.ReadDynamicDimensionInfo
            Try
                ' retrieve parameters from Dimension configuration
                Dim nameValuePairs = New NameValueFormatBuilder(args.Dim.DimMemberSourceNVPairs)
                Dim secsToWait As Integer = nameValuePairs.NameValuePairs.XFGetValue("SecsToWait", 5)

                ' Define timestamp
                Dim contentTimestamp As DateTime = DateTime.Now

                ' build the dimension from a query on the Application database
                Dim dynamicDim = api.ReadDynamicDimensionInfo(si, args, contentTimestamp, _
                        SharedConstants.Unknown, api.DbConnApp, _
                        "SELECT Child, Description, Parent FROM MyCustomDimensionTable", _
                        Nothing, Nothing, "Child", "Description", _
                        String.Empty, String.Empty, "Parent", String.Empty, String.Empty, String.Empty, False)

                ' Tweak the aggregation weight for one member
                Dim someMemberID As Integer = dynamicDim.Members.GetMember("MyMember").Member.MemberId
                dynamicDim.Relationships.GetAllRelationships().Find(Function(r) r.ChildId.Equals(someMemberID)).UDAggWeight = 0.0

                ' Set a text property on a member
                Dim dynmem As Integer = dynamicDim.Members.GetMember("AnotherMember")
                dynmem.VaryingMemberProperties.GetUDProperties().Text1.SetStoredValue( _
                    ScenarioType.Unknown.id, DimConstants.Unknown, "Something")

                ' return the hierarchy
                Return dynamicDim
            Catch ex As Exception
                Throw New XFException(si, ex)
            End Try
        End Function
    End Class
End Namespace

using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Globalization;
using System.IO;
using System.Linq;
using System.Reflection;
using System.Runtime.CompilerServices;
using System.Security;
using System.Text;
using System.Threading.Tasks;
using Microsoft.VisualBasic;

namespace TestProject.Workspace.__WsNamespacePrefix.__WsAssemblyName
{
    public class MyDynamicDimensionService : IWsasDynamicDimensionV800
    {
        public DateTime ReadDynamicDimensionContentTimestamp(SessionInfo si, IWsasDynamicDimensionApiV800 api, DynamicDimensionArgs args)
        {
            try
            {
                // Return SharedConstants.DateTimeMinValue if you are unable to determine
                // when the underlying dimension members or relationships have been changed.
                // In that case, the cache for this dimension will only be refreshed when
                // a user edits this dimension's properties, this workspace's properties,
                // or this workspace assembly's code.
                return SharedConstants.DateTimeMinValue;
            }
            catch (Exception ex)
            {
                throw new XFException(si, ex);
            }
        }
        public DynamicDimensionInfo ReadDynamicDimensionInfo(SessionInfo si, IWsasDynamicDimensionApiV800 api, DynamicDimensionArgs args)
        {
            try
            {
                // retrieve parameters from Dimension configuration
                var nameValuePairs = new NameValueFormatBuilder(args.Dim.DimMemberSourceNVPairs);
                int secsToWait = nameValuePairs.NameValuePairs.XFGetValue("SecsToWait", 5);

                // Define timestamp
                DateTime contentTimestamp = DateTime.Now;

                // build the dimension from a query on the Application database
                var dynamicDim = api.ReadDynamicDimensionInfo(si, args, contentTimestamp, SharedConstants.Unknown, api.DbConnApp, "SELECT Child, Description, Parent FROM MyCustomDimensionTable", null/* TODO Change to default(_) if this is not a reference type */, null/* TODO Change to default(_) if this is not a reference type */, "Child", "Description", string.Empty, string.Empty, "Parent", string.Empty, string.Empty, string.Empty, false);

                // Tweak the aggregation weight for one member
                int someMemberID = dynamicDim.Members.GetMember("MyMember").Member.MemberId;
                dynamicDim.Relationships.GetAllRelationships().Find(r => r.ChildId.Equals(someMemberID)).UDAggWeight = 0.0;

                // Set a text property on a member
                int dynmem = dynamicDim.Members.GetMember("AnotherMember");
                dynmem.VaryingMemberProperties.GetUDProperties().Text1.SetStoredValue(ScenarioType.Unknown.id, DimConstants.Unknown, "Something");

                // return the hierarchy
                return dynamicDim;
            }
            catch (Exception ex)
            {
                throw new XFException(si, ex);
            }
        }
    }
}

Configure a Dynamic Cube

You can turn a cube into a dynamic cube by setting a Data Binding Type property for the cube. In these configurations, data integration is based on the workspace assembly file definition and is limited to the Forms origin to meet any manual data entry requirements.

Dynamic cubes can be configured with out-of-the-box properties that support the design of specialty cubes in a similar manner as hybrid scenarios. Workspace assembly configurations are used for more advanced solutions, such as surfacing external sources in a cube.

Data storage varies by use and design of the dynamic cube, as well as by the Data Binding Type property. Consider the following:

• Copy input data options store data records in data record tables at base level intersections.

• Share options for dynamic cubes manage the data as a pointer to the source system.

• Dynamic cube data integration is restricted to the Forms origin member for data entry.

• Dynamic cube data entry requires base-level intersections. O#BeforeAdj is not supported as a data entry point.

• Dynamic cubes support write-back data to external sources and can write back text-based data through V#Annotations to external sources.

Shared data acts as a pointer to parent and base level data unit members. However, account, flow, and user-defined parent members are calculated on the fly. Base-level data unit members are required when data is integrated with a copy operation.

Data bindings have the following variations for edit and calculations:

• Edit: Lets the dynamic cube use a workspace assembly file to write-back to the defined source, such as an external table. Note that writeback to stored cubes is not supported.

• With Calculations: Lets dynamic cubes use workspace assembly files to execute member formulas that are stored in tables. Data is retrieved from the original source for the data unit and combined with any manual entry. Member formula calculations are stored and retrieved from regular tables, which are then merged into the results viewed in the dynamic cube.

• CalcStatus: Is supported and defined using a workspace assembly file.

Capabilities

Dynamic Cubes support the following functions:

• Can be used in consolidation, financial intelligence, and data unit calculation sequence adherence.

• Data unit dimensions can be targeted for shared data.

• Extensibility is supported.

Limitations

Consider these limitations when using Dynamic Cubes:

• Data unit size and capacity recommendations are the same as a standard cube. Follow the best practices for Cube design.

• Text-based data integration is restricted to V#Annotations.

Dynamic Cube Data Binding Types

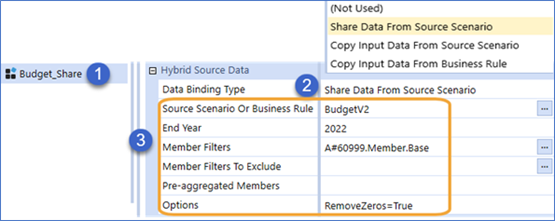

In Cube Properties > Dynamic Source Data, there are seven Data Binding Type options for Dynamic Cube Services.

• Share Data From Source Cube

• Copy Input Data From Source Cube

• Share Data Using Workspace Assembly

• Share and Edit Data Using Workspace Assembly

• Share Data Using Workspace Assembly With Calculations

• Share and Edit Data Using Workspace Assembly With Calculations

• Copy Input Data From Workspace Assembly

NOTE:  In this topic, the source data can refer to information that comes from OneStream (stored cubes or Stage) or from external systems.

Share Data From Source Cube

Data is read-only and referenced from the source cube. This setting lets you refer to data from other cubes without duplicating the data, and also lets you filter which members to share. Benefits include a smaller data unit for filtering which members to share, as well as the ability to filter a specific member for data analysis when discontinuing an operation.

Copy Input Data From Source Cube

Base-level data is copied from the source cube as data records in dynamic cubes. Required for alternate rate-type and rule-type translations. You can copy base-level data from another cube and filter on members you want to copy. For example, you might only want to copy data from a P&L account and then retranslate in the source cube.

Share Data Using Workspace Assembly

This data binding lets you share data from any source through workspace assemblies. You can view data in cube views and filter which members you want to share.

For example, you can do the following:

• Only share data for specific members such as income statement accounts.

• Rearrange or integrate data already collected in another cube using volatile dynamic dimensions and custom tables

Share and Edit Data Using Workspace Assembly

Share data from a non-cube source through workspace assemblies. For example, you can do the following:

• Use forms, such as cube views, to edit the data.

• Input data into a form to write back to the source, as well as reference data from the original data source.

• Filter members for sharing. For example, share data for specific members from an external data source, or integrate data already collected in another cube using data kept in custom tables.

Share Data Using Workspace Assembly with Calculations

This model lets you share reference data from any data source and calculate data. You can filter members to share. For example, you might want to share data for specific members. Calculations defined in dynamic dimensions can be executed through workspace assemblies.

Share and Edit Data Using Workspace Assembly with Calculations

This model shares reference data from any non-cube source. You can use forms like cube views to edit the source data. You can filter members to share. For example, you might want to share data only for specific members. You can also perform calculations through workspace assemblies.

Copy Input Data From Workspace Assembly

With this model you can copy data from any source to data record tables.

Dynamic Cube Query Performance

A dynamic cube improves reporting query performance by filtering the results from source cubes into smaller data units.

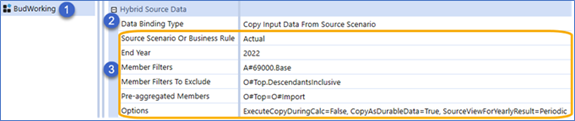

In Cube Properties > Dynamic Source Data section, set these properties:

• Member Filters: Determines which data is included in query results. Use a comma separated list to include only members in the lists. This can include multiple dimension types, member expansions, or single members. To include all source data in query results, leave the field blank.

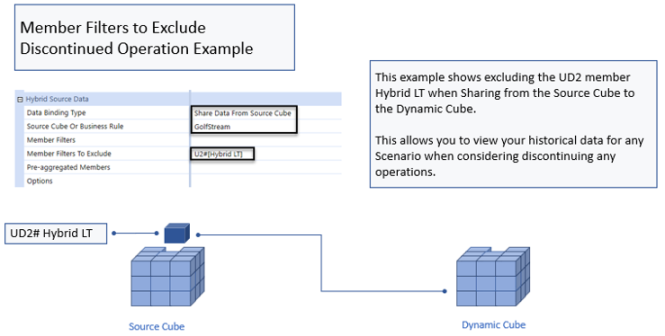

• Member Filters to Exclude: Determines which data is excluded in query results. Use a comma separated list to exclude members in the lists. This can include multiple dimension types, member expansions or single members. If it includes members from the Member Filters property, those members are excluded. To exclude no data, leave the field blanka.

  NOTE: You cannot use Data Unit dimensions in the Member Filters or Member Filters to Exclude properties (Entity, Time, Consolidation, Scenario).

• Pre-aggregated Members: Determines whether to share or copy data from a parent member, source, to a base member, target. Set the top member to a Base member to pre-aggregate if the detail of a dimension is not needed. This alleviates repetitive calculations for the same number. For example:

  UD1#Top=UD1#None,UD2#Top=UD2#None,UD3#Top=UD3#None,UD5#Top=UD5#None,
  UD5#Top=UD5#None, UD6#Top=UD6#None

  NOTE: Ensure the base members are included in the Member Filters property and the parents are included in the Member Filters to Exclude property.

• Options: Optional and variable settings that provide additional control when running a hybrid share or copy. Options are name-value pairs. Ensure the option names, definitions, and syntax are accurate and include any custom name-value pairs if a business rule is used to copy. To include multiple options, enter the name-value pairs in a comma separated list.

Dynamic Data Management

Workspace assembly files manage the retrieval and optional write-back of data between the external source and the data unit defined by the dynamic cube dimensions.

Workspace Assembly Dynamic Data

The Service Factory file references the DynamicData component. It initializes a class for a dynamic cube retrieval of data. Refer to the following example.

case WsAssemblyServiceType.DynamicData:
    if (itemName.XFEqualIsIgnoreCase( "Dynamic Cube's Name"))
    {
    return new WsasDynamicData();
    }

switch (WsAssemblyServiceType.DynamicData)
{
    case WsAssemblyServiceType.DynamicData:
        if (itemName.XFEqualIsIgnoreCase("Dynamic Cube's Name"))
        {
            return new WsasDynamicData();
        }
        break;
}

When designing a DynamicData workspace assembly class file, consider the following three methods:

• Triggering and refresh time-stamp controls. For details, see Workspace Assembly Dynamic Dimensions > Frequency and Trigger.

• ReadDynamicDataUnitData: Returns a data unit object. For details, see Read Dynamic Data Unit.

• SaveDynamicDataCells: (Optional) Manages the write-back of numeric and text data to a source. For details, see Save Dynamic Data Cells.

Read Dynamic Data Unit

Workspace Assembly files are designed to emulate the content of data record tables. The core definition must construct a list of data records that contain the required content of a data unit. This allows the Finance engine to properly interpret the data. The resulting data, which can be numeric or text-based, is in memory cached dynamic data.

A data unit consists of these objects:

• Entity

• Parent

• Scenario

• Consolidation

• Time (Year)

A dynamic data service enables a dynamic cube to read and write data from an internal or external source.

The file contains three functions to be implemented:

• ReadDynamicDataUnitContentTimeStamp: Return a timestamp representing when the data might have changed. This will be used to determine whether cached data should be refreshed. Refer to Workspace Assembly Dynamic Dimensions.htm.

• ReadDynamicDataUnitData: Return a DynamicDataUnitData object representing the requested DataUnit. The object can be populated with data coming from anywhere, including external databases and existing cubes. .

• SaveDynamicDataCells: This function will receive cells modified via forms, giving developers the ability to send data to external systems or custom tables. .

When creating a DynamicDataUnitData object to implement ReadDynamicDataUnitData, specify a timestamp indicating when the returned data was last changed ( [ contentTimestamp ] ) and how long to wait before the timestamp should be checked again ( numSecondsBeforeReadingContentTimeStamp).

Refresh triggering options occur upon a change to the workspace assembly file. This occurs daily, hourly, and by the minute. Refer to the following example.

Data can be provided to the DynamicDataUnitData object as a DataRecord object or DataBufferCellPk:

• DataRecord: One or more objects, representing all values in the year for a specific intersection. For example, having 12 values in a monthly application. See DataRecord.

• DataBufferCellPk: Representing a specific intersection for a specific period only. For example, a single value in a single period, be it YTD or Periodic. See DataBufferCellPk.

DataRecord

DataRecord objects are typically created by specifying a DataRecordPk object (which contains the record coordinates, i.e. the members that define the intersection), and the number of cells it should have (one for each period in the year, e.g. 12 in a monthly application).

' define the Pk
Dim drPk As New DataRecordPk( api.Pov.Cube.CubeId, _
    api.Pov.Entity.MemberId, _
    DimConstants.Unknown, _     ' this is parentId, optional at base level
    api.Pov.Cons.MemberId, api.Pov.Scenario.MemberId, _
    2025, _         ' use straight years here, not "timeId" ones
    accountId, flowId, originId, icId, _
    u1id, u2id, u3id, u4id, u5id, u6id, u7id, u8id)
' create the record
Dim newRecord as new DataRecord(drPk, 12)

// define the Pk
var drPk = new DataRecordPk(api.Pov.Cube.CubeId,
    api.Pov.Entity.MemberId,
    DimConstants.Unknown,  // this is parentId, optional at base level
    api.Pov.Cons.MemberId, api.Pov.Scenario.MemberId,
    2025,  // use straight years here, not "timeId" ones
    accountId, flowId, originId, icId,
    u1id, u2id, u3id, u4id, u5id, u6id, u7id, u8id);
// create the record
var newRecord = new DataRecord(drPk, 12);

NOTE: When using dynamic dimensions, IDs are automatically generated, and member names could overlap with members or regular stored dimensions. The recommended best practice is to retrieve the dynamic member ID using the external ID or name.

Dim accId = api.Members.GetMemberUsingExternalMemberId( _
                 api.Pov.AccountDim.DimPk, myExternalId).MemberId

{
    var accId = api.Members.GetMemberUsingExternalMemberId(api.Pov.AccountDim.DimPk, myExternalId).MemberId;
}

Values can then be set in the record by manipulating the DataCells list of DataCacheCell objects. Note that YTD values are recommended for best performance.

' index determines the period - 0 is January, 1 is February, etc
newRecord.DataCells(0).SetData(myDecimalAmount, DataCellExistenceType.IsRealData, DataCellStorageType.NotStored)
newRecord.DataCells(1) = new DataCacheCell(myDecimalAmount, new DataCellStatus(DataCellExistenceType.IsRealData, DataCellStorageType.NotStored)

{
    // index determines the period - 0 is January, 1 is February, etc
    newRecord.DataCells(0).SetData(myDecimalAmount, DataCellExistenceType.IsRealData, DataCellStorageType.NotStored);
    newRecord.DataCells(1) = new DataCacheCell(myDecimalAmount, new DataCellStatus(DataCellExistenceType.IsRealData, DataCellStorageType.NotStored));
}

DataRecord objects can then be added to the DynamicDataUnitData instance using the following methods:

• setDataRecord: To assign an individual instance

• setDataRecords: To assign a List or other collection of instances in bulk.

DataBufferCellPk

DataBufferCellPk objects represent individual values, and can be added directly to the DynamicDataUnitData object with the following methods:

• SetDataCell: Sets numeric values to a defined time at the V#YTD or V#Periodic members.

• SetDataCellAnnotation: Sets text values to a defined time at the V#Annotation member.

• SetDataCellUsingCellIndex: Sets numeric values to a zero-based time index supporting full data unit emulation at the V#YTD or V#Periodic members.

• SetDataCellAnnotationUsingCellIndex: Sets text values to a zero-based time index supporting full data unit emulation at the V#Annotation member.

dynamicDataUnitData.SetDataCellUsingCellIndex(si, dataCellMonthIndex, dataBufferCellPk, amount, DataCellExistenceType.IsRealData, DataCellStorageType.Input);
Return dynamicDataUnitData

{
    dynamicDataUnitData.SetDataCellUsingCellIndex(si, dataCellMonthIndex, dataBufferCellPk, amount, DataCellExistenceType.IsRealData, DataCellStorageType.Input);/* TODO ERROR: Skipped SkippedTokensTrivia */
    return dynamicDataUnitData;
}

The workspace assembly file should define all the base-level dimension intersections that are valid in the dynamic cube. Data will populate all the undefined members available to the data buffer. Data buffer members can be fixed to a base level member if they are not definable in the source system, such as the origin dimension targeting Import, AdjInput or Forms. Without reference, the consolidation dimension will be populated at local and translated. Local and specified currencies can be targeted.

NOTE: The generated dataunit will not be further filtered by the system on the main dimensions (Year, Scenario, Entity, Parent, Consolidation, and Cube). The system assumes that all records and cells appearing in the DynamicDataUnitData object belong to the dataunit that was requested, regardless of any DataRecordPK or DataBufferCellPK attached to the object. For example, if the requested dataunit was for entity Chicago and we added records pointing to entity New York, those records will still appear as pointing to Chicago !

Caching

DataUnits are cached in memory. For best performance, developers should ensure that data is served from such cache as much as possible; every execution of ReadDynamicDataUnitData will be significantly slower than just reusing cached data.

The algorithm used by OneStream is similar to the one seen for Dynamic Dimensions:

Example: In the diagram above, "X seconds" is the value passed to the DynamicDataUnitData constructor as argument NumSecondsBeforeCheckingTimeStamp; likewise, the Timestamp is passed as the other argument to the same constructor.

It is not possible to externally invalidate the cache. Because this logic is executed on each application server individually, if source data changes and caching timeouts are very long, a situation might arise where different users connected to different servers might observe different data until the timeout expires. If this is not acceptable, developers can set the timeout to a short value and add logic in ReadDynamicDataUnitContentTimestamp to look up a timestamp from a shared source (for example, a custom table); for best performance, this logic should be kept to a minimum, since this method could be called very often and by multiple processes.

Save Dynamic Data Cells

A dynamic cube designed for a workspace assembly using any data-binding type containing "Edit" must providemethods to manage the write-back of records. Write back is supported only on base level intersections of the O#Forms member.

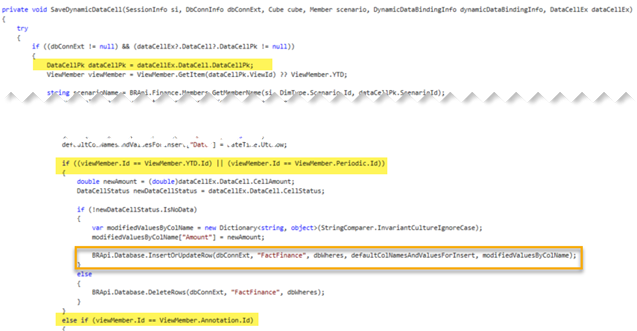

The SaveDynamicDataCells method will receive a list of records edited. The records are defined by OneStream-specific member IDs. For this reason, when using external sources such as an external database, the code logic will likely need to perform mapping to align with the target record keys. The developer is completely free to define such mapping or transformation logic in code, and to use whichever process is necessary to send data back (database writes, webservices, etc).

A new dynamic data service assembly file automatically creates the SaveDynamicDataCells function. The function receives a list of the records that changed as dataCellEx objects, which have properties to retrieve all the details related to the DataCell.

Both numeric and text values can be sent back to the source system. Changed cell records are attached to the Origin and View members in the following ways:

• O#Forms:V#YTD or O#Forms:V#Periodic for numeric data

• O#Forms:V#Annotations for text data

When evaluating records, the view dimension should be used to target the results to the appropriate column or column type. Note how the example below performs checks on the View IDs to decide how data should be saved.

Extracting Dynamic Dimensions

Dynamic Dimensions are defined, maintained, and initialized through workspace assembly files. For dynamic dimensions and dynamic cubes to functions in other applications and environments, workspaces must be present, as well as connectivity to required external sources. Where underlying requirements are not supported, or the requirement for a dynamic dimension does not exist, dynamic dimensions can be extracted as a standard dimensions.

Note the following:

• They are only supported by dimensions using metadata extract.

• Dimensions extracted as dynamic dimensions only present the dimension properties in the XML output.

To convert a dynamic dimension to a standard dimension:

1. Go to Application > Load Extract.

2. Select Metadata as the extract choice.

3. Select the dynamic dimension you want to extract.

4. Right-click and select Select Member to Extract.

5. In the dialog box, check the box labeled Extract Dynamic Dimension as Standard Dimension.



Dynamic Dimensions and Smart Integration Connector

In some instances, dynamic dimensions and dynamic cubes access data sources that are public facing. In other instances, data sources are in a virtual private network (VPN) and require the use of Smart Integration Connector (SIC) to access. Refer to the following image.

Smart Integration Connector setup is required to access non-public data sources.

1. A local gateway server should be installed and configured. There can be multiple servers including, development, production, disaster recovery, high availability, and multiple geographic locations depending on requirements.

2. The local gateway server should be added to OneStream.

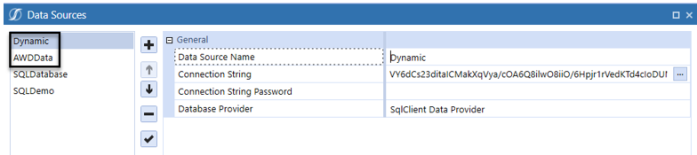

   Local data sources must be green, indicating it is accessible.

3. Local data sources must be configured on the local gateway server.



4. Local data sources must be added in the system configuration as Gateway Provider Types.



5. Data sources can be referenced in the workspace assembly.



   The code example above allows the OneStream cloud to communicate with the non-public data sources.

   The example in the image below is a dynamic hierarchy assembly that accesses a data source with a Smart Integration Connector.



   In this example, the name of the Smart Integration Connector gateway connection is SaybrookAWD.

Master Data Considerations

Dynamic cubes and dynamic dimensions let you dynamically add members from external systems. Master data can then be managed by a central master data tool.

Obtaining data from external systems may introduce member names that already exist in the system. Depending on the configuration of the data sources, this means that you might have existing members with the same name, but with different meanings and could lead to misinterpretation of data sets. For example, you could have a product member by the name of 10000 with a description of Widgets. An external data source might also have a product member named 10000, but in this external system, the member descriptions are Pencils. This could occur with multiple external data sources.

Use a master data tool to manage all of this for you so that members have the same meaning across the enterprise.

Dynamic Dimension Use Cases

Dynamic Dimensions can be created from external sources that feed into dynamic cubes, or to define volatile structures with existing members.

Cube filters let you exclude a member, or multiple members and dimensions. This allows you to perform data analysis for various scenarios. For example, you can exclude a member when considering the discontinuation of an operation.

Dynamic Cube Use Cases

Large data units can impact application reporting performance. Dynamic Cubes can focus the data unit on filtered intersections of data. The focused data unit can return a smaller subset of data across all scenarios, as defined by cube properties.

Dynamic Cubes can also be defined using stage attributes, marketplace registers, and custom datatables; this can enable easy reporting of non-cube data using cube-based tools like the Excel Add-in, cube views, and so on.

Dynamic Cubes can be used to expose data produced by BI Blend as cubes, making it easier to mix with existing cube data. For best results, ensure the following:

• Align the blend unit with the entity to pre-aggregate results

• Leverage cube dimensions for transformation and aggregation points

• Build aggregation points as derivative rules for pre-aggregated values

• Use UD8 aggregation info in a dynamic dimension to generate metadata and aggregations

• Plan required calculations using derivative rules and dynamic dimension member formulas

Dynamic cubes used with external relational tables require Smart Integration Connector for non-public facing sources.

Dynamic Cube Services API Reference

This guide includes classes required for implementation of Dynamic Cube Services.

Common Arguments

The following argument types are common to multiple methods and services.

Services

Dynamic Cube Services must be enabled via a Service Factory. See the section on Configuring a Service Factory for more details on the overall approach.

Dynamic Dimension Service

This type of service is responsible for creating and refreshing a Dynamic Dimension. It should be returned by the Service Factory when an instance of type WsAssemblyServiceType.DynamicDimension is requested.

It must implement interface IWsasDynamicDimensionV800, which requires the following methods:

ReadDynamicDimensionContentTimestamp

Return Type: DateTime

This method returns a timestamp representing the last time the dimension has changed. If the system receives a timestamp more recent than the one associated with the last execution of ReadDynamicDimensionInfo, that method is executed again to rebuild the dimension.

ReadDynamicDimensionContentTimestamp will be executed at periodic intervals, as specified by the DynamicDimensionInfo object returned by ReadDynamicDimensionInfo. In addition, different application servers might execute it at different times, and it might be triggered by a number of internal events. For this reason, it is recommended to keep its execution time as short as possible (i.e. very simple logic, few or no I/O calls, etc), to avoid impacting system performance.

Note that individual application servers maintain their memory separately, so they might execute this method at different times, potentially returning different timestamps and hence letting users work with different hierarchies. Cache coordination can be implemented with custom logic between this method and ReadDynamicDimensionInfo.

Specific Arguments

api As IWsasDynamicDimensionApiV800 - see the related section

args As DynamicDimensionArgs - see the related section

ReadDynamicDimensionInfo

Return Type: DynamicDimensionInfo

This method is responsible for creating and returning the DynamicDimensionInfo object representing the generated Dimension. It will be executed the first time the dimension is requested; the resulting object will be kept in the application server memory until its timestamp is found older than the one returned by a call to ReadDynamicDimensionContentTimestamp, at which point it will be discarded and replaced with a new execution of this method.

Note that individual application servers maintain their memory separately, so they might execute this method at different times, potentially producing different hierarchies. Cache coordination can be implemented with custom logic between this method and ReadDynamicDimensionContentTimestamp.

Specific Arguments

api As IWsasDynamicDimensionApiV800 - see the related section

args As DynamicDimensionArgs - see the related section

Service-specific arguments

Api as IWsasDynamicDimensionApiV800

This object provides various utilities for building and maintaining dynamic dimensions.

Methods

ReadDynamicDimensionInfo

Return Type: DynamicDimensionInfo

This method will build the entire hierarchy by executing an SQL query and mapping the resulting columns to member properties. It is not compulsory to use this function, but it is recommended whenever source member definitions are in SQL tables. Note that items can be further customized by manipulating the returned object.

Specific Arguments:

DateTime contentTimestamp

The Timestamp to associate with this execution. As long as it continues to be more recent than what returned by ReadDynamicDimensionContentTimestamp, the system will not refresh the dimension.

Int numSecondsBeforeReadingContentTimestamp

How often, in seconds, the server should call RadDynamicDimensionContentTimestamp to verify cache validityi

DbConnInfo dbConnExt

Open connection to the database where the query will be executed. Please consider creating it with a Using block, for safety.

string selectStatement

The SELECT statement to execute.
Note that WHERE and ORDER BY clauses should be omitted, and provided separately with their dedicated arguments listed below; this will allow for performance optimizations in the background.

List<DbWhere> dbWheres

WHERE clauses to be appended to the query, added to a List. For example a clause like "WHERE isEnabled = 'true' " should be expressed as:

Dim dbWheres as new List(Of DbWhere)dbWheres.Add(New DbWhere("isEnabled", DbOperator.IsEqualTo, "true")

List<DbOrderBy> dbOrderBys

ORDER BY clauses to be appended to the query, added to a List. Ordering records will influence the position of Members in the generated dimension.

For example, a clause like "ORDER BY Name ASC" should be expressed as:

Dim dbOrderBys As New List(Of DbOrderBy)dbOrderBys.Add(New DbOrderBy("Name", True))

string memberNameColumn

Name of the table field that contains member names.

string memberDescriptionColumn,

Name of the table field that contains member descriptions.

string externalMemberIdColumn,

Name of the table field that contains individual IDs for each member as present in the source system. OneStream will generate its own set of IDs, that will be automatically associated with the external ones in order to maintain a relationship with the source definitions.

string externalMemberNameColumn

name of the table field that contains member names as they appear in the source system. Note that it can be the same as memberNameColumn.

string parentMemberNameColumn

name of the table field that contains the names of the direct parent of a member. This will be used to build the hierarchy.

string parentExternalMemberIdColumn

name of the table field that contains the ID of the direct parent of a member, as it appears in the source system. If present, it will be used to build the hierarchy, taking precedence over parentMemberName and parentExternalMemberName.

string parentExternalMemberNameColumn

name of the table field that contains the name of the direct parent of a member, as it appears in the source system. If present, it will be used to build the hierarchy, taking precedence over parentMemberName.

string aggWeightColumn

name of the table field that will contain values to be used for the Aggregation Weight property of parent-child relationships.

bool aggWeightIsPercentageNotFraction

Boolean to specify whether the values found in aggWeightColumns are percentages (for example, 75) or fractions (for example, 0.75).

CreateAndAddDynamicMembers

This method can create several Dynamic Members starting from a source DataTable, adding them to a DynamicMemberCollection instance.

Specific arguments

DataTable dataTable

The DataTable object containing member data.

string memberNameColumn

Name of the table field that contains member names.

string memberDescriptionColumn,

Name of the table field that contains member descriptions.

string externalMemberIdColumn,

Name of the table field that contains individual IDs for each member as present in the source system. OneStream will generate its own set of IDs, that will be automatically associated with the external ones in order to maintain a relationship with the source definitions.

string externalMemberNameColumn

name of the table field that contains member names as they appear in the source system. Note that it can be the same as memberNameColumn.

DynamicMemberCollection dynamicMembers

The collection object that will receive newly-created members.

CreateAndAddDynamicRelationships

This method can create several DynamicRelationships and add them to a DynamicRelationshipCollection object, starting from a DataTable that expresses such relationships. Note that any Dynamic Member involved must already exist in a DynamicMemberCollection object. See the sections on DynamicRelationship and DynamicRelationshipCollection for other details.

Specific arguments

DataTable dataTable

The datatable object containing relationship information.

DynamicMemberCollection dynamicMembers

The collection object containing all DynamicMembers referenced in the relationships. See the relevant section.

string memberNameColumn

Name of the table field that contains member names.

string externalMemberIdColumn,

Name of the table field that contains individual IDs for each member as present in the source system. OneStream will generate its own set of IDs, that will be automatically associated with the external ones in order to maintain a relationship with the source definitions.

string externalMemberNameColumn

name of the table field that contains member names as they appear in the source system. Note that it can be the same as memberNameColumn.

string parentMemberNameColumn

name of the table field that contains the names of the direct parent of a member. This will be used to build the hierarchy.

string parentExternalMemberIdColumn

name of the table field that contains the ID of the direct parent of a member, as it appears in the source system. If present, it will be used to build the hierarchy, taking precedence over parentMemberName and parentExternalMemberName.

string parentExternalMemberNameColumn

name of the table field that contains the name of the direct parent of a member, as it appears in the source system. If present, it will be used to build the hierarchy, taking precedence over parentMemberName.

string aggWeightColumn

name of the table field that will contain values to be used for the Aggregation Weight property of parent-child relationships.

bool aggWeightIsPercentageNotFraction

Boolean to specify whether the values found in aggWeightColumns are percentages (for example, 75) or fractions (for example, 0.75).

DynamicRelationshipCollection dynamicRelationships

The collection object that will receive newly-created relationships. See the relevant section.

Args as DynamicDimensionArgs

This object provides context-specific properties of the dimension.

Properties

• Dim: Dim

  • Description: Generic properties for the dimension, including source configuration. Name Value Pairs defined on the Dimension configuration can be found in its DimMemberSourceNVPairs property1.

• CachedDynamicDimensionInfo: DynamicDimensionInfo

  • Description: The dimension structure as it currently exists in cache. Note that this object can be null (for example, on first execution on a given appserver)

Dynamic Data Service

This service is responsible for creating and refreshing a Dynamic DataUnit for a Dynamic Cube. It should be returned by the Service Factory when an instance of type WsAssemblyServiceType.DynamicData is requested.

It must implement interface IWsasDynamicDataV800, which requires the following methods:

ReadDynamicDataUnitContentTimestamp

Return Type: DateTime

This method returns a timestamp representing the last time the dimension has changed. If the system receives a timestamp more recent than the one associated with the last execution of ReadDynamicDataUnitData, that method is executed again to rebuild the dimension.

ReadDynamicDataUnitContentTimestamp will be executed at periodic intervals, as specified by the DynamicDataUnitData object returned by ReadDynamicDataUnitData. In addition, different application servers might execute it at different times, and it might be triggered by a number of internal events. For this reason, it is recommended to keep its execution time as short as possible (i.e. very simple logic, few or no I/O calls, etc), to avoid impacting system performance.

Note that individual application servers maintain their memory separately, so they might execute this method at different times, potentially returning different timestamps and hence letting users work with different data. Cache coordination can be implemented with custom logic between this method and ReadDynamicDataUnitData.

Specific Arguments

api As FinanceRulesApi - see related section

dynamicDataBindingInfo As DynamicDataBindingInfo - see related section

ReadDynamicDataUnitData

Return Type: DynamicDataUnitData

This method is responsible for creating and returning the DynamicDataUnitData object representing the generated DataUnit. It will be executed the first time data is requested; the resulting object will be kept in the application server memory until its timestamp is found older than the one returned by a call to ReadDynamicDataUnitContentTimestamp, at which point it will be discarded and replaced with a new execution of this method.

Note that individual application servers maintain their memory separately, so they might execute this method at different times, potentially producing different data. Cache coordination can be implemented with custom logic between this method and ReadDynamicDataUnitContentTimestamp.

Specific Arguments

api As FinanceRulesApi - see related section

dynamicDataBindingInfo As DynamicDataBindingInfo - see related section

SaveDynamicDataCells

This method can be used to receive data entered by users through a Cube View or Form, and save it to a source system or table.

IMPORTANT: DO NOT WRITE INTO INTERNAL ONESTREAM TABLES. Always save data in custom tables or external systems.

Specific Arguments

cube As Cube

Object representing Cube information and configuration.

scenario As Member

The Scenario containing modified cells.

dynamicDataBindingInfo As DynamicDataBindingInfo

see related section

dataCellExs As List(Of DataCellEx)

List of datacells containing submitted data.

Service-specific arguments

api As FinanceRulesApi

This object contains methods and properties typically used in Finance Business Rules, see the generic API Guide for details.

IMPORTANT: although the object contains several "Set" methods to save data into cubes (api.Data.SetDataCell etc), they should NEVER be invoked in this service.

dynamicDataBindingInfo As DynamicDataBindingInfo

This object contains information related to the configuration of the dynamic cube. Note that this is also available in Hybrid Scenario rules. All properties are Read-Only.

Properties

• IsCubeNotScenarioDataBinding: Boolean

  • Indicates whether the binding is used in a Dynamic Data Service (True) or in a Hybrid Scenario Business Rule (False).

• DataBindingType: DynamicDataBindingType

  • Represents the value of the "Data Binding Type" property.

• SourceCubeOrScenarioOrBRName: String

  • Contains the value of the "Source Cube or Workspace Assembly" property for cubes, or the "Source Scenario or Workspace Assembly" property for scenarios.

• MemberFilters: String

  • Description: Holds the value of the "Member Filters" property.

• MemberFiltersToExclude: String

  • Value of property "Member Filters to Exclude"

• PreAggregatedMembers: String

  • Value of property "Pre-aggregated Members"

• EndYear: int

  • In Hybrid Scenario Business Rules, the last Year containing data retrieved from Source

• Options: String

  • Value of property "Options"

• OptionsNameValuePairs: IReadOnlyDictionary(Of String, String)

  • Value of property "Options", parsed as a collection of Name-Value Pairs

Related Classes

The following object types are necessary to most Dynamic Cube Services implementations.

NOTE: In the descriptions below, basic methods and properties (for example, ToString) have been omitted.

NOTE: Implementations typically require knowledge of other classes and BRApi functions, typically found in Finance Business Rule (Member, DataCell, etc) and Connector Business Rules (DbConnInfo, etc).

DataBufferCellPk Class

The DataBufferCellPk class is responsible for managing primary keys for data buffer cells, i.e. the combination of dimension members that points to an individual value. This is the same class typically found in advanced Finance Business Rules related to calculations.

Properties

Constructors

Methods

DataCacheCell Class

The DataCacheCell class represents a DataCell kept in memory.

Properties

Constructors

Methods

DataRecord Class

DataRecord objects represent a record in the DataUnit. Each record points to a specific combination of members for all dimensions, and contains all values of that intersection in a single year.

Properties

Constructors

Methods

DataRecordPk Class

The DataRecordPk class is responsible for managing primary keys for data records, which means holding references to the dimension members defining the intersections that the record will contain.

Properties

Constructors

DynamicDataUnitData

The DynamicDataUnitData class represents a DataUnit, which contains all records pointing to a specific Scenario/Entity/Year combination.

Properties

Constructors

Methods

DynamicDimensionInfo

The DynamicDimensionInfo class represents a generated dimension.

Properties

Constructors

• DynamicDimensionInfo(DateTime contentTimestamp, int numSecondsBeforeReadingContentTimestamp, DynamicMemberCollection members, DynamicRelationshipCollection relationships)

Initializes a new instance of the DynamicDimensionInfo class with the specified content timestamp, number of seconds before reading the content timestamp, dynamic members, and dynamic relationships.

DynamicMember

The DynamicMember class represents a single member of a Dynamic Dimension. It is effectively a wrapper around a regular Member object. In most cases, developers should obtain DynamicMember instances from the utility methods of a DynamicMemberCollection object.

IMPORTANT: if creating a Member instance from scratch, you should generate a unique ID with the GetOrCreateMemberId method from a DynamicMemberCollection object.

Properties

Constructors

DynamicMemberCollection

The DynamicMemberCollection class contains all members that will be available in a dynamic dimension. Optionally, it will maintain a set of mappings between members and their related information in an external system. The class also contains a number of utility methods to create Dynamic Members that can be added to the collection.

Properties

Constructors

Methods

DynamicRelationship

The DynamicRelationship object represents a relationship between a parent DynamicMember and child DynamicMember, including the aggregation weight.

Properties

Constructors

DynamicRelationshipCollection

The DynamicRelationshipCollection class is responsible for managing all relationships in a Dynamic Dimension. It contains a number of utility methods for creating Relationships, which can be added to the actual collection.

Properties

Constructors

Methods

BI Blend

BI-Blend is a “read-only” aggregate storage model that supports large-volume reporting for data that is not appropriate to store in a traditional Cube.  BI Blend data is large in volume and often transactional. For example, to analyze data by invoice, a standard cube requires metadata to store the data records.  Soon, most of the invoice metadata would not be needed given the transactional nature of the data. Therefore, storing transaction data in a Cube design is not a best practice.

A key challenge of reporting on transactional data is presenting data in a uniform format for standardized reporting, while flexibility supporting ever changing records and reporting requirements.  The overall large size of the data sets requires a model suitable for responsive reporting and analysis.

The BI Blend solution approaches these challenges in a unique and innovative way.  BI Blend rationalizes source data for uniform and standardized reporting, like the Standard Cube models, but stores the data in a new relational column store table for responsive reporting.

Use BI-Blend to analyze large volumes of highly changing data, such as ERP system transaction data, which typically would not reside in a Cube.  Processing is free from the intensive audit controls within a traditional Consolidation Cube, such as managing calculation status.

Key Elements of BI Blend

• Flexible for change

• Fast Aggregation (through data as Stored Relational Aggregation)

• Single Reporting Currency translation

• Leveraged Metadata, Reporting and Integration tools

• Non-Cube, executed to a relational table optimized for reporting on large data sets by storing results in a column store index

For more information, see the BI Blend Design and Reference Guide.

Relational Blending

The dynamic blending of data stored in a relational database with data stored/derived by the in-memory analytic engine is supported.

Relational blending is a data management approach.  This enables analytic modelers to better manage the trade-offs between building unsustainable/poor performing complex analytic models that contain too much detail and the need to report on that level detail (data that may be transactional in nature or constantly changing).  Relational Blending makes it possible to seamlessly integrate detail data points into the analytic reporting process.

Relational Blending Types

There are three methods of relational blending.

1. Drill-Back Blending (One-to-Many Relationship)
   This method of relational blending is used to provide access to detailed information that does not exist in the analytic model.  This capability is delivered right out-of-the box with its predefined drill back to stage detail data.  In addition, the stage integration engine provides drill-back and drill-around capabilities against external data.

2. Application Blending (One-to-Many Relationship)
   This method of relational blending leverages theOneStream Solution Specialty Planning and Compliance applications.  This collects information in a transactional register format and seamlessly maps/loads summarized data into an analytic model.  These applications also provide predefined transactional level reports as well as predefined drill-back connectors allowing drill-down from a summarized analytic model to the detailed register transaction data.

3. Model Blending (One-to-One Relationship)
   This method of relational blending combines the power of the in-memory analytic engine with the flexibility of relational database storage.  This functionality is provided as part of the Finance Engine API and the functions can be found under the api.Functions path in a Finance Business Rule.

Model Blending

The following sections provide sample use-cases and explanations of how Model Blending is used to seamlessly integrate relational data points into an analytic model using Dynamic Member Calculations that leverage the relational blending API functions of the finance engine.

A common challenge in analytic modeling is how to build a sustainable model when the definition of metadata and data becomes blurred.  The two use cases below provide examples of this modeling challenge.

Use Case 1

In many cases, analytic modelers are faced with the challenge of building a model containing Dimension Members that are unknown at design time or forced to build a Dimension containing Members that will be constantly changing.  Without relational blending, analytic modelers are forced to build models full of unknown members (TBD1, TBD2, etc.) with the hopes that users of the system do not need values beyond these placeholder members.  (This data is transactional and not a good candidate for an analytic model, Workforce Planning is a good example of this problem)

This is a one-to-many issue so Drill-Back and Application Blending work well if the summary Cube is the primary focus of analysis and transactions are only used for supporting details.  Model blending can provide a benefit as well, but keep in mind that model blending must relate an analytic cell POV to a relational row or summarized row (one-to-one).  For Model Blending to be useful in these circumstances, the relational data must be returned in an aggregate format (avg, min, max, sum, count) in order to reduce the one-to-many relationship to a one-to-one Relationship.

Use Case 2

Analytic models that depend on Dimensions with Members that are constantly changing.  Consider business problem where the analytic model is based on a fixed number of members (facility with rooms and beds).  This is easy from a modeling perspective; however, the user requirement is to build a model that is aware of the current occupant of the bed.  The logical metadata definition is room/bed, but the business problem requires the “occupant” to be defined as a Member for the model to be meaningful.  If occupant is used as a Member in the model, it is almost guaranteed that the analytic model will eventually become unsustainable due to the changing nature of the room/bed/occupant Dimension.  The administrator of this model now has the burden of constantly changing and rebuilding the model to reflect the current occupant data.

This is a one-to-one issue, so Model Blending fits well and provides a tremendous amount of value.  Detailed and changing information can be continuously loaded and updated as attribute information in the OneStream Staging tables, Custom Relational Tables and the Model Blending API can be used to dynamically incorporate this information into analytic model through dynamic member formulas.

Model Blending Benefits

Relational blending is similar to the OneStream Staging engine in that it is a tool to protect the analytic engine.  Analytic modelers are aware that there is a powerful force with which they must contend when they are trying to create a well-designed, well-performing and maintainable model.  That powerful force is Factorial Combination Math.  Analytic modelers understand that numbers of possible cells in a model (combinations) is determined by the number of Members in each Dimension multiplied by each other (1,000 Accounts x 100 Cost Centers x 10,000 Employees x 20 Regions = 20 billion combinations).  This phenomenon means that analytic modelers are in a constant battle.  They are trying to capture the data points required to understand the business process being modeled and model performance challenges created by the computational physics of factorial combination math.  In summary, it is easy to create an analytic model with a massive number of potential cells and as a result, end up with a poor performing model.

Relational blending can help keep the size of an analytic model to a manageable level by allowing leaf level members to be kept in the relational table and only keeping summarize/static Members in the analytic model definition (Dimension Members).  Relational blending is not a cure-all, but it is an important tool for building maintainable well performing analytic models when a model has some dependencies on detailed information that cannot be clearly defined as metadata or data.  In other words, the information is useful in the model, but it is so detailed or changes so much that it is difficult to incorporate into a rational metadata structure.

Relational Blending API

The Relational Blending API functions listed below can be used to efficiently lookup a value in a cached relational table. This is based on the current POV values of the analytic engine or by providing specific override values for the Cube Name, Entity Name, Scenario Name, Time Name and Account Name. It is important to understand how caching of the data table is done.The CacheLevel parameter is used to control the cache granularity which will in turn control cache efficiency. To choose the most efficient CacheLevel value, determine how the data will be used in a Cube View. If the primary Cube View data request will be on a single data unit (Entity, Scenario, Time), then the best cache level choice would be BlendCacheLevelTypes.WfProfileScenarioTimeEntity.

This is an efficient choice because the first time a cell is requested for the Entity, Scenario, Time combination, a query will run to load all the stage data for the combination. Then all subsequent cell requests would read values from cache. On the other hand, if the primary Cube View data request is for multiple Entities, then BlendCacheLevelTypes.WfProfileScenarioTime cache level would be a more efficient choice. This is more efficient because a single query would run to load all the data for the Scenario and Time into cache and then all subsequent cell requests would read values from cache. As a cautionary note, be aware that using coarse cache levels (reading more data at once into cache) only benefits performance when the target Cube View can read many values for the cache. If the target Cube View is only focused on one Entity/Account and the BlendCacheLevelTypes.WfProfileScenarioTime cache level is chosen, all rows for the entire Scenario and Time would need to be read into memory when only values for one Entity/Account combination was needed. In this case, BlendCacheLevelTypes.WfProfileScenarioTimeEntityAccount would be a more efficient cache level.

In summary, choose a cache level that will minimize the number of actual database queries needed to run in order to get the desired cells for the target Cube View. This is not an exact science, and it may be difficult to choose a cache level that works efficiently for all target Cube Views. If there is a diverse set of Cube Views using relational blend data, consider creating specific Members that implement different cache levels that match the Cube View data pattern.

Cache Level Types

BlendCacheLevelTypes.WfProfileScenarioTime

Query will be run and cached using the supplied Workflow Profile, POV Scenario and POV Time as criteria and cache key.

BlendCacheLevelTypes.WfProfileScenarioTimeEntity

Query will be run and cached using the supplied Workflow Profile, POV Scenario, POV Time and POV Entity as criteria and cache key.

BlendCacheLevelTypes.WfProfileScenarioTimeAccount

Query will be run and cached using the supplied Workflow Profile, POV Scenario, POV Time and POV Account as criteria and cache key.

BlendCacheLevelTypes.WfProfileScenarioTimeEntityAccount

Query will be run and cached using the supplied Workflow Profile, POV Scenario, POV Time, POV Entity and POV Account as criteria and cache key.

BlendCacheLevelTypes.Custom

Intended to be used with custom table query (Cache level is explicitly controlled by the supplied SQL query). Query will be run and cached using the supplied cache name.

Relational Model Blending API Functions

GetStageBlendTextUsingCurrentPOV

Function Prototype

Public Function GetStageBlendTextUsingCurrentPOV (ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String, ByVal criteria As String, ByVal fieldToReturn As String, ByVal textOperation As BlendTextOperationTypes) As String

Description

Read a stage text attribute value from a cached ado.net data table using the current POV values and optionally perform concatenation on the results.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cacheLevel

Cache granularity level used to control how much information is cached in each chunk (Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary).

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up. (Pass an empty String to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix.)

fieldList

List of STAGE fields that will be used as criteria and/or returned.

Criteria

Criteria statement used to select rows in the cached data table.

fieldToReturn

Name of the stage field to return.

textOperation

Text operation to perform on the resulting data table (Note: FirstValue returns the first matching row if there is more than one stage value for the specified cell).

Return Type
String

Example

'UD8 DynamicCalc - Lookup Attribute 1 From Stage
If Not api.Entity.HasChildren Then
Dim criteria As New Text.StringBuilder
criteria.Append("U1T = '" & api.Pov.UD1.Name & "' ")
criteria.Append("And U2T = '" & api.Pov.UD2.Name & "' ")
Return api.Functions.GetStageBlendTextUsingCurrentPov(BlendCacheLevelTypes.
        WfProfileScenarioTimeEntity, "DU",
        "*.Sales Detail", "U1T,U2T,A1,ConvertedAmount", criteria.ToString,
            "A1", BlendTextOperationTypes.FirstValue)

Else
Return String.Empty
End If

GetStageBlendText

Function Prototype

Public Function GetStageBlendText (ByVal cubeName As String, ByVal entityName As String, ByVal scenarioName As String, ByVal timeName As String, ByVal accountName As String, ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String, ByVal criteria As String, ByVal fieldToReturn As String, ByVal textOperation As BlendTextOperationTypes) As String

Description

Read a stage text attribute value from a cached ado.net data table using the specified POV values and optionally perform concatenation on the results.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cubeName

Name of the Cube to use for the POV.

entityName

Name of the Entity to use for the POV.

scenarioName

Name of the Scenario to use for the POV.

timeName

Name of the Time to use for the POV.

accountName

Name of the Account to use for the POV.

cacheLevel

Cache granularity level used to control how much information is cached in each chunk (Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary).

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up (Pass an empty String if to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix).

fieldList

List of Stage fields that will be used as criteria and/or returned.

Criteria

Criteria statement used to select rows in the cached data table.

fieldToReturn

Name of the Stage field to return.

textOperation

Text operation to perform on the resulting data table (Note: FirstValue returns the first matching row if there is more than one stage value for the specified cell).

Return Type
String

GetStageBlendNumberUsingCurrentPOV

Function Prototype

Public Function GetStageBlendNumberUsingCurrentPOV(ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String, ByVal criteria As String, ByVal fieldToReturn As String, ByVal mathOperation As BlendNumericOperationTypes) As Decimal

Description

Read a stage numeric attribute value from a cached ado.net data table using the current POV values and optionally perform aggregation math on the results.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cacheLevel

Cache granularity level used to control how much information is cached in each chunk (Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary).

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up (Pass an empty String if you want to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix).

fieldList

List of stage fields that will be used as criteria and/or returned.

criteria

Criteria statement used to select rows in the cached data table.

fieldToReturn

Name of the stage field to perform math on and return.

mathOperation

Math operation to perform on the resulting data table (Note: FirstValue returns the first matching row if there is more than one stage value for the specified cell).

Return Type
Decimal

Example

'UD8 DynamicCalc - Lookup Average ConvertedAmount From Stage
If Not api.Entity.HasChildren Then
    Dim criteria As New Text.StringBuilder
    criteria.Append("U1T = '" & api.Pov.UD1.Name & "' ")
    criteria.Append("And U2T = '" & api.Pov.UD2.Name & "' ")
    Return api.Functions.GetStageBlendNumberUsingCurrentPov(BlendCacheLevelTypes.
    WfProfileScenarioTimeEntity, "DU",
    "*.Sales Detail", "U1T,U2T,A1,ConvertedAmount", criteria.ToString,
        "ConvertedAmount",
    BlendNumericOperationTypes.AverageSkipZero)
Else
    Return 0
End If

GetStageBlendNumber

Function Prototype

Public Function GetStageBlendNumber(ByVal cubeName As String, ByVal entityName As String, ByVal scenarioName As String, ByVal timeName As String, ByVal accountName As String, ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String, ByVal criteria As String, ByVal fieldToReturn As String, ByVal mathOperation As BlendNumericOperationTypes) As Decimal

Description

Read a stage numeric attribute value from a cached ado.net data table using the specified POV values and optionally perform aggregation math on the results.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cubeName

Name of the Cube to use for the POV.

entityName

Name of the Entity to use for the POV.

scenarioName

Name of the Scenario to use for the POV.

timeName

Name of the Time to use for the POV.

accountName

Name of the Account to use for the POV.

cacheLevel

Cache granularity level used to control how much information is cached in each chunk. Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary.

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up. Pass an empty String to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix.

fieldList

List of Stage fields that will be used as criteria and/or returned.

criteria

Criteria statement used to select rows in the cached data table.

fieldToReturn

Name of the stage field to perform math on and return.

mathOperation

Math operation to perform on the resulting data table

NOTE: FirstValue returns the first matching row if there is more than one stage value for the specified cell

Return Type
Decimal

GetStageBlendDataTableUsingCurrentPOV

Function Prototype

Public Function GetStageBlendDataTableUsingCurrentPOV(ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String) As DataTable

Description

Read stage data into a cached ado.net data table using the current POV values so that it can
be Queried / Analyzed in memory on the application server.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cacheLevel

Cache granularity level used to control how much information is cached in each chunk (Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary).

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up (Pass an empty String to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix).

fieldList

List of Stage fields that will be used as criteria and/or returned.

Return Type
DataTable

Example

'Lookup Attribute 1 From Stage Cached Data Table
If Not api.Entity.HasChildren Then
        Dim result As String = String.Empty

'Get the DataTable from cache
Using dt As DataTable = api.Functions.GetStageBlendDataTableUsingCurrentPov(BlendCacheLevelTypes.WfProfileScenarioTimeEntity, "DU", "*.Sales Detail", "U1T,U2T,A1,ConvertedAmount")
    If Not dt Is Nothing Then
    'Execute a query against the data table and return the first matching row
    Dim criteria As New Text.StringBuilder
    criteria.Append("U1T = '" & api.Pov.UD1.Name & "' ")
    criteria.Append("And U2T = '" & api.Pov.UD2.Name & "' ")
    Dim rows As DataRow() = dt.Select(criteria.ToString)
    If rows.Count > 0 Then
    result = rows(0)("A1")
        End If
      End If
  End Using
  Return result
Else
    Return String.Empty
End If

GetStageBlendDataTable

Function Prototype

Public Function GetStageBlendDataTable(ByVal cubeName As String, ByVal entityName As String, ByVal scenarioName As String, ByVal timeName As String, ByVal accountName As String, ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal wfProfileName As String, ByVal fieldList As String) As DataTable

Description

Read stage data into a cached ado.net data table using the specified POV values so that it can be Queried / Analyzed in memory on the application server.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cubeName

Name of the Cube to use for the POV.

entityName

Name of the Entity to use for the POV.

scenarioName

Name of the Scenario to use for the POV.

timeName

Name of the Time to use for the POV.

accountName

Name of the Account to use for the POV.

cacheLevel

Cache granularity level used to control how much information is cached in each chunk. (The less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary.)

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

wfProfileName

Name of the Import Workflow profile containing the values to be looked up (Pass an empty String to look up the workflow based on the POV Entity, use *.YourWFSuffix to get workflow profiles with the specified suffix).

fieldList

List of Stage fields that will be used as criteria and/or returned.

Return Type
DataTable

GetCustomBlendDataTableUsingCurrentPOV

Function Prototype

Public Function GetCustomBlendDataTableUsingCurrentPOV(ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal sourceDBLocation As String, ByVal sourceSQL) As DataTable

Description

Read data from a custom table into a cached ado.net data table using the current POV values so that it can be Queried / Analyzed in memory on the application server.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cacheLevel

Cache granularity level used to control how much information is cached in each chunk (Less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary).

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

sourceDBLocation

Database location name to query (Application, Framework, or a Named External Connection).

sourceSQL

SQL statement that defines the DataTable to cache for in memory querying.

Return Type
DataTable

Example:

'Lookup Invoice Number From a Custom Table
If Not api.Entity.HasChildren Then
        Dim result As String = String.Empty

        Dim queryToCache As New Text.StringBuilder
        queryToCache.Append("Select * ")
          queryToCache.Append("From InvoiceMaterialDetail ")
          queryToCache.Append("Where PlantCode = 'H200' And CustId = 'NH2421' And    InvYear = 2011
        and InvMonth = 'M3'    ")
'Get the DataTable from cache
Using dt As DataTable =  api.Functions.GetCustomBlendDataTableUsingCurrentPov(BlendCacheLevelTypes.
    Custom, "Material",
    "Revenue Mgmt System", QueryToCache.ToString)
    If Not dt Is Nothing Then
'Execute a query against the CUSTOM data table and return column InvNo for the first matching  row
    Dim criteria As New Text.StringBuilder
     criteria.Append("WorkDay = 15")
    Dim rows As DataRow() = dt.Select(criteria.ToString)
    If rows.Count > 0 Then
    result = rows(0)("InvNo")
    End If
    End If
End Using
   Return result
Else
    Return String.Empty
End If

GetCustomBlendDataTable

Function Prototype

Public Function GetCustomBlendDataTable(ByVal cacheLevel As BlendCacheLevelTypes, ByVal cacheName As String, ByVal sourceDBLocation As String, ByVal As String) As DataTable

Description

Read data from a custom table into a cached ado.net data table using the specified POV values so that it can be Queried / Analyzed in memory on the application server.

NOTE: Cache only lives for the duration of the WCF call.

Parameters

cacheLevel

Cache granularity level used to control how much information is cached in each chunk. (The less granular cache level helps repeated calls but hurts requests for a single cell because more data is cached than necessary.)

cacheName

Short name used to identify the values placed in the cache (Full CacheID will be CacheName + CacheLevel Values).

sourceDBLocation

Database location name to query (Application, Framework, or a Named External Connection).

sourceSQL

SQL statement that defines the DataTable to cache for in memory querying.

Return Type

DataTable

Formulas

A formula is a set of calculation instructions to compute values. Formulas are written using Microsoft Visual Basic .NET procedures that use OneStream API function libraries and member script expressions. These combined capabilities provide a powerful programming environment delivering reliable compiled formula definitions.

Formula Structure

Microsoft Visual Basic.NET With OneStream API and Member Scripts

All formulas and business rules run as compiled VB.NET code. In a VB.NET function or subroutine, calls are made to specific API functions which enable the rule writer to interact with the Analytic Engine.  Specific API functions are used to process member script expressions, and create calculated values in the analytic data model.

Common Finance APIs That Use Member Scripts

api.Data.GetDataCell(“A#Cash”)

This returns a single numeric cell value.

api.Data.GetDataCellEx(“A#Cash”)

This returns a single numeric or text cell value.

api.Data.SetDataCell(“A#Cash”, 5.00, False)

This saves/writes a single data cell value.

api.Data.Calculate(“A#Cash = A#Sales * 0.10”)

This saves multiple data cells as stored values.

Basic Dynamic Cell Calculation

The following return a single cell.

Calculate Current Ratio

Return api.Data.GetDataCell("A#15000:O#Top / A#22000:O#Top")

Formula Composition:

VB.NET     Language Keyword(s)
Return

OneStream API    Function

api.Data.GetDataCell("Member Script”)

OneStream Member Script

A#15000:O#Top / A#22000:O#Top

TIP: When using a nested function (YearPrior(|POVTime|) in a GetDataCell call, you must enclose the function in square brackets []. This is necessary because GetDataCell and the functions use “(“and “)” as indicators of the start/end points in the script. The inner functions must be wrapped in square brackets.
GetDataCell("S#[|!ScenarioActual_GRT!|]:T#[YearPrior1(|CVTime|)][Period(|CVTime|)]"):Name("PYR Var")

Basic Stored Calculation

The following calculate and store multiple cells.

Pull Prior Period Retained Earnings

api.Data.Calculate("A#28000 = A#28999:T#POVPrior1")

Formula Composition

OneStream API    Function
api.Data.Calculate("Member Script”)

Member Script

A#28000=A#28999:T#POVPrior1

You can use formula variables in member scripts to significantly improve performance when the same formula is used for multiple members. When using formula variables, the formula text remains the same, so there is no need for continued parsing and evaluation.

Using variables can also improve performance if a member Id is used instead of a member name as the ID can also be used as the value in a formula variable. To use a formula variable in a member script, use a dollar sign $ instead of a pound # sign before the member name, and use the variable name after the dollar sign.

Example 1

api.Data.FormulaVariables.SetTextVariable(“variableAccount”, “8150”)
api.Data.Calculate(“A#8250=A$variableAccount * 10”)

Example 2

Dim acctMember As Member = api.Members.GetMember(DimType.Account.Id, “8150”)
api.Data.FormulaVariables.SetMemberVariable(“variableAccount”,acctMember)
api.Data.Calculate(“A#8250= A$variableAccount * 100”)

Example 3

Dim acctMember As Member = api.Members.GetMember(DimType.Account.Id, “8150”)
Dim acctId As Integer = acctMember.MemberId
api.Data.FormulaVariables.SetIntegerVariable(“myAccount”,acctId)
api.Data.Calculate(“A#8250 = A$myAccount * 1000”)

Applying Formulas

An administrator can create a formula on a Dimension Member or in a Business Rule.

Member Formulas

The preferred and more common approach is to write formulas on Dimension Members. Member formulas are written using the Formula property on individual Scenario, Account, Flow, or User Defined Members in the Dimension Library. The primary reasons for writing formulas on Dimension Members are they provide intuitive formula organization and promote reusability of Dimension and Members with their associated calculation across multiple Cubes.  They also enable parallel processing for performance optimizations using advanced multi-threading that executes multiple formulas at the same time.  Finally, writing formulas on Dimension Members support drill down from a calculated amount to the amount used as the source for calculation and they support the ability to vary formulas by Scenario and Time.  This is useful because changes can be made without affecting the calculation for older data or data in other Scenarios.

Finance Business Rules

Formulas can also be written using one or more Business Rule files. While this typically is not the preferred approach, it provides the ability to put all formulas in one location, and it is similar to the approach used by some older competitive products. The primary reasons for writing formulas in a Finance Business Rule are the formula requires extensive cross-dimensional dependencies and it is not clear on which Member an equivalent Member Formula should be written, or the formula requires complex sequential logic, variable, or conditional statements that affect multiple dependent calculations.  Another reason for writing formulas in a Finance Business Rule is when the application requires custom algorithms for Currency Translation, Share, or Intercompany Eliminations.

TIP: Due to the sophisticated built-in translation and consolidation algorithms, most applications only require Member Formulas for the Data Unit Calculation Sequence (DUCS) (i.e., Chart Logic). Custom Business Rules for Translation, Share, and Intercompany Eliminations are not typically needed.

NOTE: Due to the way OneStream stores its data, Decimal should always be used instead of Double or Integer when declaring variables that return a number within a Business Rule or Member Formula.

Dim myNumber as Decimal = Api.Data.GetDataCell(“A#Sales – A#CostOfSales”).CellAmount

See Business Rules in Application Tools for more details.

Formula Types

Two types of formulas can be applied to dimensional members or members in a business rule file:

• Dynamic Cell Calculation (Dynamic Calc): An in-memory calculation that runs on demand when a cell containing a dynamic member formula is requested.  A Dynamic Calc formula computes a value for a single cell and runs whenever the cell needs to be displayed without storing the result.

• Stored Calculation: A persisted calculation that runs as part of the Data Unit Calculation Sequence (DUCS). With these formulas you can calculate many cells simultaneously, such as data buffer.

Performance Considerations

Dynamic Cell Calculation (Dynamic Calc): Dynamic Cell Calculations enhance the consolidation process because the amount is calculated when requested for display and is not written to the database. For reporting however, performance may be impacted because data is calculated on demand.  Dynamic calculations are usually used for ratio or percentage calculations.

Stored Calculation: Consolidation performance is directly impacted by the volume and complexity of stored calculations. Carefully consider each stored calculation since one poorly written rule can cause large amounts of data to be written to the cube, negatively impacting consolidation performance. If you use many member formulas or if data volumes are not considered in member formulas, over 100,000 stored numbers may be generated from just 1,000 initially loaded numbers. The quantity of stored numbers is a critical factor to consider to optimize consolidation performance.

Reference and Aggregation Considerations

Dynamic Cell Calculations: Dynamic cell calculations can reference other dynamic cell calculations and stored calculations but should not be used by stored calculations because they do not naturally aggregate parent members. For example, if a parent member in an Account, Flow, or User Defined dimension has a child member calculated by a dynamic calculation formula, the parent excludes the child member from the aggregated amount. Achieve aggregation by writing another dynamic calculation on the parent member.

Stored Calculations: Stored calculations can reference other stored calculations and parent members aggregate naturally.

TIP: You do not need to write a stored calculation to add or subtract individual members.  Instead, create an alternative member hierarchy and use the Aggregation Weight property, set to -1.0 to negate. This aggregated value is dynamic and supports drill-down.

Stored Calculation Evaluation Tools: You can access detailed process logging information. Run Force Consolidate With Logging and click Task Activity to analyze steps in the consolidation process to identify bottlenecks or errors for performance optimizations.  Examples:

• Calculate with Logging

• Translate with Logging

• Consolidate with Logging

Formula Calculation Threshold Monitoring: Calculation time threshold values can be set in the Application Server Configuration File using the NumSecondsBeforeLoggingSlowFormulas setting to log formulas exceeding the specified threshold time.

Formula Execution

This section defines the types of calculations and calculation sequences used during different analytic processing routines.

Cube Processing

Calculation: This executes the standard calculation sequence for a single Data Unit. A Data Unit refers to a group of data cells for a specific Cube, Entity, Parent, Consolidation, Scenario, and Time Member. See Data Units in Workflow for more details on Data Units.  Except for Dynamic Cell Calculations, all Member Formulas are written to execute as part of a Data Unit’s Calculation Sequence.

Translation: This executes a currency translation that occurs when the data for an Entity’s local currency needs to be translated to a foreign currency. The translation step executes after the system has run the Data Unit Calculation Sequence for an Entity’s local currency. After this is completed, the default translation algorithms use Foreign Exchange (FX) rates to generate and store a corresponding translated Data Unit. Finally, the Data Unit Calculation Sequence on the translated Data Unit to produce the final translated amounts are run.

Consolidation: The Analytic Engine provides pre-built financial intelligence through a statutory Consolidation Dimension that defines a sequence of Data Unit calculations and aggregations which include currency translations, Parent-level adjustments, complex ownership computations, and Intercompany Eliminations.  For more details on Consolidation, see Consolidation.

Dynamic Cell Calculation: Dynamic Cell Calculations are a special type of Member Formula for Account, Flow, or User Defined Members. They are used to generate amounts for a Member on the fly (i.e., the results are calculated on-demand and are not stored).  Dynamic Cell Calculations are often used for metric accounts (e.g., ratios involving other accounts) and are appropriate when the result of the Dynamic Calculation is not needed as the source number for another Stored Calculation. The use of Dynamic Cell Calculations can result in improved Consolidation performance because they do not generate stored numbers and are typically only executed when a number needs to be displayed, not during the Consolidation process.

Data Units and Formula Execution

OneStream executes formulas at a specific unit of work call a Data Unit. This section details the order and combination of logical processes that execute for a Data Unit.  See Using Data Units in Workflow.

Guidelines on Formula Passes: There are 16 Formula Passes and one Dynamic Calculation Formula Type available on each Member.  Formulas that do not depend on one another can exist in the same formula pass and will be calculated in parallel using OneStream’s advanced parallel formula processing engine.

As a basic guideline, customers should think about organizing formulas by account/collection type across OneStream’s available formula passes using the following examples.

Formula Pass 1 - 8: Trial Balance

Formula Pass 5 - 7: Translation logic related to Cash Flow

Formula Pass 8 or 9: Balance Account and CTA account

Formula Pass 9 - 16: Non-trial Balance

All formulas in a pass are processed at the same time, so they cannot have dependencies on one another.

Calculation Sequence of a Single Data Unit: The items below detail the specific list of tasks executed for each Data Unit’s calculation process.  As an example, the following steps are executed for a single Data Unit when a user selects Calculate for a single Entity, Scenario, and Time period.

Data Unit Calculation Sequences (DUCS)

1. Clear previously calculated data for the Data Unit.

2. Run the Scenario’s Member Formula, which is typically used for seeding a Scenario’s data from another Scenario or from a prior year.

3. Run reverse translations by calculating Flow Members from other Alternate Currency Input Flow Members. This is part of the built-in ability for an Entity to accept input using multiple currencies.

4. Execute Business Rules (1 and 2). Up to 8 Business Rule files can be attached to each Cube.

5. Run Formula Passes (1 – 4) for the Cube’s Account Dimension Members, then Flow Members, and then User Defined Members. The Formula Pass is specified using each Member’s Formula Type property in the Dimension Library.

   • Account, Flow, UD1, UD2, … UD8 (Member Formula Execution)

6. Execute Business Rules (3 and 4).

7. Run Formula Passes (5 – 8).

   • Account, Flow, UD1, UD2, … UD8 (Member Formula Execution)

8. Execute Business Rules (5 and 6).

9. Run Formula Passes (9 – 12).

   • Account, Flow, UD1, UD2, … UD8 (Member Formula Execution)

10. Execute Business Rules (7 and 8).

11. Run Formula Passes (13 – 16).

    • Account, Flow, UD1, UD2, … UD8 (Member Formula Execution)

Every time a data cell is written to the database, information with the stored cell about how it was stored (e.g., manually entered, calculated, consolidated, etc.) is included.  If a number was calculated and stored as a result of a formula, it will always get cleared regardless of the metadata settings.  The AllowInput property specifies whether a cell can be written to, and therefore if a formula stored a number, there would be information if the cell was calculated.  If AllowInput is set to True, and a new number is typed over the same cell, it is stored as manually entered instead of a calculated cell.

Formula Execution for Statutory Consolidation Sequence

The consolidation process is run for a hierarchy of Entities.  See Consolidation.

Formula Level Controls

In addition to the Cube-level settings described above, VB.NET If statements are often used in a formula to have that formula execute only for certain types of Data Units. The most common usage is to contain checks for Base-Level Entities and local currencies. The following If statement will cause the formula to execute only for Base-Level Entities and the Entity’s default currency. This is often used when the results of the calculation in the Base-Level Entity is intended to be consolidated to Parent-Level Entities.

If ((Not api.Entity.HasChildren()) And (api.Cons.IsLocalCurrencyForEntity())) Then
End If

Writing Formulas

The following section provide information on writing formulas.

Writing Dynamic Cell Calculations

When writing a formula for a Dynamic Calc Account, Flow, or User Defined Member in either a Member Formula or a Business Rule (via FinanceFunctionType.GetDataCell), the goal is to return an amount for a single data cell. In that case, the system knows the full 18 Dimensions of the data cell it needs to display. Therefore, use any of the api methods that refer to a specific Account, Flow, Intercompany, User Defined Dimension, etc.

For example, a user selected a Cube View to view some numbers. The full 18 Dimensions for each cell the Cube View needs to display is determine that it needs to run a custom formula and it initializes the api, so it knows about all 18 Dimensions. The Member Formula then displays an amount on the Cube View.

Dynamic Calc Formula Examples

Return a Constant
The simplest Dynamic Calc formula is to return a constant (i.e., the same number regardless of the intersection).  For example, select an Account (or a Flow or User Defined Member) in the Dimension Library, set the Formula Type property to DynamicCalc, and then enter the following line in the Member’s Formula property for the Default Scenario Type and Default Time Member. After typing the code, press the Compile button on the Formula Editor’s toolbar to make sure the VB.NET syntax is correct, press OK to close the dialogs, and then click Save.

Return 123.4

If a Cube View is used to display the result of the above calculation for the Dynamic Calc account for any numeric intersection (any Entity, Scenario, Time, UD, etc. for View set to YTD), the Cube View will always display 123.4. If the account’s value is displayed for any text intersection (any Entity, Scenario, Time, UD, etc. for View set to Annotation), the Cube View will show an empty cell because the formula returned a numeric value, not a text value. To make the formula work for both numeric and text View Members, use an If statement to check which type of View Member is currently being requested. Then return a text value surrounded by double quotes when the View Member is an annotation type. After saving, run the Cube View using multiple View Members (YTD, Periodic, Annotation, Assumptions, etc.).  The corresponding cell will display either of the two constants specified.

objViewMember As ViewMember = ViewMember.GetItem(api.Pov.View.MemberId)
If objViewMember.IsAnnotationType Then
   Return "My first OneStream Member Formula"
Else
    Return 123.4
End If

Return Types for Dynamic Calc Formulas

As shown in the example above, the return value for a numeric data cell can be a number such as a constant or a decimal variable, and the return type for a text intersection can be a text value such as words within double quotes or a String variable. However, when those types are returned, the underlying engine converts them to a DataCell or a DataCellEx object automatically. Therefore, if a DataCell or DataCellEx object was already contained by calling api.Data.GetDataCell, then it is recommended to return the full object instead of just the number contained within the DataCell object (i.e., which could be accessed using objDataCell.CellAmount). In order to specify status such as whether the cell is NoData, return a DataCell or DataCellEx and use its CellStatus property for those types of settings.

A DataCell object is a wrapper for a DataCellPk object that defines the cell’s 18 Dimensional intersection, a decimal accessed using the CellAmount property to store the number, and a CellStatus containing other information about the cell such as NoData and Invalid Status.

A DataCellEx object is a wrapper for a DataCell object and a text property called DataCellAnnotation which is used for setting a string for an Annotation type View Member. It also contains some additional properties for CurrencyId and AccountTypeId filled in and can be ignored when creating a DataCellEx object in a Dynamic Calc Member Formula.

The following example accomplishes the exact same result as the example above, except this uses DataCell and DataCellEx objects to illustrate what to do if a return value containing cell status is needed.

Dim objViewMember As ViewMember = ViewMember.GetItem(api.Pov.View.MemberId)
If objViewMember.IsAnnotationType Then
   Dim objDataCellEx As DataCellEx = New DataCellEx()
   objDataCellEx.DataCell.CellStatus = New DataCellStatus(True)
   objDataCellEx.DataCellAnnotation = "My first OneStream Member Formula"
   Return objDataCellEx
Else
   Dim objDataCell As DataCell = New DataCell()
   objDataCell.CellStatus = New DataCellStatus(True)
   objDataCell.CellAmount = 123.5
   Return objDataCell
End If

Using Math in Dynamic Calc Formulas

OneStream’s api.Data.GetDataCell function supports a powerful script parser that allows math equations to be written and operate on one or more data cells or constant amounts to calculate the values for a new data cell. For example, if a Dynamic Calc account needs to display Cash plus AcctsRec increased by 10%, this one-line Member Formula can do it.

Return api.Data.GetDataCell("(A#Cash + A#AcctsRec) * 1.10")

Notice the api.Data.GetDataCell function accepts one string Parameter in double quotes which represents a Member Script equation. Each operand of the equation (e.g., A#Cash) takes the unspecified Dimensions using the data cell currently being calculated. Therefore, every operand points to a specific data cell identified by using an 18 Dimension intersection.

If the current data cell being calculated is:

“E#CT:C#USD:S#Actual:#2013M1:V#YTD:A#NewAccount:F#None:O#Top:I#None:U1#None, …”,

then the first operand is:

“E#CT:C#USD:S#Actual:#2013M1:V#YTD:A#Cash:F#None:O#Top:I#None:U1#None, …”

even though only “A#Cash” was specified.

When writing Dynamic Calc formulas, specify any or all the 18 Dimensions if necessary.
(e.g., “A#Cash:U1#AllProducts + A#AcctsRec:U1#None”)

Division in Dynamic Calc Formulas

Using Member Script equations in api.Data.GetDataCell as shown above is powerful for Dynamic Calc formulas, but there are occasions when all the math cannot be performed reliably in one line of script.  For example, use this formula to divide by a data cell when the data cell being used as the denominator is zero or NoData (i.e., a number was never entered). Since dividing by zero results in infinity and is an invalid operation for computers, the formula needs some extra checking. To illustrate additional concepts, here are three different examples of performing division in a Dynamic Calc formula.

This first example uses the division operator (/) to calculate a data cell from one account divided by a data cell from another account. If the denominator (A#AcctsRec) is zero or NoData, it will automatically return a very large number (e.g., 9999999999999999999.0) as the result. This is because dividing by zero in mathematics results in infinity, and the large number to approximate infinity which allows subsequent functions or math operators that refer to the result to continue to be processed is used.

Return api.Data.GetDataCell("A#Cash / A#AcctsRec")

Although an extremely large number is the best mathematical approximation for infinity, it is typically not what administrators want to display in their financial system when source numbers are not available. A Divide function that produces a NoData cell if either the numerator or the denominator is NoData is available.

Return api.Data.GetDataCell("Divide(A#Cash, A#AcctsRec)")

The built-in Divide function is typically used when performing division in Dynamic Calc formulas. However, for completeness and to provide some insight about how to create more complex formulas, the following is an example of how to implement a formula that performs safe division. Notice that the Member Formula is performing division using two DataCell objects to create a resulting DataCell (Return numeratorDataCell / denominatorDataCell). This is a powerful capability that allows any type of math to be performed using any number of DataCell objects.

Dim numeratorDataCell As DataCell = api.Data.GetDataCell("A#Cash")
Dim denominatorDataCell As DataCell = api.Data.GetDataCell("A#AcctsRec")
If ((Not numeratorDataCell Is Nothing) And (Not denominatorDataCell Is Nothing)) Then
   If ((Not numeratorDataCell.CellStatus.IsNoData) And _
        (Not denominatorDataCell.CellStatus.IsNoData) And _
        (denominatorDataCell.CellAmount <> 0.0)) Then
     Return numeratorDataCell / denominatorDataCell
   End If
End If
Return Nothing

TIP: When using VB.NET, use the underscore character at the end of a line in order to continue a statement on the next line.  For example, refer to the underscore after And in the code above. This was done here because the full statement did not fit on one line in this document. However, in the Member Formula editor, the If statement would be kept on one long line.

Days Sales Outstanding

Days Sales Outstanding (DSO) is a common formula that is a required calculation for many applications. Consequently, OneStream has provided a pre-built function to encapsulate the logic required for this function.

Return api.Functions.GetDSODataCell("AcctsRec", "Sales")

The example below demonstrates a possible customized version of the DSO calculation.

Dim numDaysSum as Integer = 0
Dim currTimeId as Integer = api.Pov.Time.MemberPk.MemberId
Dim acctsRec as decimal = api.Data.GetDataCell("A#AcctsRec - A#SaleTax").CellAmount
If (acctsRec > 0.0) Then
    Dim salesSum as Decimal = 0.0
    Dim numPeriodsInYear = api.Time.GetNumPeriodsInYearForSameFrequency(currTimeId)
    For (numPeriodsToSubtract As Integer = 0 To numPeriodsInYear)
        Dim timeId as Integer
        If numPeriodsToSubtract = 0 Then
           timeId = currTimeId
        Else
           timeId = api.Time.AddTimePeriods(-1 * numPeriodsToSubtract, True)
        End If
        Dim timeName As String = api.Time.GetNameFromId(timeId)
        Dim numDaysInTimePeriod As Integer = api.Time.GetNumDaysInTimePeriod(timeId)

        Dim MemberscriptBldr = New MemberscriptBuilder("A#Sales:V#Periodic").SetTime(timeName)
        Dim Memberscript As String = MemberscriptBldr.GetMemberscript()
        Dim salesForTimePeriod as Decimal = api.Data.GetDataCell(Memberscript).CellAmount

        If (salesForTimePeriod + salesSum >= acctsRec) Then
            Dim ratio As Decimal = (acctsRec - salesSum) / salesForTimePeriod
            numDaysSum = numDaysSum + (ratio * numDaysInTimePeriod)
            'We are done
            Exit For
        Else
            numDaysSum = numDaysSum + numDaysInTimePeriod
            salesSum = salesSum + salesForTimePeriod
        End If
    Next
End If
Return api.Data.CreateDataCellObject(numDaysSum, False, False)


Dynamic Simulation of Consolidation: GetEntityAggregationDataCell

Use a function called GetEntityAggregationDataCell for pseudo/approximate consolidation of a data cell with a Cube View when requested for display. The intention is not to produce a value that would tie to a formally consolidated number if custom Business Rules for ownership or translation are in play for such a financial model, but this on-the-fly dynamic value is presented to the user instantly as a convenience, typically during data entry.

This function employs standard currency translation using the Entity in the cell’s POV’s local currency as the source and a parent Entity’s target and standard Percent Consolidation on the Relationship Properties to calculate Share. It does not take intercompany elimination into account unless that value was already consolidated and stored.

api.Functions.GetEntityAggregationDataCell(memberScript as string,

 Optional useStoredAmountsWhereCalcStatusIsOK as Boolean, Optional

 fxRateTypeRevenueExpOverride as String, Optional

fxRuleTypeRevenueExpOverride as FxRuleType, Optional

 fxRateTypeAssetLiabOverride as String, Optional

fxRuleTypeAssetLiabOverride as FxRuleType)

When useStoredAmountsWhereCalcStatusIsOK is set to True (the default setting), the algorithm checks if CalcStatus is OK for the intersection and uses numbers that are already calculated, translated, ownership share calculated, eliminated, consolidated and stored. This setting is also useful when displaying multiple translated currencies for consolidated parent Entities dynamically. If the parent Entity’s Local amount is OK and fully consolidated, the only dynamic calculation would be the last translation step.

The last four optional settings let you specify alternate named FX Rate Types (e.g. “AverageRate”) and FX Rule Types (i.e. FxRuleType.Direct or FxRuleType.Periodic) to perform what-if simulations.

If any of these four are specified, useStoredAmountsWhereCalcStatusIsOK is ignored and is treated as False because consolidated amounts would not have been stored using the alternate FX rates.

Examples when used with a Dynamic Calc member (e.g. UD8):

Return api.Functions.GetEntityAggregationDataCell("A#NetIncome:S#Budget:UD8#None")
Return api.Functions.GetEntityAggregationDataCell("UD8#None", True, “AverageRate”, FxRuleType.Periodic)
Return api.Functions.GetEntityAggregationDataCell("UD8#None", True, “AverageRate”, FxRuleType.Periodic,

	“HistoricalRate”, FxRuleType.Direct)

Example use of GetEntityAggregationDataCell to enter inputs and instantly see aggregated results upon saving a Form:

Create a UD8 Member named EntityAggregation and set its Formula Type to Dynamic Calc. Use this as the UD8 member's Formula:

Return api.Functions.GetEntityAggregationDataCell("UD8#None")

Create a Cube View

Set Cube View POV tab to have Scenario set to Budget or whatever is desired on the Form and UD8 Member of EntityAggregation.

Define rows that display a hierarchy of Entities.

Define columns that display a few key Accounts. Include a base-level Account that supports input for both UD8#EntityAggregation and for input. E.g. A#Sales, A#Sales:UD8#None:Name(“Sales Input”)

Change Cube View settings for General Settings / Common with Can Modify Data and Can Calculate set to True.

Associate this Cube View with a Form Template which is assigned to a Workflow Profile.

The user enters a number on the Form in the Account that accepts input and clicks Save. The user will see the dynamically aggregated Entity results without having to run a Consolidation.

Dynamic Calc Member Formula

This formula returns the name and description of the Entity’s UD1 Default Member. Other UD8 formulas can be created for the Entity’s UD2 Default, etc.  After adding the UD8 Member, the Entity’s Default UD1 Member name can be displayed using XFGetCell or in a Cube View by accessing the cell:  E#MyEntity:V#Annotation:U8#EntityDefaultUD2Name.

This assumes that the UD8 Member with the formula is named EntityDefaultUD2Name. If XFGetCell is being used in Excel, use None or any valid Member for all the other Dimensions.

'Display the Member name of the entity's DefaultUD1 Member using the Annotation View Members.
If api.View.IsAnnotationType(api.Pov.View.MemberId) Then
   Dim text As String = String.Empty
   Dim udId As Integer = api.Entity.GetDefaultUDMemberId(api.Pov.Entity.MemberId, DimType.UD1.Id)
   If udId <> DimConstants.Unknown Then
Dim udMember As Member = api.Members.GetMember(DimType.UD1.Id, udId)
If Not udMember Is Nothing Then
text = udMember.NameAndDescription
End If
    End If
    Return text
End If
'If this is a numeric View Member (e.g., Periodic, YTD), display the number from the U8#None Member.
Return api.Data.GetDataCell("U8#None")

Annotations on Dynamic Calc Members

To support the ability to calculate text or pull it from an external system to display in a Cube View, DynamicCalc or DynamicCalcTextInput formulas can be used.  If the user wants the formula to calculate the annotations, use a DynamicCalc formula to display text such as Pass and Fail.

The DynamicCalcTextInput Formula Type works the same as a DynamicCalc formula, but it allows users to input annotations on Cube View cells without having to use the Data Attachment Dialog.  When this formula is used, the user can make annotations on Dynamic Calc Members following the same method as a non-calculated Member.

Writing Stored Calculations

When writing a Member Formula or a Business Rule for a Stored Calculation, the new calculated numbers are being determined to store for that Cube, Entity, Parent, Cons, Scenario, and Time combination (i.e., a Data Unit).

Return is never seen in a Member Formula for Formula Pass.  Instead of being returned, many numbers are being calculated and stored.   When running a Calculation, Translation, or Consolidation, the Member Formula calls for an entire Data Unit. It does not tell with which Account, Flow, or User Defined the numbers are being saved, this is the responsibility of the user.  Initially, this may be confusing because Member Formulas are often written in an account’s Formula property, and administrators believe it will only allow that specific Member Formula to write to that specific account. However, putting a Member Formula in an account’s Formula property is only for organizational purposes. When it calls that formula, it is currently calculating a Data Unit and it will initialize the api with only the Data Unit Dimensions.

Basic Stored Formula Examples

The formula examples in this section demonstrate how to calculate basic stored values driven by formulas consisting of OneStream Member Script expressions.

Copy Data from another Account

The following formula would be implemented as a Member Formula on the Sales1 account. It is executed as part of the DUCS during the Formula Pass that was specified in the account’s Formula Type setting.

api.Data.Calculate("A#Sales1 = A#Sales2”)

Stored Formula passes use Data Buffer math, not the Data Cell math that occurs for the single cell Dynamic Calc formulas.  Stored Formulas are multi-Dimensional. For example, the formula is executed for an entire Data Unit (e.g., Location1 Entity, USD Consolidation Member, Actual Scenario, January 2013 time period). That Data Unit is a portion of a Cube where the UD1 Dimension could contain 1,000 products to keep track of sales by product. Therefore, the data for the Sales2 account could contain a separate number for every Product (i.e., UD1), or if the Location1 Entity only sells some of the products, there might be 200 numbers for Sales2 and the other 800 products for Sales2 are NoData. That set of 200 numbers is called a Data Buffer. Data Buffers can get much larger and more complicated when multiple Dimensions are used for detailed analyses. However, since the same concepts still apply, it is easier to think about a smaller set of Dimensions as in this example.

The formula “A#Sales1 = A#Sales2” is equivalent to saying, “Take the 200 numbers stored in the Sales2 Data Buffer and copy them to a new Data Buffer, but change the account to Sales1, and then store the new Sales1 Data Buffer in the database.” That one-line formula calculated and stored an additional 200 numbers that did not exist before the formula was executed.

The formula below reads the Data Buffer for the Sales2 account (200 numbers) and then adds 50.0 to each of those 200 numbers to create a new Data Buffer that also contains 200 numbers. The account for each of the 200 numbers in the new Data Buffer is changed to Sales1 and it is then stored in the database.

api.Data.Calculate("A#Sales1 = A#Sales2 + 50.0”)

The newly modified formula below uses three accounts. That formula reads the Data Buffer for the Sales2 account (200 numbers) and then reads the Data Buffer for the Sales3 account. For example, the Sales3 account contains 100 numbers broken out by product in UD1, and 25 of those 100 numbers use the same UD1 Members as some of the numbers from Sales2. The other 75 Sales3 numbers are for other products not used by the Sales2 account. OneStream automatically combines the numbers from Sales2 and Sales3 and adds the Sales2 and Sales3 numbers that share a common intersection and also adds the additional non-common intersections. The result is a new Data Buffer containing 275 numbers stored in the database for the Sales1 account.

api.Data.Calculate("A#Sales1 = A#Sales2 + A#Sales3”)

Copy Data from Another Scenario

The following formula would be implemented as a Member Formula on the Forecast Scenario. It copies all the data from the Actual Scenario and stores the results in the Forecast Scenario. The If statement in this example causes the data to be copied only for Base-Level Entities and each Entity’s local currency. This is because the example application wants the numbers for Parent Entities and foreign currencies to be determined using OneStream’s Consolidation and Translation algorithms, not by copying directly from another Scenario. Limit the formula to only copy data for certain Dimension Members by adding specific Members in the formula’s Member Script. For example, if the Forecast Scenario needs to copy only the Import Members, add O#Import to both sides of the equation.  If the Forecast Scenario needs to start with the sum of the Actual Scenario’s Import plus Forms plus AdjInput data and copy that into the Forecast Scenario’s O#Import Member, then use “S#Forecast:O#Import = S#Actual:O#Top”. When writing Stored Formulas, any Data Unit Dimension not explicitly specified uses the Dimension Member for the Data Unit currently being calculated. For any Account, Flow, Origin, IC, or User Defined Dimensions not explicitly specified, OneStream will use #All which is the syntax that represents all existing data for that Dimension.

If ((Not api.Entity.HasChildren()) And (api.Cons.IsLocalCurrencyForEntity()))
Then
    api.Data.Calculate("S#Forecast = S#Actual")
End If

To copy data from another Cube or Scenario that uses different Dimensionality, an example of the Scenario formula would be as follows:

'Convert dimensionality
Dim destinationInfo As ExpressionDestinationInfo = api.Data.GetExpressionDestinationInfo("")
Dim sourceDataBuffer As DataBuffer = api.Data.GetDataBuffer(DataApiScriptMethodType.Calculate,
"Cb#AnotherCube:S#AnotherScenario",destinationInfo)
Dim convertedDataBuffer As DataBuffer = api.Data.ConvertDataBufferExtendedMembers("AnotherCube",
"AnotherScenario", sourceDataBuffer)
api.Data.SetDataBuffer(convertedDataBuffer, destinationInfo)

To drill down on this formula, use the following example in the Scenario’s Formula for Calculation Drill Down setting:

If api.Pov.Cube.Name.XFEqualsIgnoreCase("TheDestCube") Then
    Dim result As New DrillDownFormulaResult()
    result.Explanation = "Pseudo-formula: Cb#TheDestCube:S#TheDestScenario=Cb#AnotherCube:S#AnotherScenario”
    result.SourceDataCells.Add("Cb#AnotherCube:S#AnotherScenario")
    Return result
End If
Return Nothing

Out-Of-Balance

The following formula would be implemented as a Member Formula on the Balance account. It stores the difference of two other accounts.

If ((Not api.Entity.HasChildren()) And (api.Cons.IsLocalCurrencyForEntity())) Then
    api.Data.Calculate("A#Balance = A#2899 - A#5999")
End If

CTA Account Formula Examples

This is essentially the same formula as Out-Of-Balance, but only runs on translated Data Units.

If ((Not api.Entity.HasChildren()) And (api.Cons.IsForeignCurrencyForEntity())) Then
    api.Data.Calculate("A#CTA = A#2899 - A#5999")
End if

Reading a Specific Data Cell in a Stored Formula

Stored Formulas are executed for an entire Data Unit, so unlike Dynamic Calc formulas, there is no context about a specific View, Account, Flow, Origin, IC, or User Defined Member within the Data Unit. Therefore, to read the value for a Data Cell using api.Data.GetDataCell, a Member needs to be explicitly specified for all non-Data Unit Dimensions.  This is different than Dynamic Calc Member Formulas where the default setting for every Dimension Member comes from the Data Cell currently being displayed.

Therefore, the following is incorrect when trying to read a specific Data Cell inside a Stored Formula:

Dim objDataCell As DataCell = api.Data.GetDataCell("A#Cash")

Instead, all non-Data Unit Dimensions need to be specified. If one or more of those Dimensions needs to be based on the other data stored in the Data Unit, then use Eval (for details on Eval see Advanced Stored Formulas using Eval below). Otherwise, the formula will look like this:

Dim objDataCell As DataCell = api.Data.GetDataCell("V#YTD:A#Cash:F#None:O#Import:I#None
    :U1#None:U2#None:U3#None:U4#None:U5#None:U6#None:U7#None:U8#None")

The syntax above is accurate but creating that long string for many Dimensions is tedious and error prone especially when using functions to determine what the Member names should be, and then concatenating multiple strings. Instead it is recommended to use the MemberscriptBuilder class when creating Member Scripts.

Dim MemberscriptBldr = New MemberscriptBuilder("V#YTD:A#Cash")
MemberscriptBldr.SetFlow("None").SetOrigin("Import").SetIC("None").SetAllUDsToNone()
Dim Memberscript As String = MemberscriptBldr.GetMemberscript()
Dim objDataCell As DataCell = api.Data.GetDataCell(Memberscript)

Advanced Stored Formulas using Eval

As described in the examples above, OneStream’s Data Buffer math is extremely powerful and can process hundreds or thousands of numbers with just one simple equation. Without Data Buffer math or an equivalent scripting capability, a large multi-Dimensional financial application would not be feasible because every intersection would need to be considered separately.  There is a consequence when processing data using Data Buffers instead of individual Data Cells.  Additional capabilities are needed when wanting to perform math differently based on the individual data cell amounts.

Fortunately, OneStream accommodates that pattern using Eval. When implementing api.Data.Calculate functions, Eval has an advanced capability that provides the ability to get at the individual Data Cells in any Data Unit created while processing an api.Data.Calculate script. It even allows Eval() to be wrapped around a subset of the formula’s math in order to evaluate the Data Buffer that was just created by running that math.

As an example for Eval, start with this formula:

api.Data.Calculate("A#Sales1 = A#Sales2”)

The Sales2 numbers need to be copied to Sales1 for “green” Products. In this fictitious example, there is a special tax situation for green products and the sales numbers for those products need to be isolated into the special Sales1 account.  The application uses the UD1 Member’s Text1 property to keep track of which products are green.

The first thought might be to do something like the following (incorrect):

Dim ud1Id As Integer = api.Pov.UD1.MemberId
Dim text1 As String = api.UD1.Text(ud1Id, 1)
If (text1.Equals("green", StringComparison.InvariantCultureIgnoreCase)) Then
    api.Data.Calculate("A#Sales1 = A#Sales2")
End If

However, this would not work because Stored Formulas are executed for an entire Data Unit. A Data Unit represents all data for a Cube, Scenario, Entity, Parent, Cons, and Time Member. Since there is no single product (i.e., UD1 Member) for the Data Unit currently being calculated, the first line above does not make sense.  A Data Unit cannot be asked what the UD1 MemberId is because a Data Unit has data for multiple UD1 Members (200 different products in the Sales2 example).

The solution is using Eval to evaluate the individual Data Cells in a Data Buffer. Put the Eval keyword around any portion of the api.Data.Calculate function including math statements. After OneStream reads or calculates the DataBuffer defined within the Eval statement, it executes the Eval function to give the opportunity to filter the list of Data Cells in the Data Buffer, or to completely change the list of Data Cells in the Data Buffer. After the Eval function is completed, OneStream uses the modified Data Buffer to perform the remaining part of the api.Data.Calculate function.

The example formula needs to be modified by adding the Eval keyword around the A#Sales2 Data Buffer, a helper function, typically the name OnEvalDataBuffer, needs to be implemented allowing an inspection, filter, and/or change to the Data Cells in the Data Buffer. The helper function Loops over each of the Sales2 Data Cells (200 in this example). If the Data Cell’s UD1 Text1 setting says green, add that Data Cell to a new list of result cells. Otherwise, ignore the Data Cell causing it to be skipped. The result is a new modified Data Buffer containing only the Data Cells for green products (i.e., fewer than 200 Data Cells).

api.Data.Calculate("A#Sales1 = Eval(A#Sales2)", AddressOf OnEvalDataBuffer)

Private Sub OnEvalDataBuffer(ByVal api As FinanceRulesApi, ByVal evalName As String, _ByVal eventArgs As EvalDataBufferEventArgs)
    'Filter to list of Sales2 source numbers to only include numbers
    'for "green" Products using each dataCell's UD1 Text1 setting.
    'The final list of resultCells is what will be assigned to Sales1 by api.Data.Calculate.
    Dim resultCells As New Dictionary(Of DataBufferCellPk, DataBufferCell)
    For Each sourceCell As DataBufferCell In     eventArgs.DataBuffer1.DataBufferCells.Values
        If (Not sourceCell.CellStatus.IsNoData) Then
            Dim ud1Id As Integer = sourceCell.DataBufferCellPk.UD1Id
            Dim text1 As String = api.UD1.Text(ud1Id, 1)
            If (text1.Equals("green", StringComparison.InvariantCultureIgnoreCase)) Then
            'Add this dataCell to the new list.
            resultCells(sourceCell.DataBufferCellPk) = sourceCell
            End If
        End If
    Next
    'Assign the new list of DataCells to the result.
    eventArgs.DataBufferResult.DataBufferCells = resultCells
End Sub


NOTE: If using Eval for NoData and ZeroCells, refer to the Remove Functions in Formulas section for alternative performance enhancing solutions.

Advanced Stored Formulas using GetDataBuffer and SetDataBuffer

Most of the advanced stored formulas that need to process multiple Data Cells should use Eval. Eval allows the user to get at the individual Data Cells in any Data Unit while processing the Member Script in an api.Data.Calculate function. However, in some rare occasions, an appropriate Member Script may not be defined for the api.Data.Calculate function because multiple Data Cells that seem completely unrelated to each other are being processed and none of the Dimension Members are constant.

For those rare situations, use the GetDataBuffer and SetDataBuffer functions directly. GetDataBuffer and SetDataBuffer are more fundamental then Eval. They are part of the internal implementation of the Eval functionality. They allow the user to read some numbers using a Member Script, process or modify each cell in the result, and then save the changes.

In the following example, the UD2 and UD3 Dimensions are being used to analyze data based on each UD1 Member’s default settings for UD2 and UD3. All data is initially loaded to the U2#Input:U3#Input Members, but that loaded data needs to be copied to the U2#DefaultUD1:U3#DefaultUD1 Members. GetDataBuffer needs to be used in order to read the loaded data because the destination UD2 and UD3 Members can be different for every Data Cell based on its UD1 Member’s settings.  Loop over each Data Cell and use the UD1 Member to get its default UD2 and default UD3 settings. Then, change the UD2 and UD3 Member IDs for the Data Cell in the Data Buffer. Finally, after Looping, call SetDataBuffer to save the new numbers.

When using api.Data.Calculate functions with or without Eval, it is important to know to which Member a formula is being attached.  For example, if the formula starts with api.Data.Calculate(“A#Sales1 = …”), put the formula in the Sales1 account Member’s Formula setting. However, the formula in this example is not writing to a specific Member. Every Data Cell being saved is possibly written to a different UD2 and UD3 Member.

Technically speaking, the formula can be put in any Member’s Formula property even a seemingly unrelated Member.  If the Formula Pass is set correctly, the formula executes before any other dependent formulas. Assigning stored formulas to Members is for organizational purposes only. The Member does not restrict what the formula can do.  However, if a formula is attached to an unrelated Member, it will make the application difficult to maintain and understand. Therefore, decide to attach a formula like this to the Scenario’s Member which means this formula needs to be processed before most other formula passes.  If there are numerous Scenarios, this formula should be put in a Business Rule file, and the Business Rule file should be added to the Cube(s).  This can be done under
Application Tab|Cube|Cubes.
See the completed formula using GetDataBuffer and SetDataBuffer below:

'Copy all "U2#Input:U3#Input" numbers for this dataUnit to the corresponding UD1 default Members for UD2 and UD3.
Dim destinationInfo As ExpressionDestinationInfo = api.Data.GetExpressionDestinationInfo("")
Dim sourceDataBuffer As DataBuffer = api.Data.GetDataBuffer(DataApiScriptMethodType.Calculate, _"U2#Input:U3#Input", destinationInfo)
If Not sourceDataBuffer Is Nothing Then
    Dim resultDataBuffer As DataBuffer = New DataBuffer()
    For Each cell As DataBufferCell In sourceDataBuffer.DataBufferCells.Values
        If (Not cell.CellStatus.IsNoData) Then
            Dim ud1Id As Integer = cell.DataBufferCellPk.UD1Id
            cell.DataBufferCellPk.UD2Id = api.UD1.GetDefaultUDMemberId(ud1Id, DimType.UD2.Id)
            cell.DataBufferCellPk.UD3Id = api.UD1.GetDefaultUDMemberId(ud1Id, DimType.UD3.Id)
            resultDataBuffer.SetCell(api.DbConnApp.SI, cell)
        End If
    Next
    api.Data.SetDataBuffer(resultDataBuffer, destinationInfo)
End If

Comparing Two DataBuffers Using Eval2

Eval2 is the same as Eval except two Members Scripts are specified to define two DataBuffers.  When finished, the OnEvalDataBuffer function can compare all the numbers in the two DataBuffers.  The example provided evaluates two separate Flow Members to see if they contain the same value.

'Use Eval2 to compare the numbers in 2 DataBuffers and store a value in F#USDOverride_Check for each pair of numbers that don't match.
If ((api.Cons.IsLocalCurrencyForEntity()) And (Not api.Entity.HasChildren())) Then
    api.Data.Calculate("V#YTD:F#USDOverride_Check:O#Forms = Eval2(V#YTD:F#Local_Change_Validation:O#Top,V#YTD:F#USDOverride_Change_Validation:O#Top)", AddressOf OnEvalDataBuffer)
End If

Private Sub OnEvalDataBuffer(ByVal api As FinanceRulesApi, ByVal evalName As String, ByVal eventArgs As EvalDataBufferEventArgs)

'This function compares the numbers in 2 DataBuffers and returns a new DataBuffer that has a value for each pair of numbers that don't match.
    eventArgs.DataBufferResult.DataBufferCells.Clear()
        If Not eventArgs.DataBuffer1 Is Nothing And Not eventArgs.DataBuffer2
        Is Nothing Then
'For each cell in DataBuffer1, try to find a number for the same intersection in DataBuffer2.
 For Each cell1 As DataBufferCell In eventArgs.DataBuffer1.DataBufferCells.Values
            If (Not cell1.CellStatus.IsNoData) Then
            Dim cell2 As DataBufferCell = eventArgs.DataBuffer2.GetCell(api.SI,cell1.DataBufferCellPk)
            If Not cell2 Is Nothing Then
                If (cell1.CellAmount <> cell2.CellAmount) Then
                ‘Since the numbers don't match, add a cell to the result DataBuffer.
                 Dim resultCell As New DataBufferCell(cell1)
                resultCell.CellAmount = 1.0
                eventArgs.DataBufferResult.SetCell(api.SI, resultCell, False)
                End If
            Else
            'A number exists in the 1st DataBuffer, but it doesn't exist in the 2ndvDataBuffer.
            'Therefore, add a cell to the result DataBuffer.
                Dim resultCell As New DataBufferCell(cell1)
                resultCell.CellAmount = 1.0
                eventArgs.DataBufferResult.SetCell(api.SI, resultCell, False)
            End If
        End If
Next
'Now, for each cell in DataBuffer2, try to find a number for the same intersection in DataBuffer1 (the opposite of the loop above).
'Create a cell in the result DataBuffer for each DataBuffer2 cell that doesn't exist in DataBuffer1.
For Each cell2 As DataBufferCell In eventArgs.DataBuffer2.DataBufferCells.Values
        If (Not cell2.CellStatus.IsNoData) Then
            Dim cell1 As DataBufferCell = eventArgs.DataBuffer1.GetCell(api.SI,cell2.DataBufferCellPk)
                If cell1 is Nothing Then
                'A number exists in the 2nd DataBuffer, but it doesn't exist in the 1st DataBuffer.
                'Therefore, add a cell to the result DataBuffer.
                    Dim resultCell As New DataBufferCell(cell2)
                    resultCell.CellAmount = 1.0
                    eventArgs.DataBufferResult.SetCell(api.SI, resultCell, False)
                End If
            End If
        Next
    End If
End Sub

Referencing a Business Rule from a Member Formula or Business Rule

Finance Business Rules from Member Formulas or other Business Rules can be called. This is helpful when the same code must be copied to multiple Member Formulas and instead of using the same complicated code, a Public Function with two lines of code written in a Business Rule can be called.

First, create a new Finance Business Rule (in this example, a Finance Business Rule called SharedFinanceFunctions was created) and then set the Contains Global Functions for Formulas property to True. If the Business Rule is only being used to hold Shared Functions, delete most of the content in the Main function.  However, a Main function is still needed even if it is empty.

Next, create a Public Function or Sub in the Business Rule.  See below for an example.  If any edits to the Business Rule impact Calculation Status, assign the Shared Business Rule to the Cube under
Application Tab|Cube|Cubes.  This is recommended.

Use the Business Rule in a Member Formula by creating an instance of the Business Rule and assigning it to a variable.  Then, any of the Business Rule’s Public Functions or Sub can be called.

Sample Member Formula Code:

Dim sharedFinanceBR As New OneStream.BusinessRule.Finance.SharedFinanceFunctions.MainClass
Dim myResult As String = sharedFinanceBR.Test(si, api, args)

Sample Business Rule:

Imports SystemImports System.Data
Imports System.Data.Common
Imports System.IO
Imports System.Collections.Generic
Imports System.Globalization
Imports System.Linq
Imports Microsoft.VisualBasic
Imports System.Windows.Forms
Imports OneStream.Shared.Common
Imports OneStream.Shared.Wcf
Imports OneStream.Shared.Engine
Imports OneStream.Shared.Database
Imports OneStream.Stage.Engine
Imports OneStream.Stage.Database
Imports OneStream.Finance.Engine
Imports OneStream.Finance.Database

Namespace OneStream.BusinessRule.Finance.SharedFinanceFunctions
    Public Class MainClass

    Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As
        FinanceRulesApi, ByVal args As FinanceRulesArgs) As Object
            Try
                Return Nothing
            Catch ex As Exception
                Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
            End Try
        End Function

        Public Function Test(ByVal si As SessionInfo, ByVal api As FinanceRulesApi, ByVal args As FinanceRulesArgs) As String
            Try
                Return "This is the result of my Test function!"
            Catch ex As Exception
                Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
            End Try
        End Function
    End Class
End Namespace


Conditionally Apply Formulas to Entities and Consolidation Members

Conditionally apply formulas to run only when needed.  For example, calculate headcount only at Base Entities and Local currency and the consolidation engine will do the rest.

If (api.cons.IsLocalCurrencyForEntity And (Not api.entity.HasChildren)) Then
    api.data.calculate("A#10999=A#25999-A#25986")
End If

Focus Consolidation to Calculate Only When Needed

There are up to seven calculation operations per Entity in the Consolidation process.  Add Conditional Statements to formulas to limit which Consolidation calculation processes will run for a particular formula.

Base Entities Only

If Not api.entity.HasChildren Then

Local Currency Only

If Api.Cons.IsLocalCurrencyforEntity Then

Translated Currency Only

If api.Cons.IsForeignCurrencyForEntity Then

Parent-Child Relationships
If api.Cons.IsForeignCurrencyForEntity Then returns True if the current calculated Consolidation Member also depends on the Parent Entity (i.e. OwnerPreAdj, Share, Elimination, OwnerPostAdj, Top).  If there are two different Parent Entities for the same Entity, then there are two different sets of numbers stored for those Consolidation Members.

At Specific Level of Consolidation

If (Not api.Entity.HasChildren()) And (api.Pov.Cons.Name.XFEqualsIgnoreCase("Elimination")) Then would run if the Entity is a parent and also if the member of the Consolidation dimension being processed in the Data Unit is Elimination. Note that this is the preferred function to use rather than the formerly supported api.Pov.Cons.ScriptName.

Formulas for Calculation Drill Down

To drill down on calculated Members, a formula must be entered in the Formula for Calculation Drill Down property.  This allows drilling to occur on calculated Account, Flow, User Defined or Scenario Members.

Drill down can occur on data cells copied from one Scenario to another via formula or Data Management Sequence.  Before displaying the drill results, every cell’s Formula for Calculation DrillDown Scenario Property is executed.  The result determines whether the Scenario Member will appear as drillable or not.  Therefore, use If Statements in the formula to narrow in on the cell’s Storage Type and/or the POV Members associated with the data copy, so cells do not appear drillable when they are not.   The example below copies data from the Actual Scenario Type to Budget:

Dim result As New DrillDownFormulaResult()
If args.DrillDownArgs.RequestedDataCell.CellStatus.StorageType = DataCellStorageType.Calculation Then
    ‘Use this to drill down to data that was copied using a Scenario Formula.
    result.Explanation = “Formula Definition: Actual = Budget”
    result.SourceDataCells.Add(“Cb#Houston:E#Houston:S#Actual”)
Else If args.DrillDownArgs.RequestedDataCell.CellStatus.StorageType = DataCellStorageType.Input Then
    ‘Use this to drill down to data that was copied using Data Management.
    'result.Explanation = “Data Management Defintion: Actual = Budget”
    ‘result.SourceDataCells.Add(“Cb#Houston:E#Houston:S#Actual”)
End If
Return Result

Global Entity for Driver Storage

A Global Entity can be created to store information that is unrelated to the company’s data such as switches, drivers, or values. To do this within the application, create the Entity and set the Is Consolidated property to False.  The Consolidation process will then skip this Entity allowing companies to use this for grouping purposes only.

Avoiding Data Explosion

In some cases, many data intersections unintentionally explode in the Cube with unintended values. This can happen with multi-dimensional data structures.

For example, an application has one Entity, four Accounts, 100 Products (UD1) and 100 Customers (UD2).  The user has entered three numbers in the system.

(A#Sales:U1#Prod1:U2#Cust1=22.0,   A#Sales:U1#Prod5:U2#Cust1=33.0, A#Sales:U1#Prod7:U2#Cust100=55.0).

The following cases explain what happens when writing the following Formulas.

Case 1: No Explosion

Use the following statement to set the value of a data intersection equal to another or a constant value.

api.Data.Calculate(“A#Cash1 = A#RestrictedCash”)

Cash1 Account will equal what was in the Restricted Cash Account.  The only UD1 and UD2 Members populated would be None Members because it is not typical to delineate Cash by Product, or Customer.

Case 2: No Explosion

api.Data.Calculate(“A#Profit:U2#Cust1 = A#Sales * 1.05”)

Two of the three numbers are multiplied by 1.05 and copied from the Sales Account to the Profit Account which are only the source Sales numbers for Customer 1.

Case 3: Some Explosion

api.Data.Calculate(“A#Profit = A#Sales:U2#Cust1”)

The user specified a Customer for source data but did not specify which customer to use when writing to the destination. This means answers are written to every base-level member of the Customer dimension, resulting in some data explosion. The Profit account has a number for every Customer (UD2) using the same Product (UD1) member as the source numbers. Profit account will have 300 numbers, but because there were three different source products, there will be some data explosion.

Not specifying a Member for a Dimension is the same as specifying all for a Member.  If All is specified on the left only, data explosion occurs. Some level of data explosion occurs if:

• The right side of an equation identifies a specific member or amount.

• The left side of an equation specifies All for one or more dimensions.

Case 4: Large Scale Explosion When Setting to a Constant

api.Data.Calculate(“A#Profit = 2.0”)

Profit will have 1000 numbers stored that are all Products by all Customers, causing large scale explosion.  However, this example is overly simple. If all Dimensions are used, trillions of numbers may be stored. A constant is the same as not specifying All for every Dimension on the right side of the equation.

Writing Formulas to Avoid Data Explosion

If a member is specified for a dimension on the right side of the equation, explicitly specify a value for that Dimension on the left side.

The examples below are the same as Cases 3 and 4 from above, but this time the formulas are written to avoid data explosion.

Case 3: Specify a target on the left side of the equation

api.Data.Calculate(“A#Profit = A#Sales:U2#Cust1”) would be better written as api.Data.Calculate(“A#Profit:U2#Cust1 = A#Sales:U2#Cust1” ) if that is what is intended. If the user intended on copying Cust1’s Sales figures to every Customer intersection under the Profit Account, the formula would need to be written as follows:

api.Data.Calculate(“A#Profit:U2#All = A#Sales:U2#Cust1”

Case 4:

api.Data.Calculate(“A#Profit = 2.0”) will fail since the constant of 2.0 implies All Members from each Dimension.  In order for this Formula to execute, it needs to be api.Data.Calculate(“A#Profit:F#All:O#All:I#All:U1#All:U2#All:U3#All:U4#All:U5#All:U6#All:U7#All:U8#
All = 2.0”), although the user may choose to do otherwise.

Avoiding Data Explosion in Stored Formulas

When writing stored calculations, the Member Script equations in api.Data.Calculate end up reading or calculating one or more Data Buffers for the purpose of saving a resulting Data Buffer. As described earlier, thousands of Data Cells could be processed using a seemingly simple one-line formula.

Data Explosion can occur when a formula is inadvertently written to read or calculate a Data Buffer and then copy all  Data Cells in that Data Buffer multiple times to every base-level Member of a Dimension using the resulting Data Buffer (often causing hundreds of thousands of new numbers to be saved). We only apply calculation to intersections where data exists. Fortunately, OneStream protects the user from writing formulas that could result in data explosion, but the concepts are important to understand because it is possible to circumvent those protections.

Consider the formula from an earlier example:

api.Data.Calculate("A#Sales1 = A#Sales2 + A#Sales3”)

Now, the formula is changed, so it only copies the sales data for specific customers with UD2 being the Customer Dimension.

api.Data.Calculate("A#Sales1:U2#None = A#Sales2:U2#CustomerX + A#Sales3:U2#CustomerY”)

The above formula will not result in data explosion because there is the same level of detail (i.e., the same Dimensions) specified in the destination as in every source operand. The example now reads the Sales2 data for CustomerX, adds it to the Sales3 data for CustomerY, and saves the results in the Sales1 account and the UD2 None Member.

The following formula is written to cause Data Explosion:

api.Data.Calculate("A#Sales1 = A#Sales2:U2#CustomerX + A#Sales3:U2#CustomerY”)

The UD2 Dimension is specified for the source operands which is the right-hand side of the equals sign, but UD2 is not specified for the destination which is the left-hand side of the equals sign.

When processing this formula, OneStream will read the two Data Buffers and add them together correctly as before. However, it then needs to assign the combined Data Buffer to the Sales1 Account. However, the system cannot use U2#CustomerX or U2#CustomerY because Data Cells were created by adding those together and it cannot arbitrarily choose one over the other. The system could also have defaulted to use the U2#None Member, but history suggests that this type of rule is more often written in error, and the customer did not intend the results to be stored in the U2#None Member. From a maintenance perspective, OneStream feels that it is better to explicitly specify U2#None if that is the intended destination Member.

If something like this were to happen, OneStream will provide an error message notifying the user that data explosion will occur when trying to execute the above formula. Otherwise, the formula will copy the source Data Buffer to every base-level UD2 Member because #All is the default setting for each unspecified Member.

To circumvent the error message and force data explosion (please do not do this), explicitly specify U2#All in the destination as shown below. This should be avoided and #All should never be used in Member Scripts for stored formulas. However, the capability is provided for extremely rare circumstances where that functionality was relied upon using an older product. In this case, the consultant carefully analyzed the quantity of data and metadata settings to ensure the data explosion resulted in a manageable number of Data Cells.

CAUTION: This causes Data Explosion! Do not ever use #All explicitly in stored Member Formulas.

api.Data.Calculate("A#Sales1:U2#All = A#Sales2:U2#CustomerX + A#Sales3:U2#CustomerY”)

Key Functions

The list below contains the most commonly used functions; however, this is not the complete list of all available functions.  See the API Overview Guide.

Account

Consolidation

Data

Entity

Flow

FX

Journals

Member

Scenario

Status

Time

Functions

Examples of Key Functions in Use

Calculate Data

The most common function used is api.data.calculate, which sets the value of one or more values (left side of Formula) equal to another (right side). A final argument (optional) can be added as True or False as to whether to use a data cell Storage Type of Durable. Durable data will not be cleared automatically when a Data Unit is re-calculated. It can only be cleared by calling api.Data.ClearCalculatedData with the clearDurableCalculatedData boolean property set to True.

api.Data.Calculate(formula, isDurableCalculatedData)

For example, the following Stat Account is used to calculate Total Cost of Sales for three months and is not set to be a Durable storage method (optional argument):

api.data.calculate("A#TOT_COS_LAST3:V#YTD = A#TOT_COS:V#Periodic + A#TOT_COS:T#POVPrior1:V#Periodic +
	A#TOT_COS:
	T#POVPrior2:V#Periodic", False)

An alternative to this overloaded function is to provide Member Filters (all optional) that can be used to filter the results before saving them to the target to affect fewer intersections, such as only to be applied to certain Flow members:

api.Data.Calculate(formula, accountFilter, flowFilter, originFilter, icFilter, ud1Filter, ud2Filter,
	ud3Filter, ud4Filter,
	ud5Filter, ud6Filter, ud7Filter, ud8Filter, onEvalDataBuffer, userState, isDurableCalculatedData)

Another alternative allows the use of arguments to be applied:

api.Data.Calculate(Formula, onBeforeSetDataBuffer, userState, arg0, arg1, arg2, arg3, arg4, arg5, arg6,
	arg7)

Clear Calculated Data

Clearing calculated data is performed when calculated Members need to be reset to NoData. This will result in the Data Units requiring a calculation. Note that the final argument must be true to clear any data with a Storage Type of Durable. See Calculate Data for how to set a calculation to store data as Durable.

api.Data.ClearCalculatedData(dataBufferScript, clearCalculateData, clearTranslationData,
	clearConsolidationData,
	clearDurableCalculatedData)

api.Data.ClearCalculatedData("A#[cash deposits]:ud1#Production", true, true, true, false)

DataBuffer

The DataBuffer log helps debugging and troubleshooting. It allows datastring results to be written to any target and multiple string results can be merged. The output is formatted as Tab delimited for copy/paste to Excel. Results include the DataBuffer formula, the size and number of records and displays the XFCommon member PK. It also contains a default record limit to guard against log explosion.

Examples of DataBuffer outputs:

• Error Log

• Send to SQL

• Send to a File

• Email

• FTP

When setting a value equal to another value, the item on the left side of the expression is the value being set, and the item on the right side is the value being queried or calculated to set the left side. Example: F#BeginBalance = F#EndingBalance.T#POVPrior1 would set the beginning balance in the Flow Dimension to the prior period’s ending balance. In a Business Rule, the DestinationInfo is the left side of the equation while a GetDataBuffer is the right side of the equation.

Dim destinationInfo As ExpressionDestinationInfo = api.Data.GetExpressionDestinationInfo
	("A#EBITDA:UD1#Tires")
Dim sales As DataBuffer = api.Data.GetDataBuffer("A#Sales:UD1#Tires", destinationInfo)
Dim operatingExpenses As DataBuffer = api.Data.GetDataBuffer("A#OperatingExpenses:UD1#Tires",
	destinationInfo)
Dim ebitda As DataBuffer = (sales – operatingExpenses)
api.Data.SetDataBuffer(ebitda, destinationInfo)

This translates to the following equation:

A#EBITDA:UD1#Tires=A#Sales:UD1#Tires - A#OperatingExpenses:UD1#Tires

GetDataBufferUsingFormula

Use an entire math expression to calculate a final data buffer.  Api.Data.GetDataBufferUsingFormula can perform the same data buffer math as api.Data.Calculate, but the result is assigned to a variable where api.Data.Calculate saves the calculated data.

Example

Dim myDataBuffer As DataBuffer = api.Data.GetDataBufferUsingFormula (“A#Sales-A#Costs”)

Loop over the contents of myDataBuffer to conditionally change each data cell.

Formula Variables

There is additional capability to using Formula Variables to achieve the same level of flexibility and integration as using Evals.  After creating a data buffer variable, name it as a Formula Variable and reference it inside api.Data.Calculate or other calls to api.Data.GetDataBufferUsingFormula.  This provides flexibility and can improve performance because the Data Buffer is calculated once and the variable is re-used multiple times.

Example

Dim myDataBuffer As DataBuffer = api.Data.GetDataBufferUsingFormula (“A#Sales-A#Costs”)
api.Data.FormulaVariables.SetDataBufferVariable(“myDataBuffer”,myDataBuffer,False)
api.Data.Calculate(“A#Profit=A#5000 + $myDataBuffer

Use api.Data.FormulaVariables.SetDataBufferVariable to name the data buffer.  Pass in any name followed by the data buffer variable.  Enter a True/False value for Uses Indexes to Optimize Repeat Filtering.  Using True will re-use the same data buffer using FilterMembers and improve performance.  After naming the data buffer, use a dollar sign and the name when referencing it in a script.

FilterMembers

Use this inside of an api.Data.Calculate or api.Data.GetDataBufferUsingFormula script.

Example

Dim myDataBuffer As DataBuffer
Api.Data.GetDataBufferUsingFormula(“FilterMembers(A#All,A#6000,[A#[3600].Base])”)

Change a data buffer and only include numbers for the specified Dimensions.  The first parameter is the starting data buffer.  This can be a variable name or an entire math equation in parentheses.  There can be as many parameters as needed to specify Member Filters and different Member Filters can be used for multiple Dimension types.  The resulting filtered data buffer will only contain numbers that match the Members in the filters.

RemoveMembers

This uses the same syntax as FilterMembers, but it takes the data cells away for the specified Members instead of keeping them.

Retrieving Member Names from IDs

This retrieves the Member names from the IDs when looping over the cells in a data buffer.

Example

For Each sourceCell As DataBufferCell In myDataBuffer.DataBufferCells.Values
     Dim accountName As String = sourceCell.DataBufferCellPk.GetAccountName(api)
     Dim ud1Name As String = sourceCell.DataBufferCellPk.GetUD1Name(api)
     If ud1Name = "None" Then BRApi.ErrorLog.LogMessage(si, "UD1"& ud1Name, Nothing)
Next

Logging Contents of a Data Buffer

Log the contents of a Data Buffer to the Error Log when writing Business Rules in order to make corrections and troubleshoot along the way.

Example

myDataBuffer.LogDataBuffer(api,”MyDataBufferOutput”,1000)

The third Parameters (1000) indicates the maximum number of cells to include in the log and displays what is in the data buffer.

Example api

api.LogMessage(XFErrorLevel.Information, "MyDataBuffer As a CSV String For Excel", myDataBuffer.GetCSVString(api, False, 1000))

The false Parameter specifies whether to include Member IDs in the output.  Member names are always included.

Remove Functions in Formulas

Remove Zeros

The RemoveZeros function evaluates a source data buffer and removes all cells where the amount is zero whether it is flagged as a NoData cell or not.  Therefore, it is not necessary to use both RemoveZeros and RemoveNoData together since RemoveZeros handles both situations. This can be identified on individual cells as the Cell Amount under Cell Status.

This function is important to use for performance purposes.  Use the RemoveZeros function in calculations where there is a substantial amount of No Data or 0.00 cells in Data Units.  This can be determined by looking at the Data Unit Statistics when right-clicking on a cell in a Cube View.

Example using api.Data.Calculate:

'Run for base Entities and local currency only
    If ((Not api.Entity.HasChildren()) And (api.Cons.IsLocalCurrencyforEntity())) Then
    api.Data.Calculate("A#CashCalc=RemoveZeros(A#10000)")
End If

Example using GetDataBufferUsingFormula:

Remove NoData

The RemoveNoData function evaluates a source data buffer and removes data cells that have a cell amount of NoData.

This function is important to use for performance purposes.  Use the RemoveNoData function in calculations where there is a substantial number of cells with a Cell Status of NoData in Data Units.  This can be determined by looking at the Data Unit Statistics when right-clicking on a cell in a Cube View.

Example using api.Data.Calculate:

'Run for base Entities and local currency only
    If ((Not api.Entity.HasChildren()) And (api.Cons.IsLocalCurrencyforEntity())) Then
    api.Data.Calculate("A#CashCalc=RemoveNoData(A#10000)")
End If

Example using GetDataBufferUsingFormula:

Performance Note: In the calculation performance testing for a single Data Unit, the use of RemoveZeros and RemoveNoData using api.Data.Calculate and/or GetDataBufferUsingFormula rendered a significant performance advantage. This is testing the before and after calculation time of a single formula change for a Data Unit.  Times may vary from Data Unit to Data Unit and Application to Application.  However, the use of RemoveZeros and RemoveNoData is highly recommended in formulas where Cube and Dimensionality designs lend to sparse data models.  This is not limited to sparse data models as this can be identified in dense data models as well.

Dynamic Calc Using GetDataCell

A Dynamic Calc returns an Account value on demand without storing the data in the Cube. These Members cannot be referenced by other Members in calculating their values. Dynamic Calcs are best used in Members required for reporting only.  One ideal use is the GetDataCell function in ratio-style statistical Accounts (e.g. Current Ratio).

Return api.Data.GetDataCell("Divide(A#[CurrentAssets], A#[CurrentLiabilities]")

Dynamic Filters and Aliases

Create Dynamic Member Filters to assign to rows or columns within Cube Views. A common example of a Variance column that subtracts one Member from another is shown below. Adding the :Name(“Membername”) option at the end gives the ability to assign a display name to the header of the Cube View. The double quotes in the Name() function are optional.

Cube View Filter: GetDataCell(“Variance(T#POV,T#Prior12)”):Name("Variance")

Error Traps

Try
  if api.POV.Cons.name =api.POV.GetEntityCurrency() then
     api.Data.Calculate("A#Cash1=A#[Restricted Cash] + 70000")
  End If
catch ex as exception
api.LogError(ex)
End Try


Math Functions

Use the math functions built into VB.NET.
Examples:

Absolute Value - math.abs()

Rounding - math.round()

Several other supported math functions and examples are listed here:
http://msdn.microsoft.com/en-us/library/thc0a116%28v=VS.90%29.aspx

Member List Functions

When a Cube filter is run and the filter value does not match a Member, the system looks in all Business Rules for the MemberListProperty property to find a matching Member list name. Users should create MemberLists in Business Rules that are not assigned to Cubes because the entire Business Rule will be run if the system finds a matching Member list name.  Reference MemberLists like this: E#Root.PartnerList.

The following example first declares the two MemberListHeader names of Sample Member List and PartnerList. It then addresses each MemberList. Sample Member List shows a way to get the children of an Entity.  E#Texas.[Sample Member List] is just another way of saying E#Texas.Children. In the PartnerList example, E#Root.PartnerList will generate a list that includes Paris and Nice.

Case Is = FinanceFunctionType.MemberListHeaders
‘ Additional logic that defines the names of the two custom Member Lists
   Dim myMemberListHeaders = New List(Of MemberListHeader)myMemberListHeaders.Add(new
   MemberListHeader("Sample Member List"))myMemberListHeaders.Add(new
   MemberListHeader("PartnerList"))
Return myMemberListHeaders

Case Is = FinanceFunctionType.MemberList
   If args.MemberListArgs.MemberListName = "Sample Member List" Then
           Dim myMemberListHeader = new MemberListHeader(args.MemberListArgs.MemberListName)
           Dim myMembers = new List(Of Member)()
           Dim myMemberList = New MemberList(myMemberListHeader,
           myMembers)myMembers.AddRange(api.Members.GetChildren(args.MemberListArgs.DimPk,
          args.MemberListArgs.TopMember.MemberPk.MemberId,args.MemberListArgs.DimDisplayOptions))
          Return myMemberList
   Else If args.MemberListArgs.MemberListName = "PartnerList" Then
          Dim myMemberListHeader = new MemberListHeader(args.MemberListArgs.MemberListName)
		Dim myMembers = new List(Of Member)()
          Dim myMemberList = New MemberList(myMemberListHeader, myMembers)
         myMembers.AddRange(api.Members.GetBaseMembers(args.MemberListArgs.DimPk,
         api.Members.GetMember(args.MemberListArgs.DimPk.dimtypeid,"Paris").Memberpk.Memberid,
         args.MemberListArgs.DimDisplayOptions))
         myMembers.AddRange(api.Members.GetBaseMembers(args.MemberListArgs.DimPk,
         api.Members.GetMember(args.MemberListArgs.DimPk.dimtypeid,"Nice").Memberpk.Memberid,
         args.MemberListArgs.DimDisplayOptions))
         Return myMemberList
End If


POV Object

In Business Rules, only Data Unit Dimensions are valid in the POV object, not Account or User Defined Members, so the code below only works in Business Rules:

 Dim AcctID as Integer=api.POV.Account.MemberPk.MemberID

Dim AcctID as Integer=api.POV.GetDataCellPk.AccountID

Retrieve Time Varying Property of Relationship’s % Consolidated Entity Attribute

'Get Entity ID, Parent Entity ID, Scenario ID, Scenario Type ID and Time ID
dim EntityID as integer= api.POV.Entity.Memberpk.Memberid
dim ParentID as integer= api.POV.Parent.Memberpk.Memberid
dim ScenarioID as integer=api.POV.Scenario.Memberpk.Memberid
dim ScenarioTypeID as integer = api.Scenario.GetScenarioType(ScenarioID).id
dim TimeID as integer = api.Time.GetIdFromName("2013M1")
'Get time varying node % consolidation property value for current Scenario POV and 2013M1
dim myDecimal as decimal= api.Entity.PercentConsolidation(EntityId, ParentId, ScenarioTypeId, TimeId)
'Log the time varying property
api.logerror(xfErrorLevel.Information,myDecimal & " " & api.POV.Entity.name & "." & api.POV.Parent.name)

TIP: API.POV.Parent object is only relevant for relationship level Consolidation Members

SetDataCell

Use this to set a value equal to another value. Any dimensions listed on the right side must have a member specified. You don't need to have all dimension on the right side but if they are not specified, the current POV is used.

api.Data.SetDataCell(Memberscript, amount, isNoData)
api.Data.SetDataCell("A#[Restricted Cash]:O#Forms:F#None:IC#None:U1#None:U2#None:U3#None:U4#None:
	U5#None:U6#None:U7#None:
	U8#None", 50, False)

Translate

The api.data.translate function is the same as api.data.calculate, but aggregates AdjInput data into the AdjConsolidated Member.

'GetParentCurrency only returns a value when running a translate.
If api.Parameters.FunctionType = FinanceFunctionType.Translate Then if api.POV.Cons.Name =
   api.POV.GetParentCurrency.Name Then
   api.Data.Translate("A#[Restricted Cash]=A#[Restricted Cash]:C#[USD]*10")end if
End If

Unbalanced Math

The Unbalanced math functions are required when performing math with two Data Buffers where the second Data Buffer needs to specify additional dimensionality.  The term Unbalanced is used because the script for the second Data Buffer can represent a different set of Dimensions from the other Data Buffer in the api.Data.Calculate text.  These functions prevent data explosion.

In the examples below, the first two parameters represent the first and second Data Buffers on which to perform the function.  The third parameter represents the Members to use from the second Data Buffer when performing math with every intersection in the first Data Buffer.  The math favors the intersections in the first Data Buffer without creating additional intersections.

It is key that the dimensionality of the Target (left side of the equation) matches the dimensionality of the first data buffer on the right side of the equation (argument 1).

AddUnbalanced

api.Data.Calculate("A#TargetAccount = AddUnbalanced(A#OperatingSales, A#DriverAccount:U2#Global,
	U2#Global)")

SubtractUnbalanced

api.Data.Calculate("A#TargetAccount = SubtractUnbalanced(A#OperatingSales, A#DriverAccount:U2#Global,
	U2#Global)")

DivideUnbalanced

api.Data.Calculate("A#TargetAccount =DivideUnbalanced (A#OperatingSales, A#DriverAccount:U2#Global,
	U2#Global)")

MultiplyUnbalanced

api.Data.Calculate("A#TargetAccount =MultiplyUnbalanced (A#OperatingSales, A#DriverAccount:U2#Global,
	U2#Global)")

Consider this example.  A#OperatingSales has 100 stored records in January for a single Entity.

Because A#OperatingSales has a total of 100 stored values, A#TargetAccount will end up with 100 stored numbers and the amounts would be the values from A#OperatingSales plus/minus/multiplied/divided by whatever was found at A#DriverAccount:U2#Global for each of those 100 intersections.

This means that if there was no data in A#OperatingSales:U2#Widgets, then even though the UD2 Dimension is unspecified in the target and in the first Data Buffer expression, no record would be created, hence avoiding data explosion.  The most common use case would be applying a driver for some of the Dimensions.

ConvertUnbalanced

This function is related to the Unbalanced Math functions (see Unbalanced Math later in this section) and used to convert a data buffer so that it is balanced with an api.Data.Calculate script where unbalanced math does not apply.  This is necessary when using an api.Data.GetDataBufferUsingFormula to calculate a data buffer where the script was not balanced to match a formula in another script where a data buffer variable needs to be used.

In the example below, a myDataBuffer was created to have data for all stored accounts, but the subsequent api.Data.Calculate scripts expects each operand to use a specific account.  The ConvertUnbalanced function filters the data buffer to only include the specified account name and it also converts the data buffer to make it balanced and consistent with the destination.  The same data buffer can be re-used multiple times.

Example

Dim myDataBuffer As DataBuffer = api.Data.GetDataBufferUsingFormula("A#All")
api.Data.FormulaVariables.SetDataBufferVariable("myDataBuffer ", myDataBuffer, True)
api.Data.Calculate("A#6050 = ConvertUnbalanced($myDataBuffer, A#6000) +
ConvertUnbalanced($myDataBuffer, A#3000)")

Finance Function Types

Use Finance Function Types, except for Custom Calculate, to run logic in certain calculation sequences during the calculation sequence while a Function Type is in process. There are thirteen Function Types:

Calculate

Additional logic during calculation of Entity, Consolidation Scenario and Time.  This sets the value of one or more values (left side of Formula) equal to another (right side). It then executes a calculation for a specifically qualified Point of View.  This is the most common function used.

There are situations where the Entity being processed must access another Entity’s data.  In situations involving pulling Consolidation dimension Elimination results from other Entities as siblings, the multi-thread processing of the calculations requires an additional function to ensure the calculations are complete. Below is an example of this sibling relationship. The Entities Base1, Base2, etc. are siblings that would be calculated simultaneously during a consolidation:

For this purpose, the Calculate Finance Function Type supports the argument IsSecondPassEliminationCalc.

During the Calculate process, this function allows Business Rules to execute after the Sibling Entities have calculated results to the Consolidation Elimination member.  Below is a reference to the Consolidation dimension:

Once all the sibling Entity members are calculated to Elimination, the Business Rules within the IsSecondPassEliminationCalc will be executed.

Translate

Additional logic that uses custom translation.

FXRate

Custom logic used to determine Foreign Exchange rates for any intersection.

Consolidate Share

Additional logic used during the custom calculation of the Share Member.

Consolidate Elimination

Additional logic used during the custom calculation of the Elimination Member.

Custom Calculate

A CustomCalculate Finance Function Type can be used in order to execute a single year custom calculation via a Dashboard Parameter Component Server Task Action.  This is considered a partial calculation and does not store the calculated data or run the calculation during a consolidation.  Running a custom calculation from a Dashboard will impact calculation status for the affected data unit even if the data does not change.   See Parameter Components in Presenting Data With Books, Cube Views and Dashboards for more details on how to assign this type of Finance Rule to a Dashboard. See Data Management for details on creating this type of Data Management Step. See Parameter Components for more information on passing arguments to a Custom Calculate function.

Example:

Select Case api.FunctionType
  Case Is = FinanceFunctionType.CustomCalculate
If args.CustomCalculateArgs.FunctionName.XFEqualsIgnoreCase("FunctionName") Then
Me.CalcTest(si, globals, api, args)
api.Data.Calculate("A#TFS2903 = A#10000 + A#69000)
End If
End Select

Calculation Drill Down Member Formula

Provides custom drill down results.

Conditional Input Rule

Conditional Input Rules make data cells read-only.  While the settings for this can be done directly on the Cube, using a Conditional Input Business Rule offers more flexibility and still allows the use of the Cube settings.  This rule can return the following: ConditionalInputResultType.Default, ConditionalInputResultType.NoInput, ConditionalInputResultType.NoInputAllowCellDetail, and ConditionalInputResultType.NoCellDetailAllowInput.

The following Business Rule example will make all cells for the Account 6000 read-only.  This should be added to a Business Rule attached to a Cube.

Case Is = FinanceFunctionType.ConditionalInput
    If api.Pov.Account.Name.XFEqualsIgnoreCase("6000") Then
        Return ConditionalInputResultType.NoInput
    End If
    Return ConditionalInputResultType.Default

Confirmation Rule

Special logic that runs with Confirmation Rules.

Data Cell

Named GetDataCell calculations that can be reused such as a Better/Worse calculation in Cube Views.

Dynamic Calc Account

Special logic to use in Dynamic Calc members.

Member List and Member List Headers

A custom list of members for use in Cube Views and other areas.  See Commonly Used Member Filter Functions in Cubes for more details on using custom lists in a Cube View.

Select Case api.FunctionType is the expression used when a certain process needs to be isolated and run special logic.  See examples below:

Select Case api.FunctionType
Case Is = FinanceFunctionType.Calculate
    ‘ Additional logic to run with every calculation.
   api.Data.Calculate("A#DACash1= A#Cash4 + 1")
    api.Data.Calculate("A#2150:F#Movement = V#Periodic:A#5750:F#None") if api.metaData.Cons.name ="USD"
	then
    api.Data.Calculate("A#Cash1=A#[Restricted Cash]")
End If
Case Is = FinanceFunctionType.Translate
   ‘ Additional logic to run with every translation. If api.ExecuteDefaultTranslation is not
   included, then the standard translation process will not run.
    api.ExecuteDefaultTranslation
    dim Cubeid as integer = api.Cubes.GetCubeInfo("GolfStream").Cube.Cubeid

dim fxRule as fxRuleType=api.Cubes.GetFxRuleTypeForAssetLiability(CubeId)

api.Data.Translate("A#[Restricted Cash]:C#[USD]","A#[Restricted Cash]",fxRule,.5)
Case Is = FinanceFunctionType.ConsolidateShare then
    ‘ Additional logic to run when the Share Member of the Consolidation Dimension is being calculated.
    api.ExecuteDefaultShare()
    api.data.calculate("A#[Restricted Cash]=A#[Restricted Cash]*.8")
    Case Is = FinanceFunctionType.ConsolidateElimination then
    ‘ Additional logic to run while the Elimination Member of the Consolidation Dimension is being
	calculated.
    api.ExecuteDefaultElimination
    api.Data.Calculate("A#[IC AR]=A#[IC AR] * 1.1")
Case Is = FinanceFunctionType.MemberListHeaders
    ‘ Additional logic that defines the names of custom Member Lists
    Dim myMemberListHeaders = New List(Of MemberListHeader)myMemberListHeaders.Add(new MemberListHeader
("Sample Member List"))

    Return myMemberListHeaders
Case Is = FinanceFunctionType.MemberList
    ‘ Additional logic that defines the Members within custom Member List that are included in Business
	Rules.

 See the “MemberList Functions” section in the proceeding pages.
    'Example: "A#Root.[Sample MemberList]"
    If args.MemberListArgs.MemberListName = "Sample Member List" Then Dim myMemberListHeader =

new MemberListHeader(args.MemberListArgs.MemberListName)
    Dim myMembers = new List(Of Member)()
    Dim myMemberList = New MemberList(myMemberListHeader, myMembers)myMembers.AddRange(api.Members.
	GetChildren
(args.MemberListArgs.DimPk,

args.MemberListArgs.TopMember.MemberPk.MemberId,args.MemberListArgs.DimDisplayOptions))
Return myMemberList
End If
End Select

Ultimate Ownership

This function calculates and stores Ultimate Ownership results for every ancestor/child Entity relationship.  The current Entity being calculated is the ancestor Entity, and when storing the results, the Members in the Intercompany Dimension are used to represent each descendant Entity.  This function assumes the source Direct Ownership numbers are weights and are typically entered by a user (e.g., numbers between 0.0 and 1.0).

C#OwnerPreAdj:O#AdjInput is using an account that does not consolidate and accepts manual entry for adjustments in those Parent/Child relationships.  It cascades the user-entered amounts up the Entity tree and multiplies them when a Parent owns part of a Child and that Child owns part of a Grandchild.

sourceDirectOwnershipMemberscript represents the data cells where the user-entered Direct Ownership amounts are found for Parent/Child Entity combinations.

destUltimateOwnershipMemberscript represents the intersection for the resulting calculations. All results are stored using the current Data Unit being calculated.

This function is intended to run only for the Entity's Local Consolidation Member, and it uses IC Members to store the results for each descendant Entity.

Example: Use the following as a Member Formula in the UltimateOwnership account:

If api.Cons.IsLocalCurrencyForEntity() Then
api.Data.CalculateUltimateOwnership("C#OwnerPreAdj:A#DirectOwnership:O#AdjInput",
	"A#UltimateOwnership:O#Forms", 1.0)
End If

Here are the steps to set up Ownership entry and calculations in an application. This functionality is intended to be used in a separate Control Cube accessed via the main Financial Cube:

Create Two Accounts

DirectOwnership

This is for the user to enter Direct Ownership for each Parent/Child Entity combination.
AccountType = BalanceRecurring, IsConsolidated = False, Adjustment Type = Data Entry

UltimateOwnership

This stores the calculated results in Parent Entities using IC Members for every descendant Entity.
AccountType = BalanceRecurring, FormulaType = Formula Pass 1, Allow Input = False,
IsConsolidated = False, Is IC Account = Conditional

Formula:

If api.Cons.IsLocalCurrencyForEntity() Then
api.Data.CalculateUltimateOwnership("C#OwnerPreAdj:A#DirectOwnership:O#AdjInput",
	"A#UltimateOwnership:O#Forms", 1.0)
End If

Create a Cube View for entering Direct Ownership Amounts

Cube View POV
Consolidation = OwnerPreAdj, Origin = AdjInput, Flow, IC and UDs = None

Column
A#DirectOwnership

Row
E#Root.TreeDescendants

Create a Cube View for Running a Consolidation and Viewing the Ultimate Ownership Results

Cube View POV
Consolidation = Local, Account = UltimateOwnership, Origin = Forms, Flow IC and UDs = None

Column
IC#ICEntities.Base

Row
E#Root.TreeDescendants

Consolidation

Consolidation is the process of taking base level Entities and aggregating them up a hierarchy to their Parent.  The hierarchy and add efficiencies where applicable, meaning some siblings may be able to run in parallel when they are processed. Calculations and translations are also run during this process.

Consolidations can be launched from the Process step in Workflow, Cube Views or Forms. By triggering a consolidation, the existing POV is run for that time period and is consolidated for the respective period along with any of the prior periods for that year. For example, if a consolidation is triggered for June, it will consolidate January through June.

The following chart explains how the Consolidation Dimension works.

Example of a Consolidation

Launching a Consolidation

In Workflow Profiles, set up Calculation Definitions to process the appropriate calculation, translation, or consolidation type. Right-click on the appropriate cell in a Cube View or Form to view Process options:

Calculate

Runs calculations at the Entity level within the Local Member of the Consolidation Dimension without translating or consolidating.

Calculate

Force Calculate

Calculate with Logging

Force Calculate with Logging

Translate

Runs the Calculate step above at the Entity and then translates data within the Translated Member of the Consolidation Dimension for each applicable Relationship.

Translate

Force Translate

Translate with Logging

Force Translate with Logging

Consolidate

Runs the Calculate and Translate steps and then completes the calculations required all the way up the Consolidation Dimension.

Consolidate

Force Consolidate

Consolidate with Logging

Force Consolidate with Logging

Force menu items such as Force Consolidate will run as if every cell included is marked as requiring calculation, translation or consolidation.

Consolidate and Force Consolidate check and determine a Parent Member’s calculation status and all children of the Parent before consolidating any data.  The difference is Consolidate checks Calculation Status, and if the status is OK, it accepts it and continues the consolidation process.  Force Consolidate runs as if every Member needs to be consolidated regardless of its actual Calculation Status and does not bother querying Calculation Status.  While they both perform optimally, there are some cases where one performs better than the other.  See the examples below to learn more about when to use Force Consolidate vs. Consolidate.

Calculation Status State 1: Actual Scenario, Loading for December

In this case Consolidate will perform better than Force Consolidate because every month prior to December has an OK Calculation Status. This means the data for that month has not changed since the last consolidation and only the month of December needs to be consolidated. If a Force Consolidate was used, every calculation would be performed again whether it is necessary or not, therefore taking longer in the consolidation process.

Calculation Status State 2: Plan Scenario, Loading for 12 Months

In this case, Force Consolidate will perform better than Consolidate because every month needs to be consolidated.  If a Consolidate was used, the system would needlessly check each Calculation Status before calculating each period.  A Force Consolidate will calculate all periods regardless. See Calculation Status for details on the status codes.

NOTE: Forced calculations that run on base entities from open periods will not impact the status of Parent Entities for closed periods if the data is in an OK state. If a metadata change occurred and entities are in an OK, MC state, all periods and entities will recalculate, regardless of Workflow Open/Close state.

The Logging items (such as Force Translation with Logging) trigger additional detailed logging which can be viewed in the Task Activity area. Drill into a log to see the length of time and details about every calculation. A progress window displays Consolidations.

Calculation Status

If the existing data set for a POV changes, the calculation status is updated accordingly. A timestamp table is used, and servers are synchronized to ensure the calculation status is always accurate.

To explore calculation status, build a Cube View where the View Member in the Point of View is set to CS, the columns are the time periods, and the rows are set to the desired Entity structure. For example:

These status codes indicate what action to perform:

• OK: The data for this intersection has not changed since the last calculation.

• OK, NA: Calculation not required. No data.

• OK, MC: The intersection was calculated but metadata changed due to modifications to artifacts such as Business Rules associated with this Cube, formulas and FX rates. This is a clue that if the calculation is run again, the results may not be the same.

• CA: Calculate data since an import was run or data was entered.

• TR: Translate.

• CN: Consolidate because data for a child Entity has changed.

• CA, CN: Calculate and consolidate.

• CA, TR: Calculate and translate.

• TR, CN: Translate and consolidate.

• CA, TR, CN: Calculate, translate and consolidate.

Currency Translation

Currency can be converted from one currency to another. This process utilizes the defined FX Rates in the FX Rates portion of the product. See Foreign Exchange Rates in Cubes for additional details.

The base Entity can be converted to the Parent Entity’s currency if required. The currency translation is run as needed based on the configuration of the Parent / child currencies as stored in the Entity Dimension. This feature can be run independently of a consolidation if required. Right-click in the appropriate cell and the translation option will display.

The Consolidation Dimension is shown above.  For example, if an Entity’s currency is Euro, and data is written to the EUR Member, that value is also displayed in the Local Member. The Local Member is a pointer to the appropriate local currency Member where the data is stored. If that European Entity in the screen shot above is consolidated to a company in the UK that has GBP as their Currency setting under Entities, when the European Entity is consolidated into the UK Parent, the European Entity’s Translated Member will reference the translated value which is stored under the GBP Member under Currencies.

Calculation Status determines when data was entered.  If the Local currency’s Calculation Status is CA because the data has not been calculated yet, then the foreign currencies would also need to be translated and calculated resulting in a TR calc status.  If a calculation is done on the Local Currency in order to make its calc status OK, the foreign currencies are still going to be TR because that data has not been translated or calculated yet.  Also, if a foreign currency has an OK calculation status, and a foreign currency journal is entered, that currency then becomes TR.

How the Origin Dimension Works with the Consolidation Dimension

The Origin and Consolidation Dimensions are separate but work well together. Origin primarily calls out how a number originated. This section explains how each Member of the Origin Dimension interacts with Members of the Consolidation Dimension.

The consolidation process starts at Local, which is the same data as one of the currencies under the Currencies Member (based on the Entity’s default currency setting).  If the Entity is base-level, the data can be loaded into the Local Consolidation Member using the Import Origin Member, and data can be typed into the Local Consolidation Member using the Forms Origin Member.  If it is a Parent Entity, the Local Consolidation Member is read only (except for Journals) as it represents data that has been rolled up from child Entities (using the Import, Forms, and the AdjConsolidated Origin Members).

Regardless of whether the Entity is base-level or a Parent, Journals can be entered using the Local, Translated, OwnerPreAdj, OwnerPostAdj, and Any Currency Consolidation Member.  For all the Consolidation Members, Journals are always posted to the AdjInput Origin Member.  As data is rolled up from child Entities into a Parent Entity during the consolidation process, the AdjConsolidated Origin Member will contain the combined values from the child Entities’ Journals.

Imports and Forms

When data is imported through Workflow to the Data Stage, it is happening through the Import Member in the Origin Dimension. When data is entered in web or Excel Forms, it is happening in the Forms Member in the Origin Dimension (with one exception discussed under Adjustments).  The Import and Forms Members are coupled with the Local Member of the Consolidation Dimension.

Consolidation Dimension                         Origin Dimension

Adjustments

Adjustments are created either through Journal entries, or in special instances, through Forms that do their input as a Journal would. Both do their input into the AdjInput Member of the Origin Dimension. Adjustments can be made to the following Members of the Consolidation Dimension: Local, Translated, OwnerPreAdj and OwnerPostAdj.

When a consolidation is run, the AdjInput entries in child Entities are consolidated into the AdjConsolidated Members in the Parent.

Users can drill down into the Adjustments Member in a Parent to show adjustments made in both the Parent and child Entities.

Consolidation Dimension                           Origin Dimension

Eliminations

When eliminations are calculated, the Elimination Member of both the Consolidation and Origin Dimensions is updated. The primary purpose of the Elimination Member within the Origin Dimension is to allow visibility from the top down without those figures getting lost during the consolidation process.

Users can drill down into the O#Elimination Member in a Parent to show the elimination entries made in both the Parent and child Entities.

Consolidation Dimension                                    Origin Dimension

Intercompany Elimination

Intercompany Elimination is the process of cancelling out account balances for intercompany partners for intercompany accounts with any unresolved balance being placed in a Plug Account.

The Entity structure above belongs to GolfStream, a fictitious golf manufacturer. If the Detroit Entity sold golf club shafts to Monterey who assembles the final club product, this would be an intercompany transaction. The following prerequisites must exist for the transaction to eliminate.

• Monterey and Detroit must have there Is IC Entity property set to True.

• The Accounts Intercompany Receivables and Intercompany Payables must be set with the Is IC Account property set to True and the Plug Account pointed to a third account.

• The intercompany entries must properly note the intercompany partner in the IC Dimension Member. For example, Detroit would book an entry to Intercompany Receivables and the IC Member for that entry would be Monterey.

Intercompany Eliminations occur once the values roll up to a common Parent. As the consolidation begins, Detroit consolidates its values to Michigan and Monterey consolidates its values to California. An elimination does not occur because they have not yet consolidated their values to a common Parent. The elimination occurs when Michigan and California are consolidated into the US common Parent. The two intercompany values will be eliminated at this level with any discrepancies being posted to the Plug Account.

In another example in Workflow, Houston Heights and South Houston trade with Carlsbad, Dallas, and Montreal. In the screen shot below, South Houston is shown in green because it is balanced within an acceptable tolerance of $1. The $0.59 discrepancy is booked to the related Plug Account.

Houston Heights is shown in red because there is a $229.51 discrepancy. Details on the discrepancy are shown in the lower part of the screen. Houston Heights’ discrepancy with Montreal is shown at the bottom in the application reporting currency (USD), Houston Heights’ currency (USD), and the partner currency for Montreal (CAD). Through the right click menu, leave a status and description that each partner can see. As these values roll up the Entity structure, the Parent Entities can also see this detail.

See Workflow Profiles in Workflow for more details on how to set up Intercompany Matching via Workflow.

NOTE: Using Extensible Dimensionality to extend Accounts used within the Intercompany Matching process is not a recommended practice.

Direct and Indirect Eliminations

The Origin Dimension contains the Direct and Indirect members to simplify reporting on Eliminations.  The Direct member returns the results of Eliminations that occur from transactions, removing the direct children of a parent Entity. Indirect returns the total Eliminations that occurred outside the direct children of aparent Entity.

In the example, transactions that occurred between the HQ2 Entities eliminate at HQ2.  Transactions between members of HQ1 and HQ2, such as a transaction between Paris and Hartford, eliminate at the first common parent, Total Company.

Reporting on the results at the Total Company level, Direct returns results that occurred between the HQ1 and HQ2 groups. Indirect at Total Company would allow reporting on eliminations outside its direct children, HQ2 eliminations.

Custom Consolidation

If the standard consolidation or translation logic does not meet your project requirements, deploy custom Business Rules. The first step in this process is defining the Cube’s properties settings. See Cubes in Calculation section for Consolidation Algorithm Type and Translation Algorithm Type settings. The default setting is Standard but you can change this to Custom for additional flexibility.

Next, write a Finance Business Rule. See:

• Application Tools in the Business Rule section on applying Business Rule logic by Finance Function Type to discover what you can customize.

• Formulas for common customizations.

• The API Overview Guide.

Reference the Finance Business Rule under any of the Business Rule 1-8 properties for each Cube on which to use the logic. Also see Data Unit Calculation Sequences (DUCS).

Equity Pickup

OneStream supports Equity Pickup calculations using three different properties located under the Entity’s settings all of which can vary by Scenario Type.  These settings were designed to implement Equity Pickup using normal Business Rules and formulas.

See Entity Dimension in Cubes for definitions of each setting.

Equity Pickup Example

The Entity hierarchy example below illustrates how Equity Pickup works in OneStream and discusses how each Entity’s currency and Equity Pickup settings affect calculation and consolidation.

• Clubs (USD)

• Holding (EUR)

• Houston (USD)

• Carlsbad (USD)

• Frankfurt (EUR)

In the example above, the formulas for Holding need to read calculated data from the other sibling Entities.  Therefore, the Sibling Consolidation Pass property for Holding would be set to Pass 2 causing calculation to occur on all the other sibling Entities before the Holding Entity is calculated.  This allows the formulas for Holding to correctly read calculated data from Houston, Carlsbad, and Frankfurt.  For Entities not involved in Equity Pickup, the (Use Default), or Pass 1 settings for Sibling Consolidation Pass causes all sibling Entities to be calculated at the same time.

Holding is using a different local currency than its Parent Clubs, but only wants to read data using the EUR currency.  In this situation, the Auto Translation Currencies setting for Houston and Carlsbad needs to be set to EUR in order to have them automatically translate to EUR when Clubs is consolidated.  Normally, all the sibling Entities translate to the Parent Entity’s local currency, which in this case is USD, however this setting tells the engine to translate Houston and Carlsbad to EUR as well during the consolidation.  Once the consolidation is complete, Holding’s formulas, which are calculated in Pass 2, can read data from E#Houston:C#EUR, E#Carlsbad:C#EUR, and E#Frankfurt:C#EUR.

Sibling Repeat Calculation Pass is designed for circular ownership and may not be used as often as the other Equity Pickup settings.  If this is used, it causes the Entity’s calculation to be repeated after all the Sibling Calculation Passes have been completed.  For example, if there was another Entity in the structure above named Holding2, it would be set to use a Sibling Calculation Pass of Pass 3.  This would cause its normal calculation to occur after Holding and allow Holding2 to read calculated data from Holding.  Holding could also use a Sibling Repeat Calculation Pass causing it to be recalculated.  In that repeat calculation, Holding could then read calculated data from Holding2 resulting in circular ownership.  When writing formulas, use api.Args.CalculateArgs.HasRepeatCalc and api.Args.CalculateArgs.IsRepeatCalc to determine if the engine is currently running the repeat calculation.

Entity Aggregation

Entity Aggregation provides the speed and flexibility required for Budgeting, Planning and Forecasting. Unlike consolidation processes, entity aggregation is simpler and faster because it does not roll up financial data - heavily driven by financial and accounting rules - to a parent level for reporting.

Consider this: "Consolidations are usually crafted to satisfy internal management and external regulatory agency reporting requirements. The most common, effective way to understand the core requirements of a consolidation system is to begin with the end in mind and look at the reports produced by the legacy (or current) system. These usually involve an Income Statement (Profit & Loss), a Balance Sheet, and a Cash Flow Statement” – OneStream Architect Factory

How Entity Aggregation Works

Entity Aggregation bypasses most statutory financial and accounting rules to quickly consolidate / aggregate data the entity dimension for fast, what if scenario modeling. Entity Aggregation uses the Entity and the Consolidation dimension (Aggregated member) to aggregate data with minimal rules.

For base level entities, the Aggregated member displays the data that is stored in the “Local” member.

For parent entities, the Aggregated member stores the results of the Entity Aggregation process that occurs on its children.

Aggregation Algorithm:

• Execute chart logic (business rules and member formulas) on the Local Consolidation member for all base entities.

• Execute these steps recursively for each Parent and its direct children, from lower-level entities to the parent entities:

  • For each child:

    • Translate stored data in memory.

    • Calculate the share amount in memory

  • Add the data cells from each child in memory.

  • Store the results in the Aggregated member for the parent entity.

Example of an Entity Aggregation

Aggregated Dimension

Example of Cube View Using C#Aggregated Dimension

• Rows

  • Entity: E#[North America].TreeDescendantsInclusive

• Columns

  • Consolidation: C#Aggregated, C#Aggregated:V#CalcStatus, C#Local, C#Local:V#CalcStatus

  • Time: T#2018M1, T#2018M12

Aggregate Jan 2018, by right-clicking on the number and pick Consolidate to Aggregate numbers. Context aware algorithms are used recognize the Aggregated member.

Notes:

• No Parent Journal Adjustments

• No Eliminations

• Business Rules (execute at the base level only)

• Select different Consolidation member (C#Aggregated) to run Consolidation on and pick the numbers that were loaded.

Launching an Aggregation

This is the same process as launching a Consolidation using context aware algorithms once the Aggregated member of the Consolidation (C#Aggregated) is selected. For example, right-click on the appropriate cell in a Cube View or Form to view the Process by clicking Consolidate.

Consolidate

• Consolidate

• Force Consolidate

• Consolidate with Logging

• Force Consolidate with Logging

Aggregate Jan 2018, by right-clicking on the number and picking Consolidate to Aggregate numbers. Context aware algorithms are used recognize the Aggregated member.

Entity Aggregation Input

Entity aggregation input lets you submit data for base member values through the aggregated member. Use the “Allow Input Into the Aggregated Consolidation Member” property to enable input. Values entered into an aggregated cell are saved to the respective local currency member (C#USD, C#CAD, and so forth).

IMPORTANT: Data entered through journals cannot be entered into the aggregated member.

This feature is available in versions 7.4 and higher.

Enable Entity Aggregation Input

You must first enable aggregation input on the scenario you are using. Perform the steps below or watch the video.

Enable entity aggregation input (1:47).

1. On the Application tab, click Dimensions.

2. Expand Scenario Dimensions.

3. Expand the appropriate dimension, then select Scenarios.

4. On the Members tab, expand Hierarchy and click on the aggregated member to select it.

5. Click the Member Properties tab.

6. Under Settings, set Allow Input into the Aggregated Consolidation Member to TRUE.

7. Click Save.

Working With Hybrid Scenarios

Hybrid scenario data improves query performance if you analyze smaller data sets from large data units that contain high volumes of account-level detail for a cube such as scenario and entity. This enhances query performance when:

• Different business units require smaller subsets of the data unit because they only need to report on specific accounts, cost centers, products and so on.

• Business processes require a higher level view of data for budget or planning.

In these cases, data is filtered to focus on business and consumption needs for more efficient data analysis.

Hybrid data uses data from a source scenario member and displays the results in a target scenario member. You may need multiple target scenarios based on how you use hybrid source data in your application.

For information about associated properties, see Hybrid Scenarios. Also see:

• Data Bindings

• Data Filters

• Share Data From the Source Scenario

• Copy Data From the Source Scenario

Data Bindings

Data bindings determine if data is shared or copied from the source scenario member to the target scenario member. Sharing data is best if you need to analyze smaller data sets from a large data unit.

The data results are dynamic and reference source data. This data is not stored to the target scenario and is read-only. Shared scenarios also share the source scenario’s calculation status and indicate source data changes. Standard calculations run from a shared scenario also run on the source scenario member.

Use Copy Data to compare ‘What If’ Scenarios, for budget versioning or forecasting. By default a data copy occurs if a standard calculation - associated with the following - is run on the target scenario:

• Cube view or Quick View grid

• Calculation definitions

• Calculate data management step

The Calculate Data Management Step offers more control over the hybrid source data process. Set ExecuteCopyAfterCalc Scenario to False and enable the copy execution on the Data Management Step. If enabled, calculations run on the scenario, but the data copy only occurs if the calculation runs from the Data Management Step.

Calculations follow the standard sequence and store the data as "calculated". If multiple calculations run, the previously calculated or copied data is cleared. To preserve existing data, set the data as "durable" on the target scenario.

Once the target scenario copy finishes, you can modify and adjust data, but the target scenario is still bound to the source. The data copy occurs whenever the scenario is calculated based on the scenario setup. Hybrid copies can be chained, so results in a target scenario can be used as the source in another.

Data Filters

Hybrid source data generates unique data views using different filters, so you can best focus your data modeling and analysis.

Pre-aggregated members provide a summarized source data view by defining the source parent members and target base members. Members are filtered before aggregation and cached in RAM. Then the smaller data set is brought in and Share or Copy the information over to the target accounts.

Share Data From the Source Scenario

1. Create a target scenario called Budget_Share.

2. Specify a Data Binding Type: Share Data from Source.

3. Select source scenario and data settings:

   • Source scenario: BudgetV2

   • Data binding ends in 2022

This shares the base accounts for Account 60999. Any zeros in the source data are removed.

Copy Data From the Source Scenario

1. Create a target scenario called BudWorking.

2. Specify a Data Binding Type: Copy Input Data from Source Scenario.

3. Select the source scenario and data settings:

   • Source scenario: Actual

   • Data binding ends in 2022

This copies the base accounts of Account 69000 and excludes Origin dimension members. Data is copied from the top of Origin in the source scenario to the Import member of Origin in the target scenario. The calculation occurs only if run from the Data Management Step, and the copied data is stored as durable.
